A PPLICATION E XAMPLES
2-3
Network Aggregation Plan
With 24 or 48 parallel bridging ports (i.e., 24 or 48 distinct collision
domains), a Gigabit switch stack can collapse a complex network down
into a single efficient bridged node, increasing overall bandwidth and
throughput.
In the figure below, the 10/100/1000BASE-T ports in a stack of 48-port
Gigabit Ethernet switches are providing 1000 Mbps connectivity through
stackable switches. In addition, the switches are also connecting several
servers at 10 Gbps.

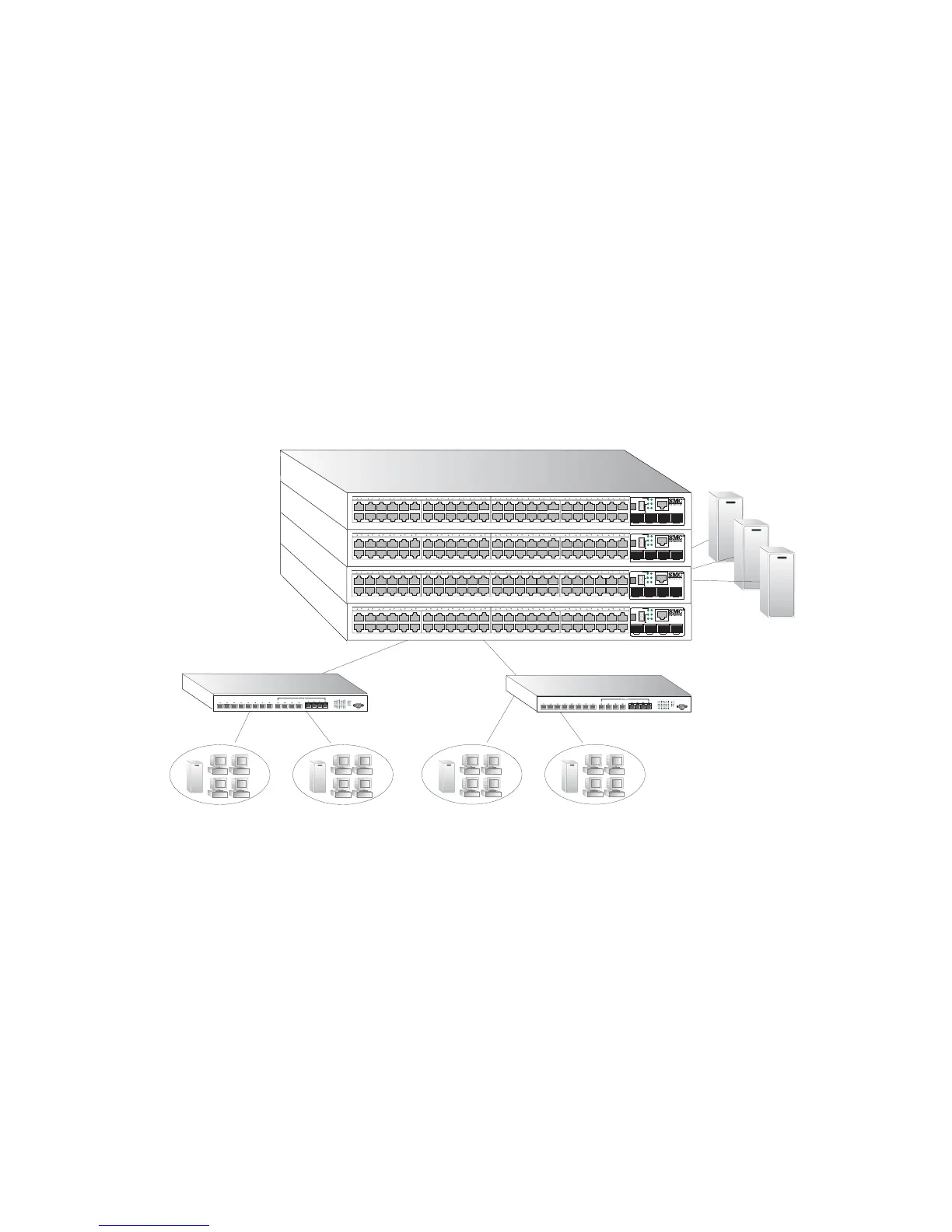

Figure 2-2 Network Aggregation Plan
