<Operation>
Press the or button in function selection mode to display [F 1].
Press the button. Move on to the check of output mode.
Press the button to set. Move on to setting of reversed output.
Press the button to set. Move on to setting of pressure.
Press the button to set. Move on to setting of hysteresis.
Press the button to set. Return to function selection mode.
[F 1] Setting of OUT1 complete.

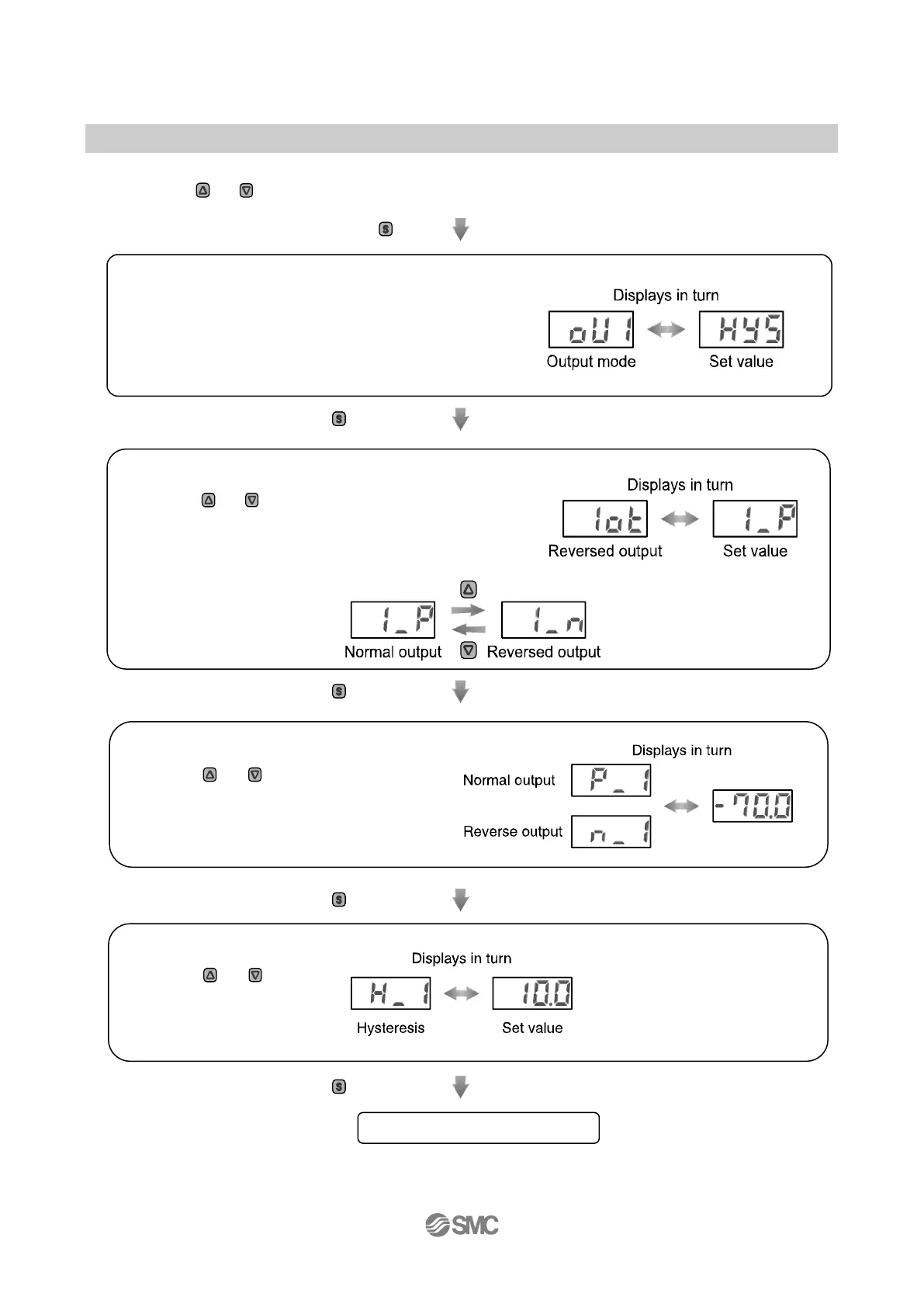

Check of output mode
Check the set value same as the display shown to the
right, then move on to next setting.
Setting of reversed output
Press the or button to select reversed
output.
Setting of pressure
Press the or button to
adjust pressure setting.
Setting of hysteresis
Press the or button to
select hysteresis.
