During the installation and when replacing a completely empty container of fluid, run the service
program (Prg.8) to load the fluid. The hose running from the container to the pump must be charged
to ensure that the product is batched properly in wash cycles.
5.3.2 Tank level sensors - OPTIONAL
The machine can be equipped with level sensors in the detergent and rinse aid intake hoses.
WARNING
The level sensors must be connected electrically to the terminal block on the inside of the rear strut
(there is a sensor connection for each peristaltic pump).
This must be done by a technician authorised to do so by Smeg.

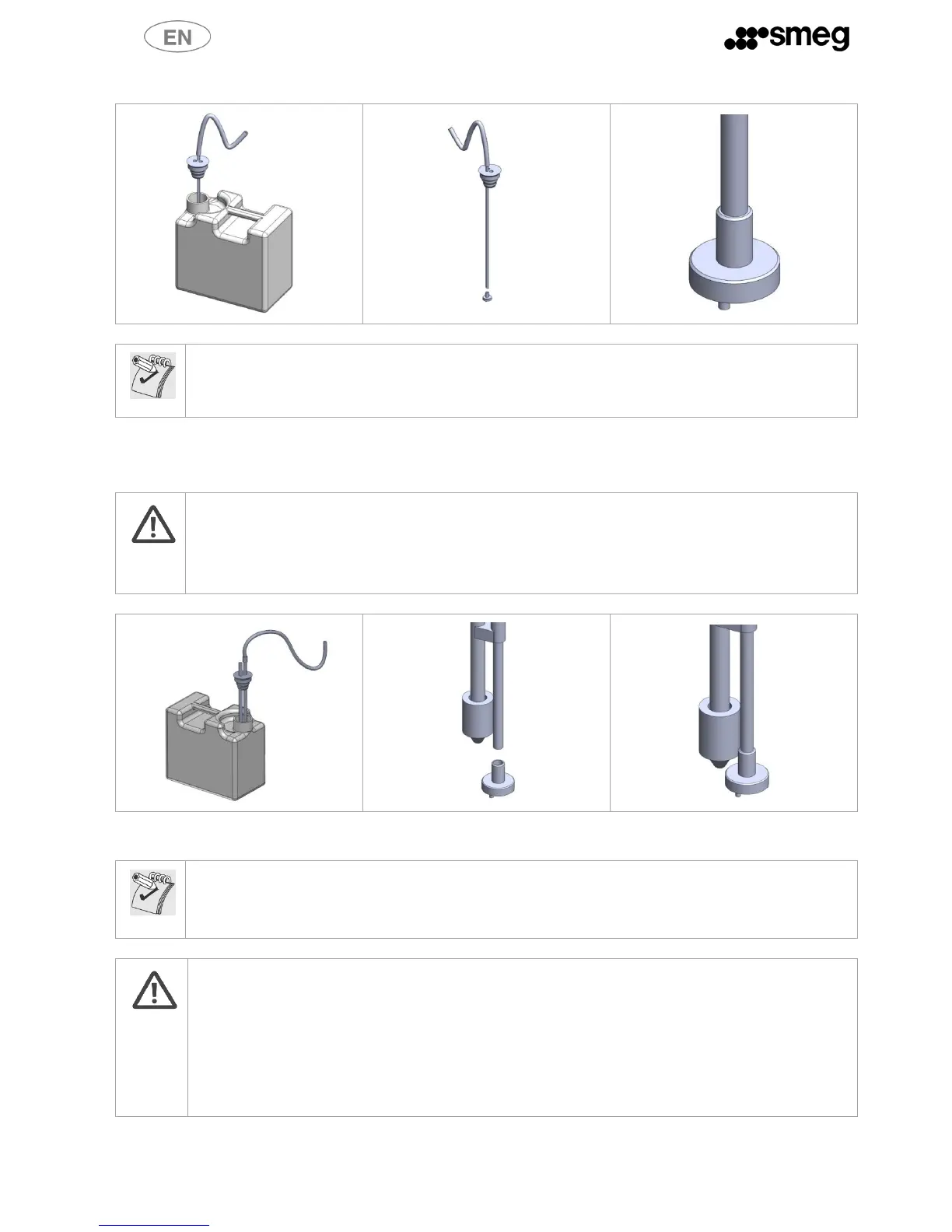

fig. 11 – Configuration with LEVEL SENSOR: Detergent intake nozzle with integrated level sensor. The intake nozzle is fitted with a filter; make sure this is
always properly located to prevent lumps being drawn up.
ATTENTION
If the level sensors are not present, check the container level regularly so as not to run cycles
without detergent or rinse aid.
WARNING
It is essential that the label on the intake hose match the type of chemical product in use.
Connection errors, which lead to the mixture of diverse chemical products in the intake circuit can
irremediably damage the circuit and void the warranty for the parts in question (peristaltic pumps,
detergent suction and delivery circuit)
The intake hose is supplied with an intake filter. The filter is secured to the hose with a light
interference fit. Make sure the filter is present and properly located to ensure that the detergent
intake system can operate properly.
