4
INSTALLATION WITH BASE
If the appliance is installed on a base which raises it off the ground (e.g. the Smeg B6040), of height HB (height
of base), all height dimensions relative to ground level indicated in this document must be increased by the
said amount HB.
HMi = Hi + HB
Where:
Hi = generic height indicated in document
HB = height of base
HMi = height of dishwasher including base

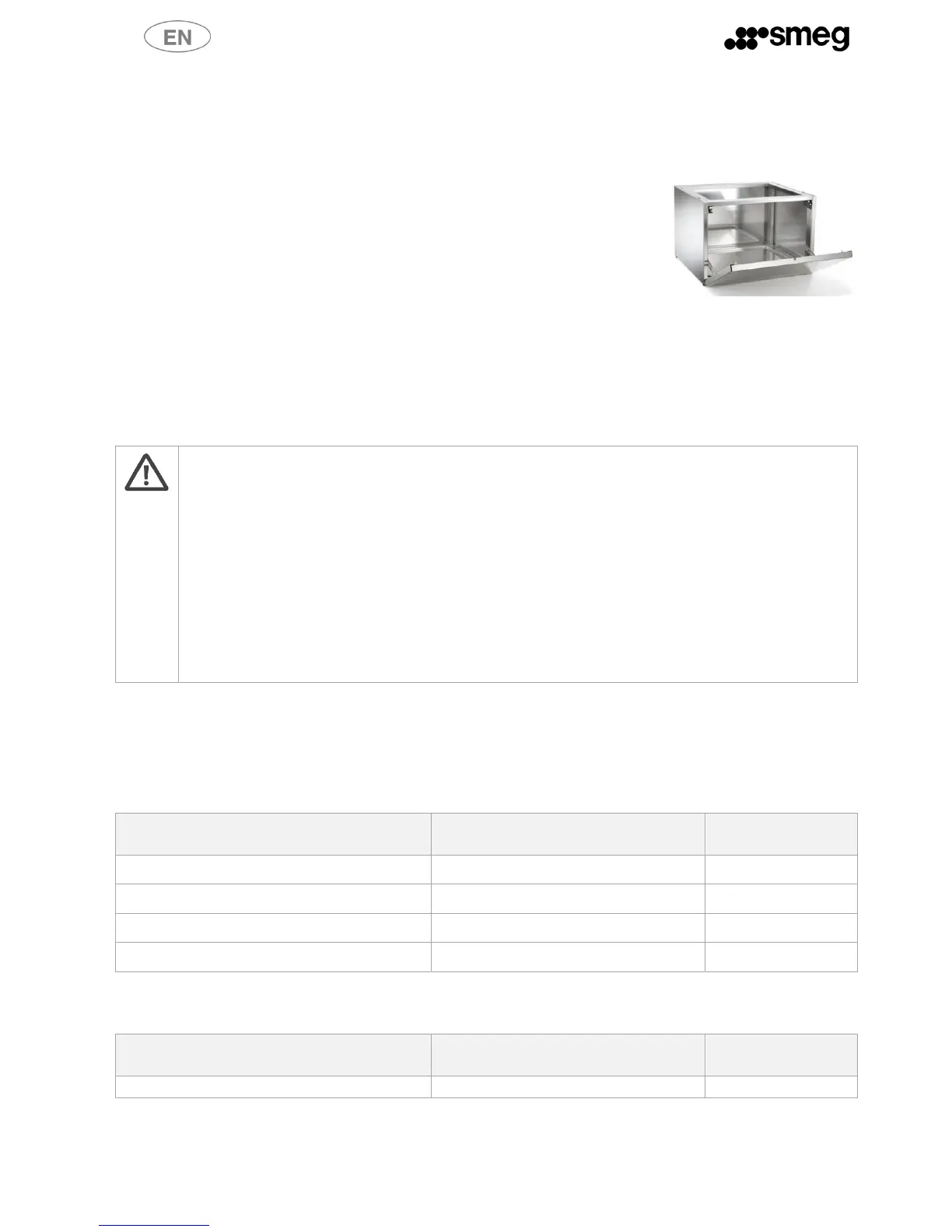

fig. 4 – Smeg base B6040
The dishwasher is supplied without a power plug, with a cable fitted with pre-isolated terminals.
The electrical hookup to the power supply must be done with an industrial type plug.
The plug and its installation must be supplied by the user.
The plug must be rated for the power cable and the electrical specifications of the H07RN-F dishwasher.
MASTER POWER SWITCH
Each appliance must be fitted with a MASTER SWITCH.
Characteristics of the circuit breaker:
a) Multi-pole: must disconnect all live wires;
b) Easily accessible by the user;
c) Easy to operate (no tools required);
d) Located in the immediate vicinity of the appliance;
e) Clearly marked as master switch. The appliance is equipped with overcurrent protection.
However, it is advisable to install the following in the room's electrical enclosure: a dedicated
protection device (e.g. thermal cutout or fuses on each phase, rated for the electrical specifications
given above).
2.3 Technical characteristics (power, plumbing)
2.3.1 Electrical connections (see nameplate with the technical data)
Legend of abbreviations used for the electrical connections.
Models three phase versions/mono phase:
CHARACTERISTICS
THERMAL CUTOUT
400V 3N~ / 50Hz / 12A / 7000W
230V 3~ / 50Hz / 19A / 7000W
230V 1N~ / 50Hz / 16A / 3500W
230V 1N~ / 50Hz / 12A / 2800W
1P+N, 16A, 230/400V, 4,5kA
CHARACTERISTICS
THERMAL CUTOUT
230V 3~ / 50Hz / 30A / 7000W
