BUILD-UNDER INSTALLATION

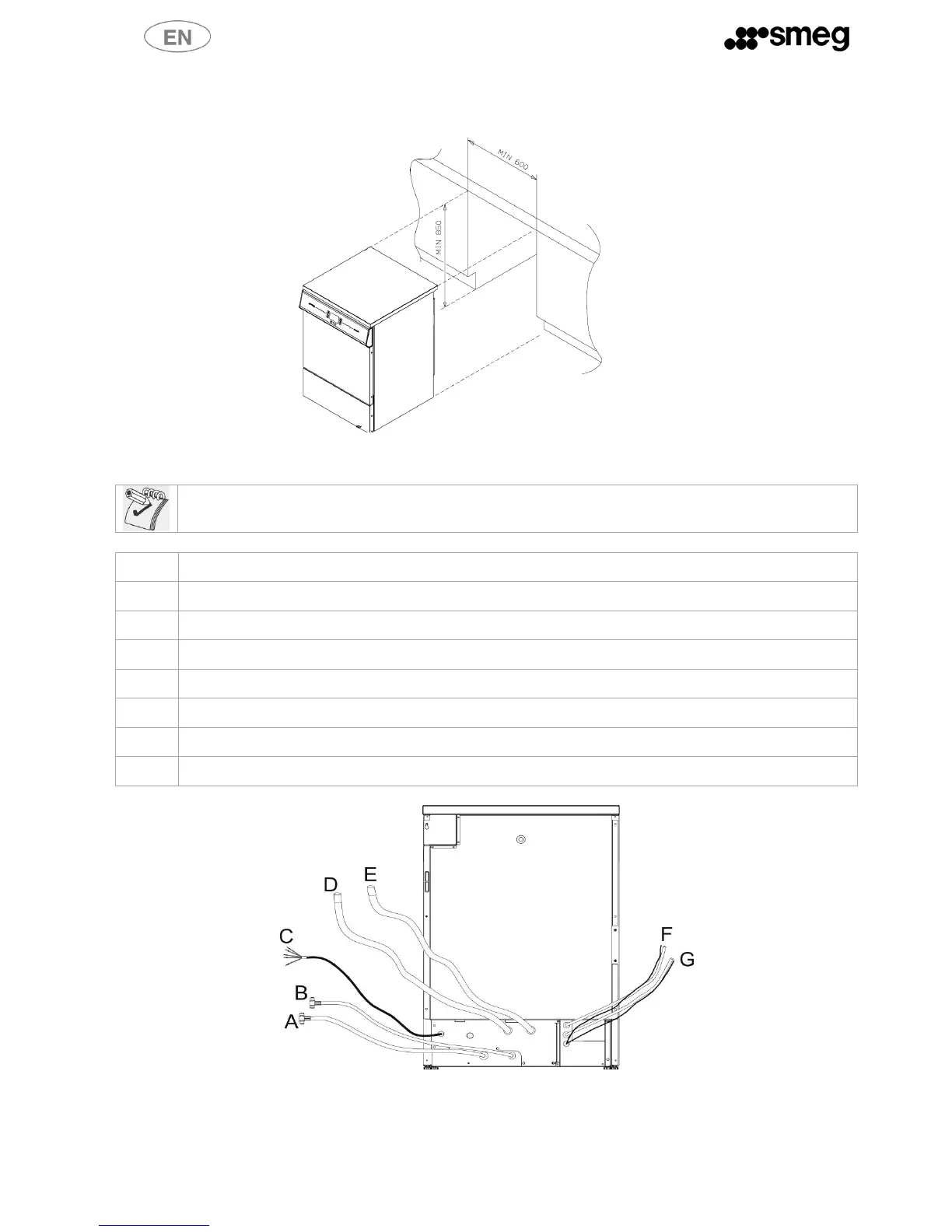

fig. 2 – Diagram, build-under
IMPORTANT Models equipped with condensers must be supplied with cold water in the specified
temperature range if the condenser itself is to work properly
BACK PANEL CONNECTIONS
ID
Description
A
Hot water supply hose (red collar)
B
Cold water supply hose (blue collar)
C
Power supply cable
D
Steam condenser drain hose (as applicable)
E
Dishwasher drain hose
F
Peristaltic pump P1 priming hose and P1 tank detergent sensor cable (OPTIONAL)
G
Peristaltic pump P2 priming hose and P2 tank detergent sensor cable (OPTIONAL)
fig. 3 – Diagram, back panel connections and hookup.
