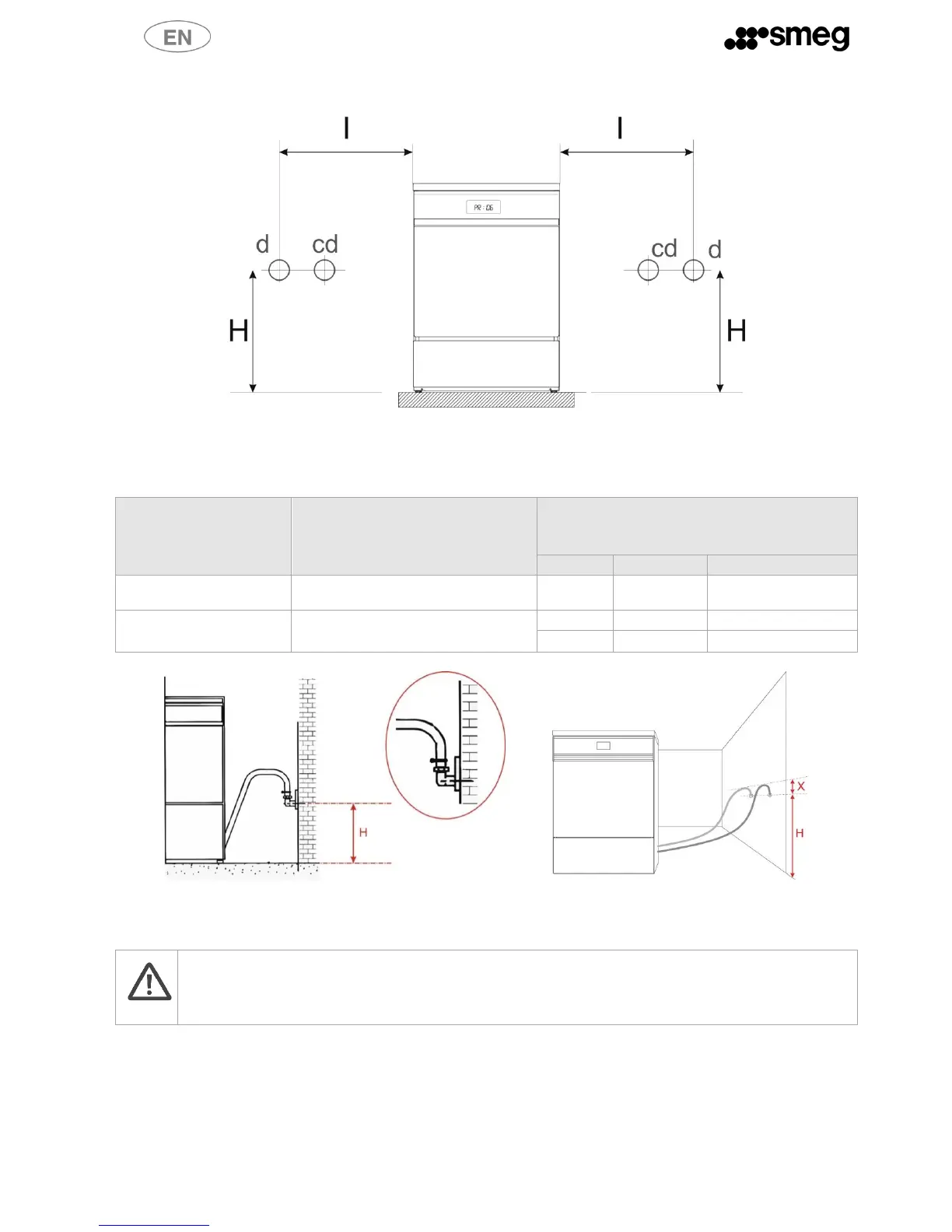

fig. 6 – Diagram, the drain connections may be made on the right or left of the appliance,
while accounting for the maximum clearance indicated by the product
Dimension “I”
Distance of drain from side of
appliance [cm]
DRAIN TYPE AND DIMENSION “H” ABOVE
GROUND LEVEL [cm]
fig. 7 – Drain connection. Drain connections – 65 cm < H < 80 cm. Dimension “X”: use only original drain hoses and the supplied tube bend guides. The
dimension “X” between the drain fitting and the highest point of the hose must not exceed 20cm: X < 20cm. Models with steam condensers, whose
model designation terminates with “-C”, are equipped with 2 drain hoses.
WARNING
The drain connection must comply with international regulations: our company declines any liability
should improper use of the dishwasher result in environmental pollution.
