Smithco Spray Star 2000 - Page 31

Parts
29

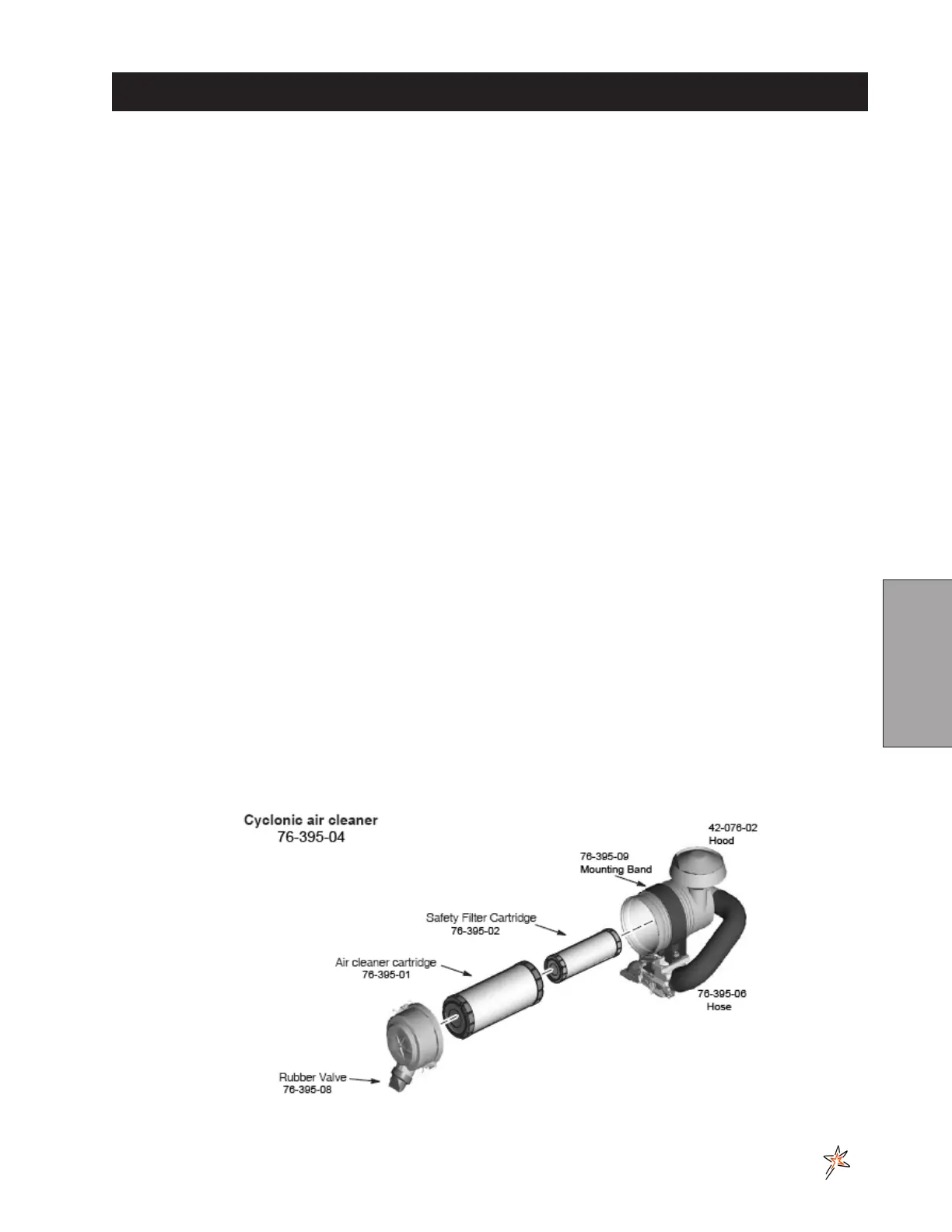

ENGINE AND PUMPS PARTS LIST
REF# PART# DESCRIPTION QUANTITY
1 15-624 Oil Cooler 1
HB-516-18-075 Hex Bolt,
5
/
16
-18 x
3
/
4
4
HNFL-516-18 Flange Whiz-loc Nut,
5
/
16
- 18 4
2 18-438 Fitting 2
3 20-532 Right Oil Cooler Mount 1
4 76-484 Engine, Briggs & Stratton 31 HP 1
76-487 Engine Oil Filter 1
76-446-01 Stub Shaft 1
21-161 Wire Block 1
5 50-394 Mu󰀪er Clamp 1
6 76-447 Center Mount Mu󰀪er 1
7 76-465 Coupling Complete 1
76-466
7
/
8
" Coupling Half 1
76-467 1
1
/
8
" Coupling Half 1
76-468 Sleeve 1
8 32-026 Pump Adapter 1
9 21-445 Spring 1
10 42-604 Spade Hex Bolt 1
HNFL-38-16 Flange Whiz-loc Nut,
3
/
8
- 16 2
11 76-482 Hydrostatic Pump 1
HB-38-16-125 Hex Bolt,
3
/
8
- 16 x 1
1
/
4
2
HW-38 Flat Washer,
3
/
8
2
HWL-38 Lock Washer,
3
/
8
2
12 18-204 Elbow 2
13 23-130 Elbow 1
14 18-133 Barb Fitting 2
15 23-145 O-ring 1
16 76-197 Gear Pump 1
HB-38-16-100 Hex Bolt,
3
/
8
-16 x 1 2
HW-38 Flat Washer,
3
/
8
2
HWL-38 Lock Washer,
3
/
8
2
17 32-022 Straight Thread Elbow 1
18 20-633 Exhaust Assembly 1
(Continued on Next Page)
