Smithco Spray Star 2000 - Page 56

54
Accessories
DYNAJET
®

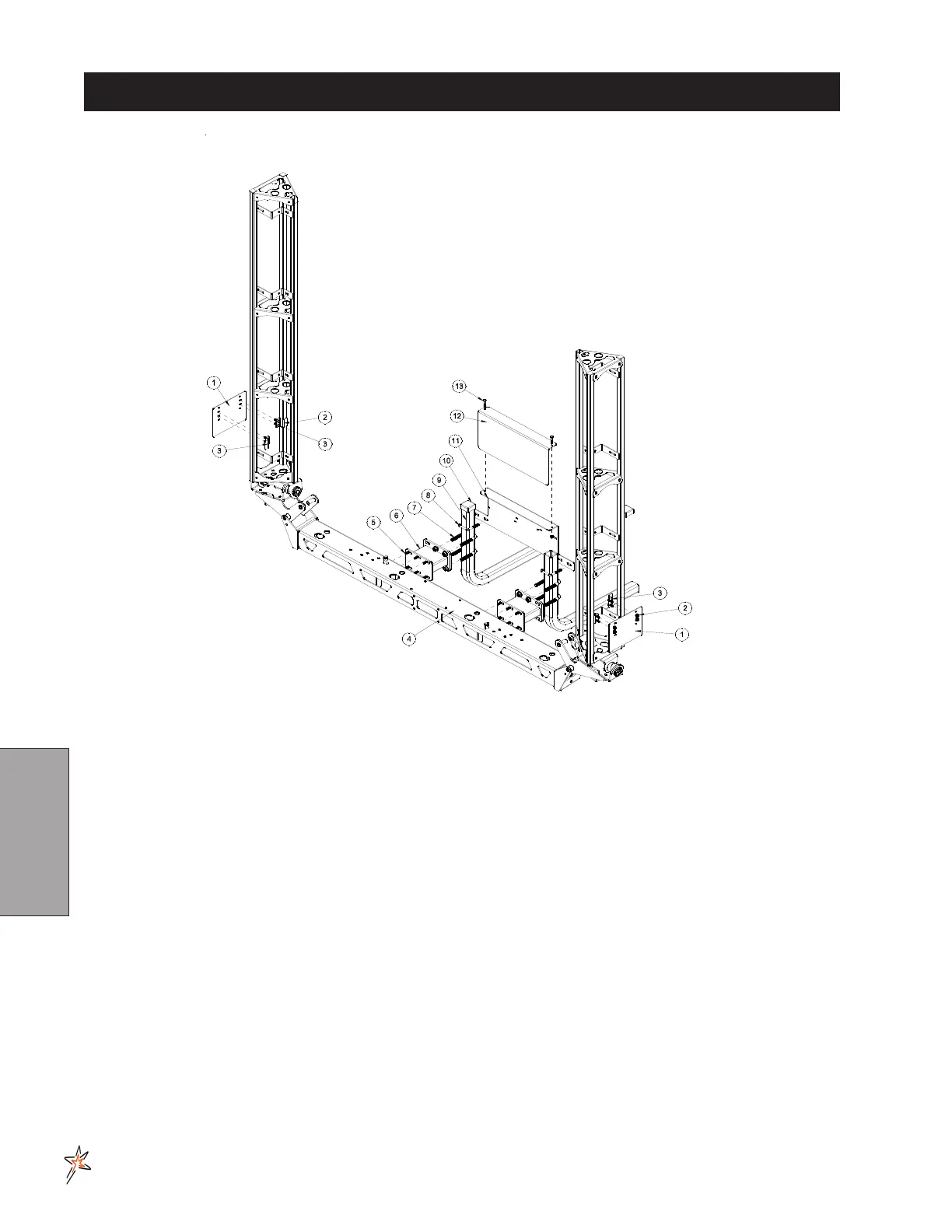

MODULE MOUNTS
REF# PART# DESCRIPTION QUANTITY
1 20-665 Drive Module Bracket 2
2 20-664 Z Bracket 4
3 HSTP-14-20-075 Machine Screw,
1
/
4
- 20 x
3
/
4
10
HNFL-14-20 Flange Whiz Lock Nut,
1
/
4
- 2 10
4 Center Boom Mount 1
5 HB-516-18-100 Hex Bolt,
5
/
16
-18 x 1 12
HNTL-516-18 Nylon Lock Nut,
5
/
16
-18 12
6 17-614 Boom Spacer 2
7 20-555 U-Hex Bolt 4
HNFL-12-13 Flange Whiz-loc Nut,
1
/
2
- 13 8
8 17-537 Square U-Hex Bolt 2
9 17-615 Boom Carrier 2
10 16-557 Square Cap 2
11 20-667 Module Mount Bracket 1
12 20-666 Module Cover Bracket 1
13 HB-516-18-150 Hex Bolt,
5
/
16
-18 x 1
1
/
2
2
HNTL-516-18 Nylon Lock Nut,
5
/
16
-18 2
