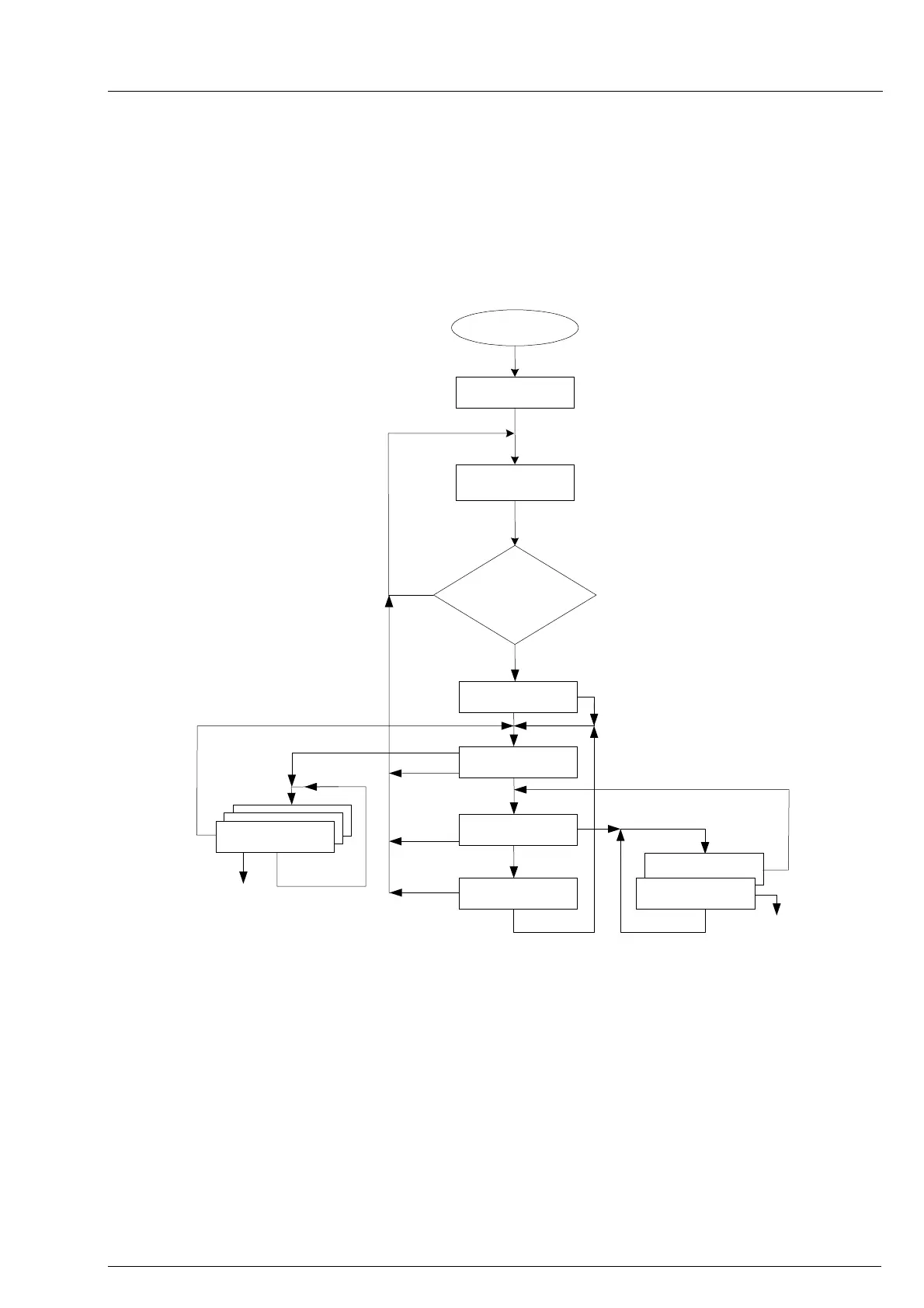

Fig. 26: Reduce menu navigation
"Std data"
START
Auto Scroll
t = 6 s
0-0:21.0.2
N
Display Test
"Std data"
"P.1.0"
End
60 s NA
NA No activity
Y
ESCMD || NA
00:00:00
End
Auto Scroll
0-0:21.0.1
Display registers
Auto Scroll
Profile
60 s NA
60 s NA
60 s NA
LEGEND:
SCMD
Scroll command
SCMD
SCMD
SCMD
SCMD SCMD
ECMD Enter command
ESCMD Escape command
ESCMD
ECMD
SCMD
ESCMD
SCMD
ESCMD || NA
ESCMD || NA
ESCMD || NA
ECMD
