 Advanced Configuration
Accessing Advanced Configuration
Advanced configuration is accessed from CONFIGURE menu selection on main menu.
Note: If wrench has been locked (see Preset Lock and Job Mode), a password entry is required to enter
Configure menu.
1. From target torque or angle screen, press and hold ENTER button for 3 seconds.
2. Highlight CONFIGURE menu selection using UP/DOWN buttons.
3. Press ENTER button to display Configure menu.
Menu Selections:
 EXIT - Exits Configure menu and returns to target torque or angle screen.
 MODE SETUP - Displays instrument mode setup menu.
 PRESET LOCK - Displays Preset lock menu.
 DELETE PRESETS - Displays delete all presets menu.
 JOB MODE - Displays Job mode menu.
 CALIBRATION - Displays instrument calibration menu (password protected).
 SET DATE/TIME - Displays clock date and time entry screens.
 SET CAL INTRVAL - Displays calibration interval setup screen (requires clock date and time setup).
 CHANGE PASSWD - Displays change password menu.
4. To exit Configure menu and return to target torque or angle screen, press ENTER button while EXIT menu
selection is highlighted.
Note: All user configurable settings are stored in non-volatile memory and are retained while power is off.
Mode Setup
Mode setup menu allows user configure target torque and angle minus and plus tolerances and enable/disable
Torque THEN Angle mode and Torque AND angle mode.
1. From Configure menu, press ENTER button while MODE SETUP selection is highlighted.
2. Mode Setup menu is displayed.
Menu Selections:
 EXIT - Exits Mode setup menu and returns to Configure menu screen.
 TQ-% SETUP - Displays target torque minus tolerance entry screen.
 TQ+% SETUP - Displays target torque plus tolerance entry screen.
 ANG-% SETUP - Displays target torque minus tolerance entry screen.
 ANG+% SETUP - Displays target torque plus tolerance entry screen.
 THEN DISABLED - Displays THEN Mode enable/disable screen.
 AND DISABLED - Displays AND Mode enable/disable screen.
3. Use UP/DOWN buttons to highlight menu selections.
4. Press ENTER button while EXIT menu selection is highlighted to return to Configure menu.
EXIT
TQ-% SETUP
TQ+% SETUP
ANG-% SETUP
EXIT
MODE SETUPs
PRESET LOCK
DELETE PRESETS
ENTER
button

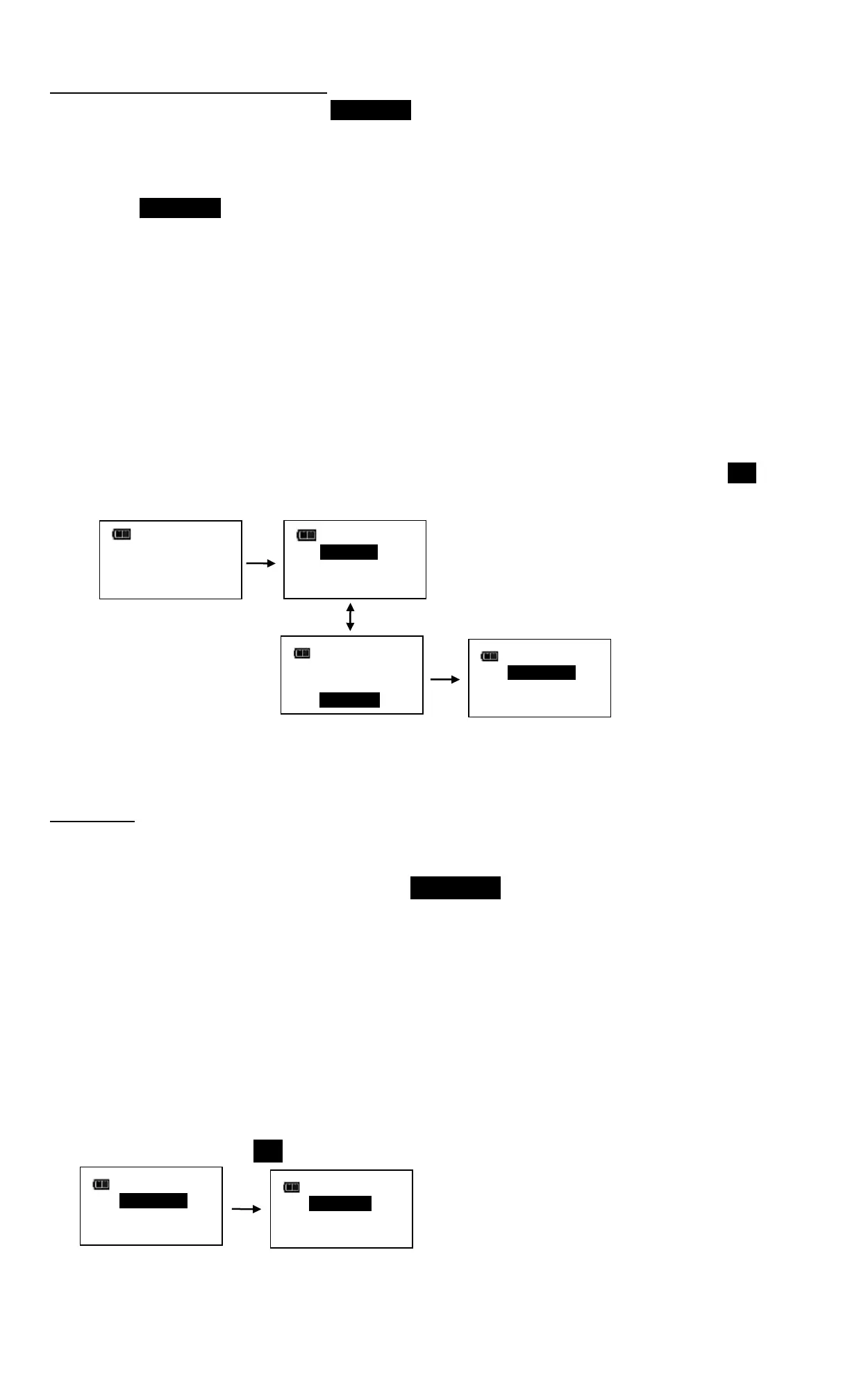

Configure menu
Mode Setup menu
00
100.0
FT-LB
Target Screen
CLEAR DATA
CYCLE COUNT
SETTINGS
CONFIGUREs
UP/DOWN buttons
EXIT
MODE SETUPs
PRESET LOCK
DELETE PRESETS
EXIT
LANGUAGE
SET HEAD LENGTH
SHOW DATA
ENTER
button
held
ENTER
button
Configure menu
