17
EEWB330B
4.5.3 Manual Parameter Entry
In the event of
automatic gauge failure, the parameter
values
can
be
input
manually
. See manual entry of rim
width in the previous paragraph.

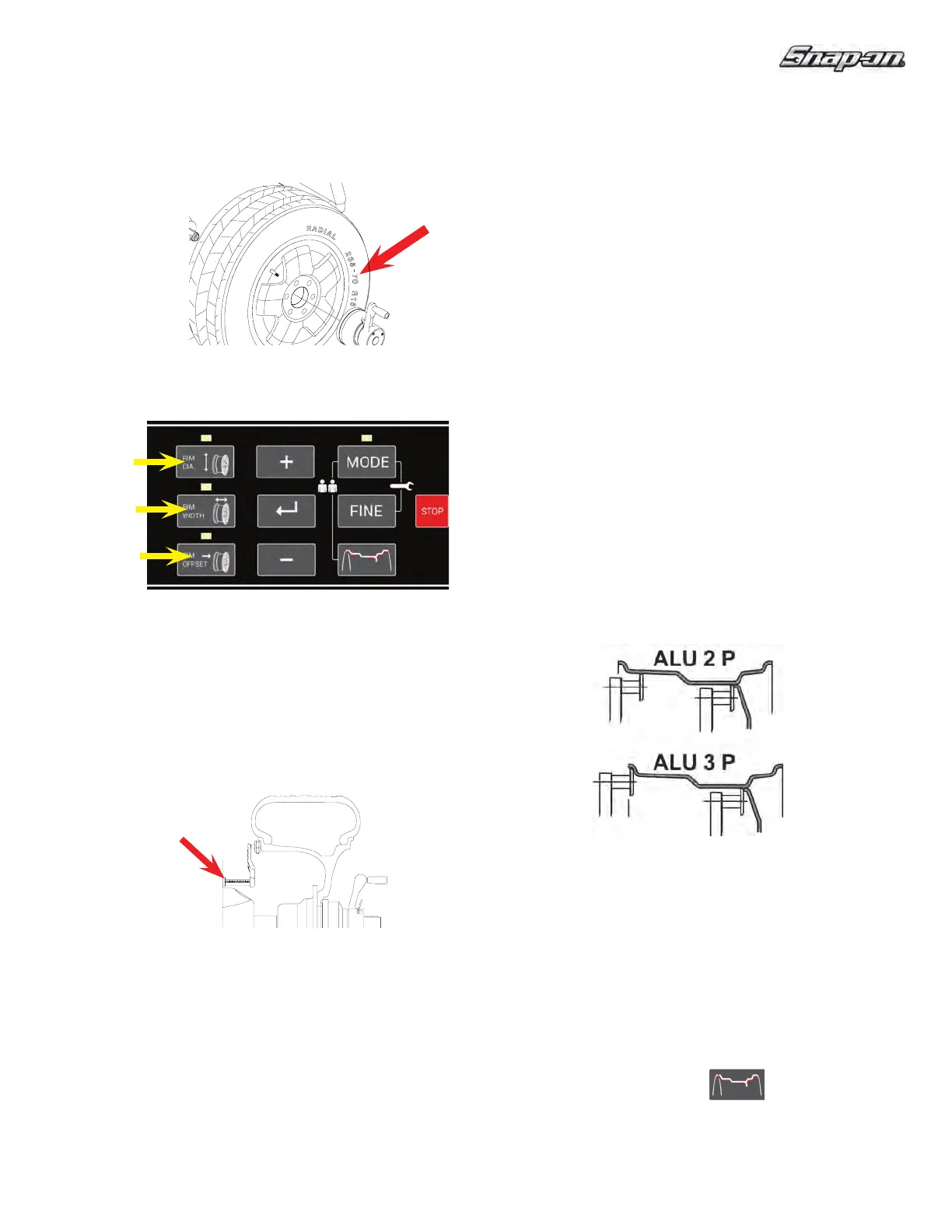

Figure 22
Figure 23
Figure 24
D
W
O
4.5.3.0 Manual Rim Diameter Entry
- Select
the Manual Diameter button. Read the rim diameter
marked on the sidewall of the tire (Figure 22 and 23).
Press the Diameter Button (D) and enter the measured
rim diameter by selecting the +/- keys until the desired
value appears in the display.
Select Enter to save selection.
4.5.3.1 Manual Distance Entry - Move the distance
gauge arm to touch the
inner edge of the wheel where
weights are to be placed and observe the reading on
the scale of the distance gauge. See Figure 24. Press
manual Wheel Offset button (O) followed by selecting
the +/- keys until value is displayed in the display window.
Select Enter to save selection.
NOTE: The parameter arm must be in the Home rest
position when the balancer is powered up.
Figure 25
4.6 Easy Alu FUNCTION
The E
asy Alu function automatically recognizes the
desired weight location by placing the SAPE arm in
the correct locations.
Note:
Alu 4 and Alu 5 are not included in the Easy Alu
function. They require manual setting by the operator.
4.6.1 Automatic rim dimension reading
and Alu P Mode selection
Preparations:
— Compensation run carried out, if necessary.
— Wheel correctly clamped.
Important: The OK indication and recommendation
for optimization, as well as the optimization procedure
itself, will only be accurate if the rim width is correctly
entered (Manual Input).
Automatic rim distance and diameter reading with
an internal gauge arm
— Move the SAPE arm into position on the rim to select
the initial weight application position (internal rim
side). Keep it in this position until an audible signal
is heard.
Only for Alu2P and Alu3P (Fig. 25):
— Position and hold the internal gauge in the
second position on the rim to select the
application position on the right side of the rim.
Shortly afterwards the machine emits an audible
signal to indicate that the machine automatically
saves the weight application coordinates.
— Move the gauge arm to the idle position.
At this point you can change the Alu mode suggested
by the machine, using the “Easy Alu Toggle” function.
Do this by pressing the button
once.
— Spin the assembly.
