8
EEWB330B
PRE-INSTALLATION CONSIDERATIONS

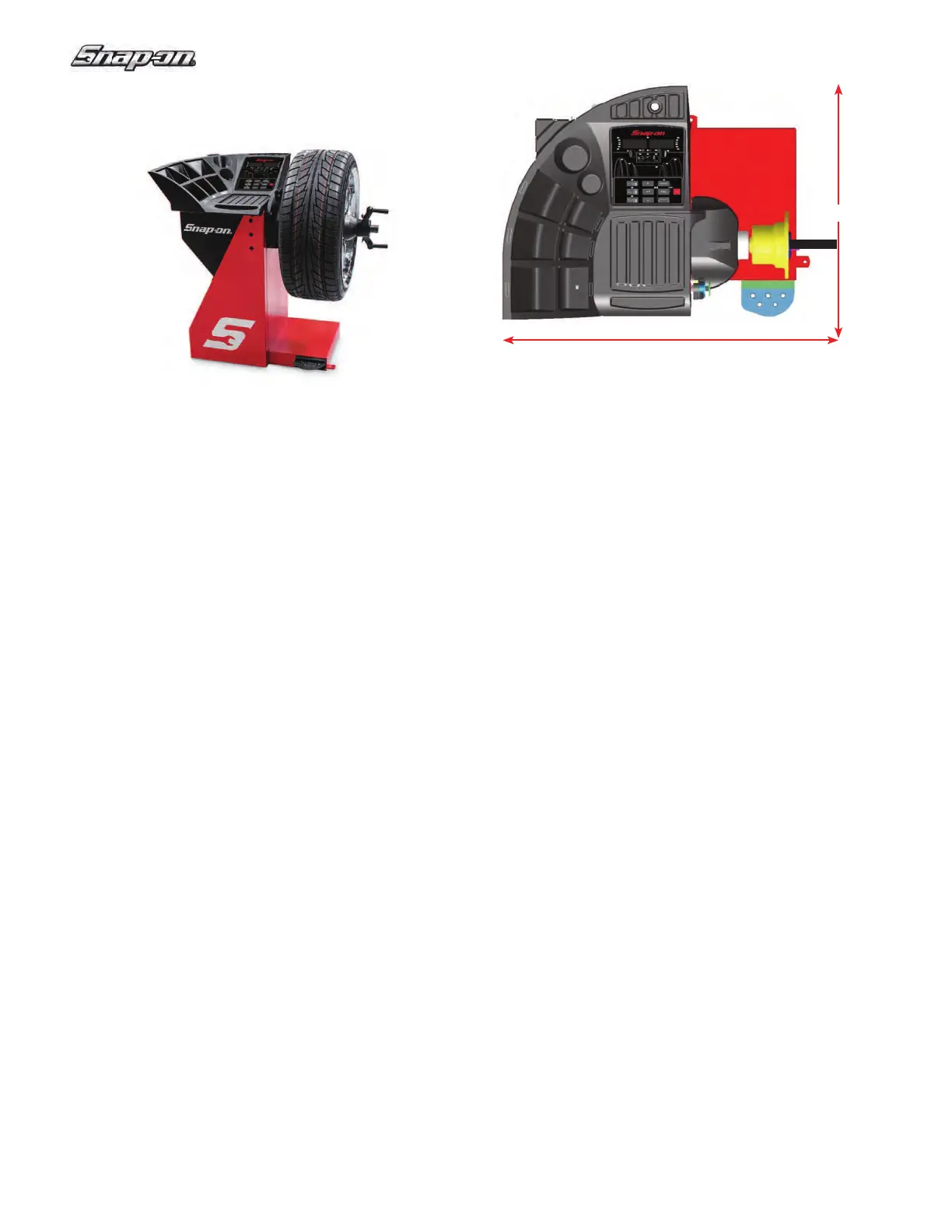

1.7 DIMENSIONS OF THE MACHINE
Figure 4 - Actual Footprint Dimensions.
1.8 REQUIRED INSTALLATION AREA
Make
sure that from the operating position the user
can see all of the machine and the surrounding area.
The operator should prevent non authorized persons
and/or objects from entering the area which may create
potential hazards.
The machine should be installed on a stable level ! oor.
Do not install the machine on a uneven ! oor.
If the balancer is to be installed on a raised ! oor, the
! oor must have a capacity of at least 110lbs per sq ft.
(5000 N/m² - 500 kg/m²).
It is not required to secure the machine to the ! oor.
Install the machine in a dry, covered area.
The installation of the machine requires a working area
of at least 60” x 48” (1524mm x 1219 mm) (Figure 5).
NOTE: Do not install the balancer below grade level
or in a pit.
Figure 5 - Recommended Work Area
1.9 INSTALLA
TION INSTRUCTIONS
CAUTION! CAREFULLY REMOVE THE BALANCER
FROM THE PALLET.
Remove the hardware that secures the machine
to the pallet and slide the balancer onto the ! oor
where it is to be installed.
THE UNIT IS HEAVY AND THE WEIGHT IS NOT
EVENLY DISTRIBUTED.
DO NOT LIFT THE BALANCER BY THE SHAFT.
DROPPING THE UNIT MAY CAUSE PERSONAL
INJURY OR EQUIPMENT DAMAGE.
60”
48”
