13
EEWB332B
Figure 14
12
13
14
15
16
19
20

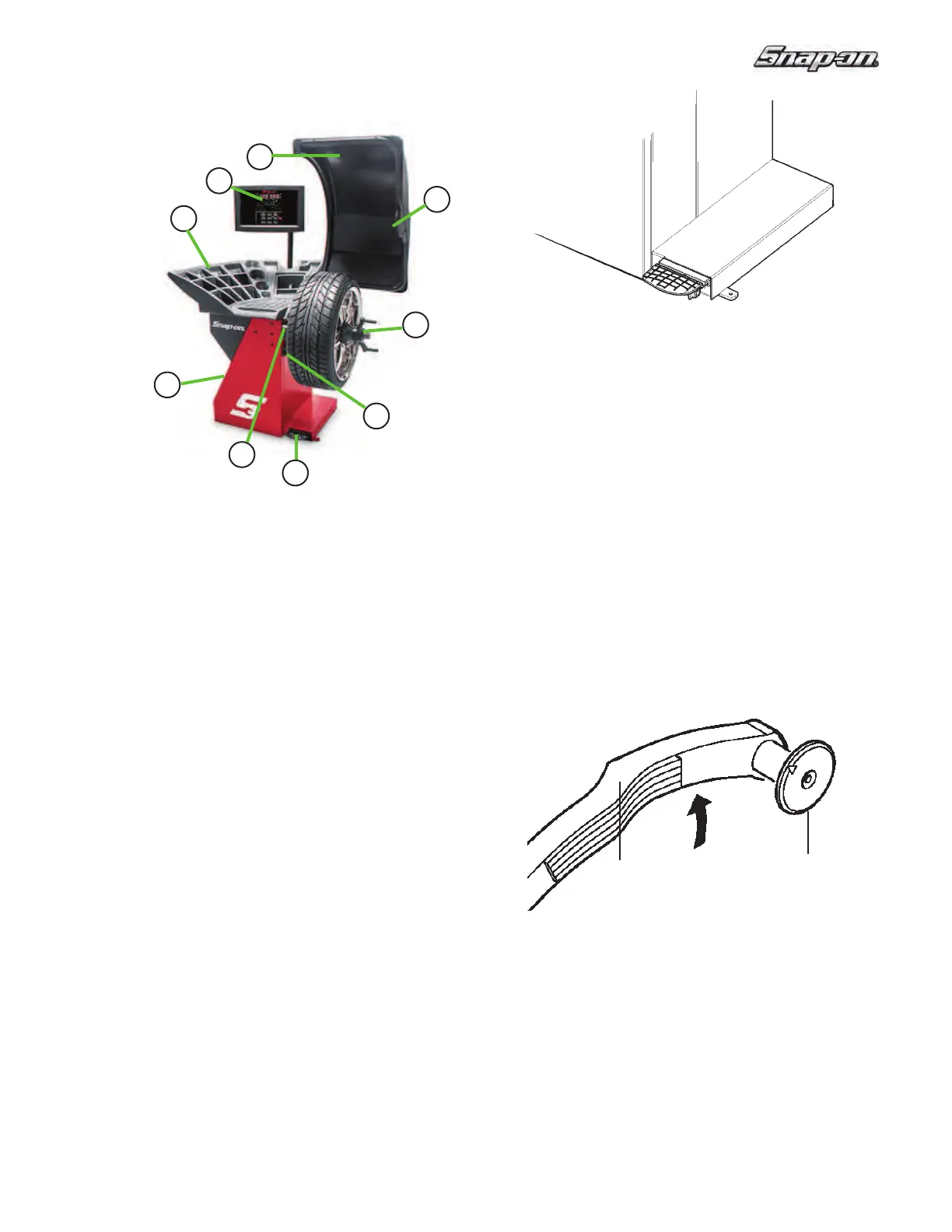

CABINET - Figure 14
12.
Display - Easy to read, user friendly display
featuring large LEDs and one button functions.
13. Weight Storage Tray - Generous storage for a
variety of weight profi les and sizes as well as built
in storage pockets for the standard centering cones.
14. Accessory Storage - Four sturdy side mounted pegs
are supplied for storage of additional accessories.
15. Wheel Guard Assembly.
16. Semi-Automatic Parameter Arm - Rim distance
and diameter is automatically input with the SAPE.
The SAPE is also used in several procedures for
determining accurate rim profi les and tape weight
placement.
17. Foot Operated Shaft Lock -A foot operated shaft
lock is used to stabilize the shaft during the weight
placement process.
18. Laser weight placement indicator.
19. Shaft Adapter - A common 40 mm size shaft is
used. The easily removable shaft can be replaced
for service or during use of certain wheel adapters
20. Sonic Transducer - Used for detection of the rim
width.
18
17
1
2
Figure 14a
Figure 14b
MAIN SHAFT LOCK - Fig. 14a
Pedal of main shaft lock
The main
shaft is locked when the pedal is depressed.
This also facilitates tightening or loosening of the
clamping nut.
Note:
This lock is designed only to facilitate orientation
of the wheel and must not be used for braking the
main shaft spin.
SAPE PARAMETER ARM - Fig. 14b
SAPE arm for distance and rim diameter.
1 SAPE
arm, can be extended and hinged upwards.
2 SAPE disk to identify rrim dimensions on all types
of RIM profi les.
