EEWB332B
1.3 EEWB332B SPECIFICATIONS
M

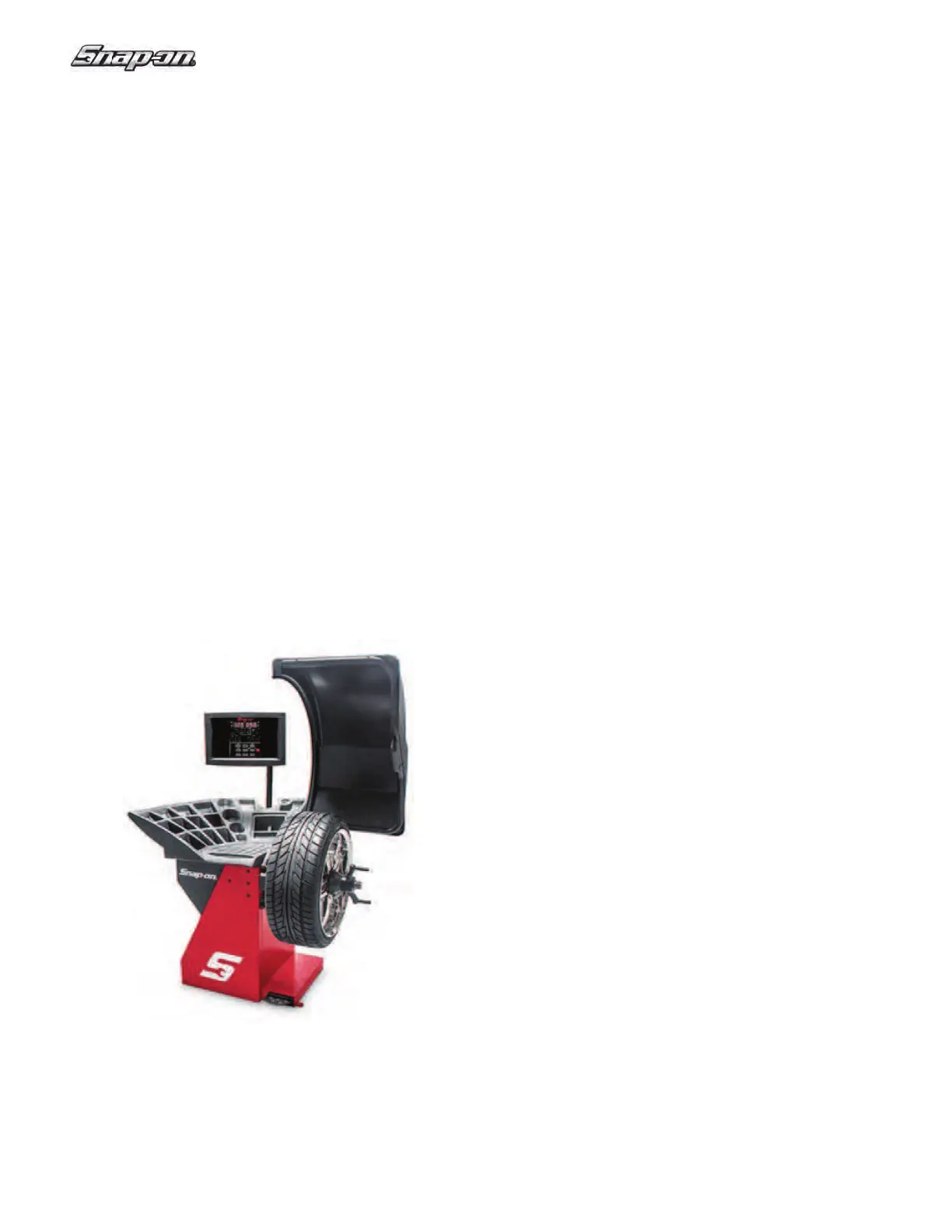

otorized digital wheel balancer for car, light truc
k
wheels.
W
eight Imbalance
Accuracy .10 oz. / 2.8 grams
Weight Placement Resolution ± .7 degrees
Weight Imbalance Resolution:
Roundoff Mode .25 oz. / 5 grams
Non-Roundoff Mode .05 oz. / 1 gram
Max. Shaft Weight Capacity 154 lbs / 69.8 kg
Max.Tire Diameter 42” / 1067 mm
Rim Width Capacity 3”-20” / 76 mm - 508 mm
Rim Diameter Capacity 8”-32” / 203 mm-812 mm
Balancing Cycle Time. 6-8 seconds
Shaft Speed at calculation 200 RPM
Electrical 115vac, 1ph, 60Hz, 4A
Required Work Area 100” x 67” (2540 x1702 mm)
Shipping Weight, complete 366 lbs (166 kg)
Shipping Dimensions 62” x 64” x 44”
Machine Dimensions (HxWxD) 70” x 59” x 45”
Actual Weight with Accessories 325 lbs / 147.4 kg
Operating Temperature Range 32-122F / 0-50C
1.4 FEATURES
ACCURACY
• Weight placement accuracy is ± .7°
• Weight imbalance accuracy to 2.8 grams.
• Self test check with every power up cycle.
• Fast operator calibration.
• Pre-programmed Error Codes indicate procedural
errors or safety concerns.
SPEED and DURABILITY
• Automatic distance and diameter entry. Simply
touch the SAPE arm to the wheel, the distance and
diameter parameters are automatically entered.
Width is automatically entered using a Sonar sonic
transducer.
• A pinpoint laser identifi es adhesive weight place-
ment location on rims.
• Quick clamp speed nut reduces wheel mounting
time.
• Captured back spring eliminates having to handle
the backing spring.
• Quick cycle time of 6 to 8 seconds
• Automatic recalculation if weight positions are
changed. No need for re-spinning the wheel.
• Common 40 mm diameter mounting shaft.
• Weight pocket storage tray.
• Easy-to-Read Data display.
• Easy weight tray access.
SOFTWARE VERSATILITY
• Both dual weight Dynamic and single weight Static
capability.
• Match Balance program for reducing weight re-
quired.
• Built-in spin counter for monitoring balancer pro-
ductivity.
• Service code access to all Balancer electronic
functions for fast, easy diagnosis.
• Operator selectable round-off mode.
• Easy Alu enter the rim dimensions and automati-
cally select a balancing mode.
• 5 Aluminum Modes
• 2 Alu-S modes
• Hidden Weight (Spoke) mode
• Ounce / Gram toggle from front panel
• Multiple operator feature allows several operators
to recall wheel parameters.
