20
EEWB332B
4.7 CORRECTION OF THE IMBALANCE
Th
e following weight types and application methods
are available:
•
Clip-on weights: Always apply by hand
• Stick-on weights: Can be applied by hand or using
the gauge head for the Alu 2P, Alu 3P or easy
weight mode.
A
B

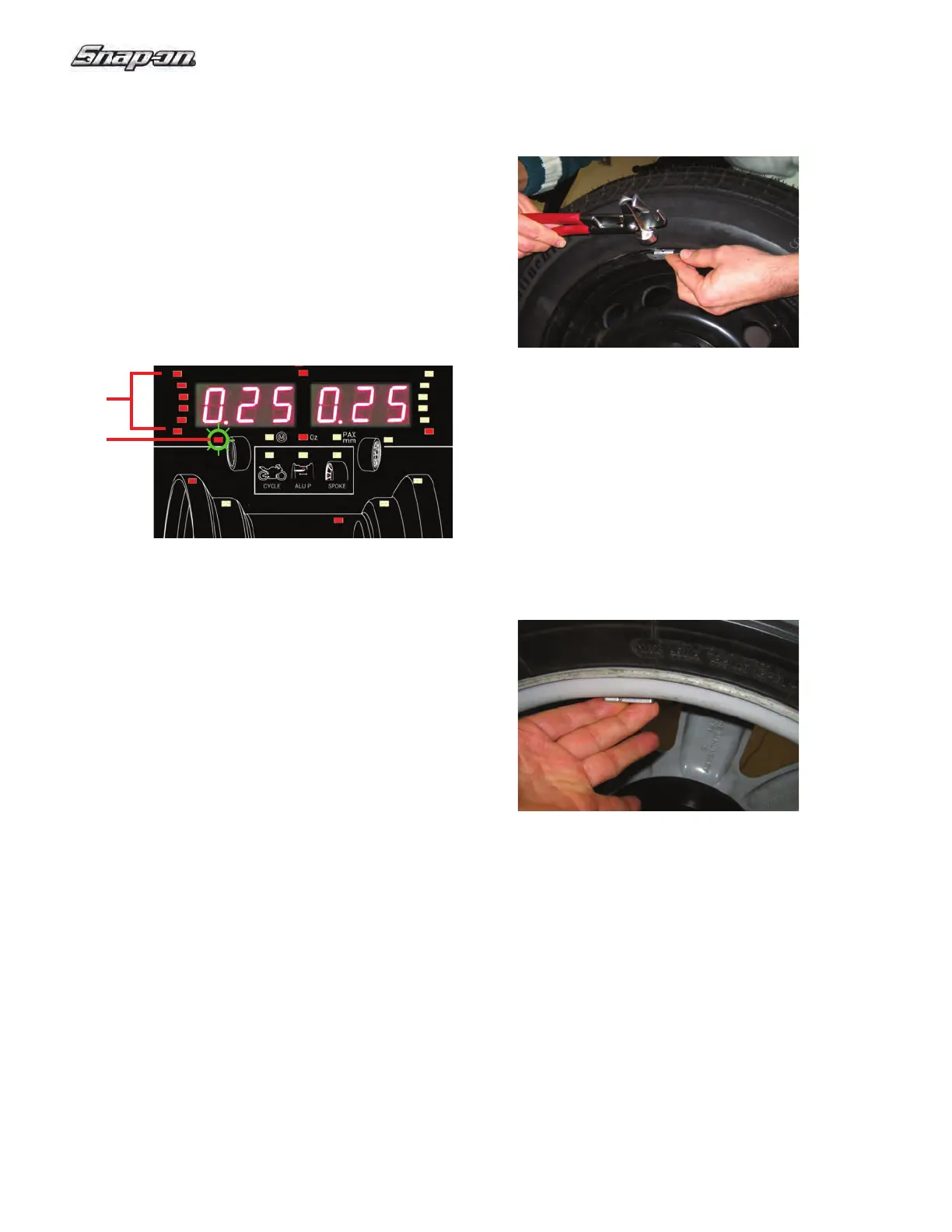

Figure 26
H
and applied weights MUST be applied exactly
perpendicular to the shaft (12 o’clock position). After
Spinning the wheel look at the rotation indicators for
the left plane of the wheel, Figure 26-A. As the correct
Wheel Angle Position (WAP) gets closer more indicators
light up. When all the indicators are ON, the WAP
indicator will also light up, Figure 26-B. Follow same
procedure for placing weight in the right plane.
Note: When the correct angle is reached, all the rotation
indicators should be ON. If the wheel has been pushed
too far, only the indicators of the other half will come
ON. If this happens, the wheel must be slowly turned in
the opposite direction until the WAP position is reached.
The weight amount to be applied in that plane is shown
on the display.
Figure 26a
Figure 26a
Attaching a stick-on weight.
AL
U or STATIC weight modes only: Refer to Figure 26b.
Apply the weight on the rim in the 12 o’clock position,
always by hand.
Note: With STATIC weight modes, always apply the
weight at the rim center line. If not possible, split the
weights evenly and apply on another surface of the rim
(symmetrical to the rim center line).
Attaching a clip-on weight.
Refer to Figure 26a. Clip-on weights must always be
applied in the 12 o’clock position. The lip should rest
on the rim edge. Use the weight pliers to position it. In
STATIC mode only the left hand display is used.
