Sno-Tek 24E User Manual

EN – 13
Install Traction Drive Belt
See Figure 18.
1. Install belt onto traction drive pulley.
2. Install belt onto traction sheave.
3. Align swing gate tab with stop hole in frame and insert
pivot rod through support bushing. See Figure 19.
See Figure 20.
4. Reinstall support bushing onto swing gate pivot rod.
5. Reinstall spring clip into pivot rod.
NOTICE: Support bushing MUST be correctly seated in
and flush with frame.
6. Reinstall swing gate spacer, align with support
bushing and secure with 2 tapping screws.

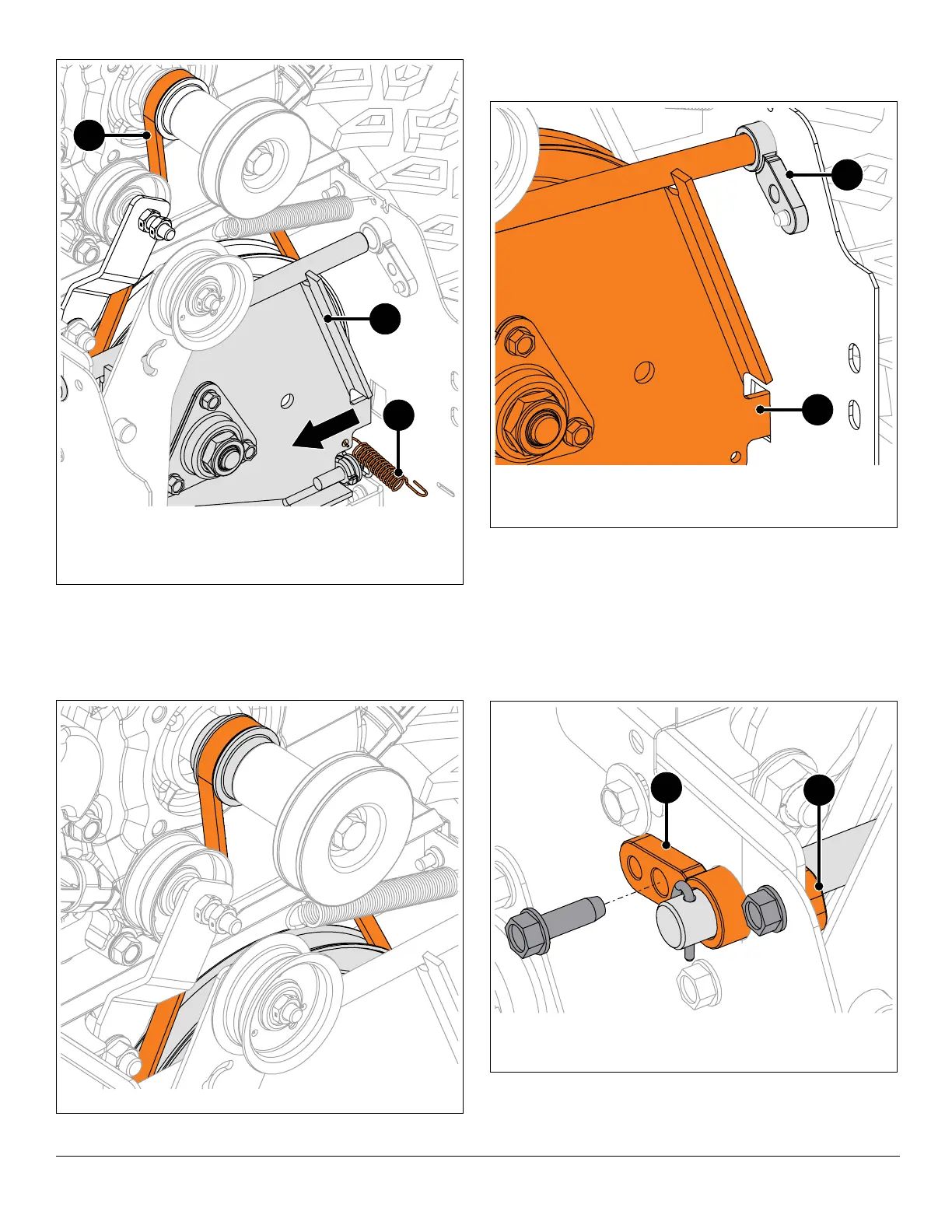

Figure 17
1. Swing Gate Return Spring
2. Swing Gate
3. Traction Drive Belt
1
2
3
Figure 18
Figure 19
1. Swing Gate Tab
2. Support Bushing
1
2
Figure 20
1. Support Bushing
2. Swing Gate Spacer
1
2
