Install Impeller

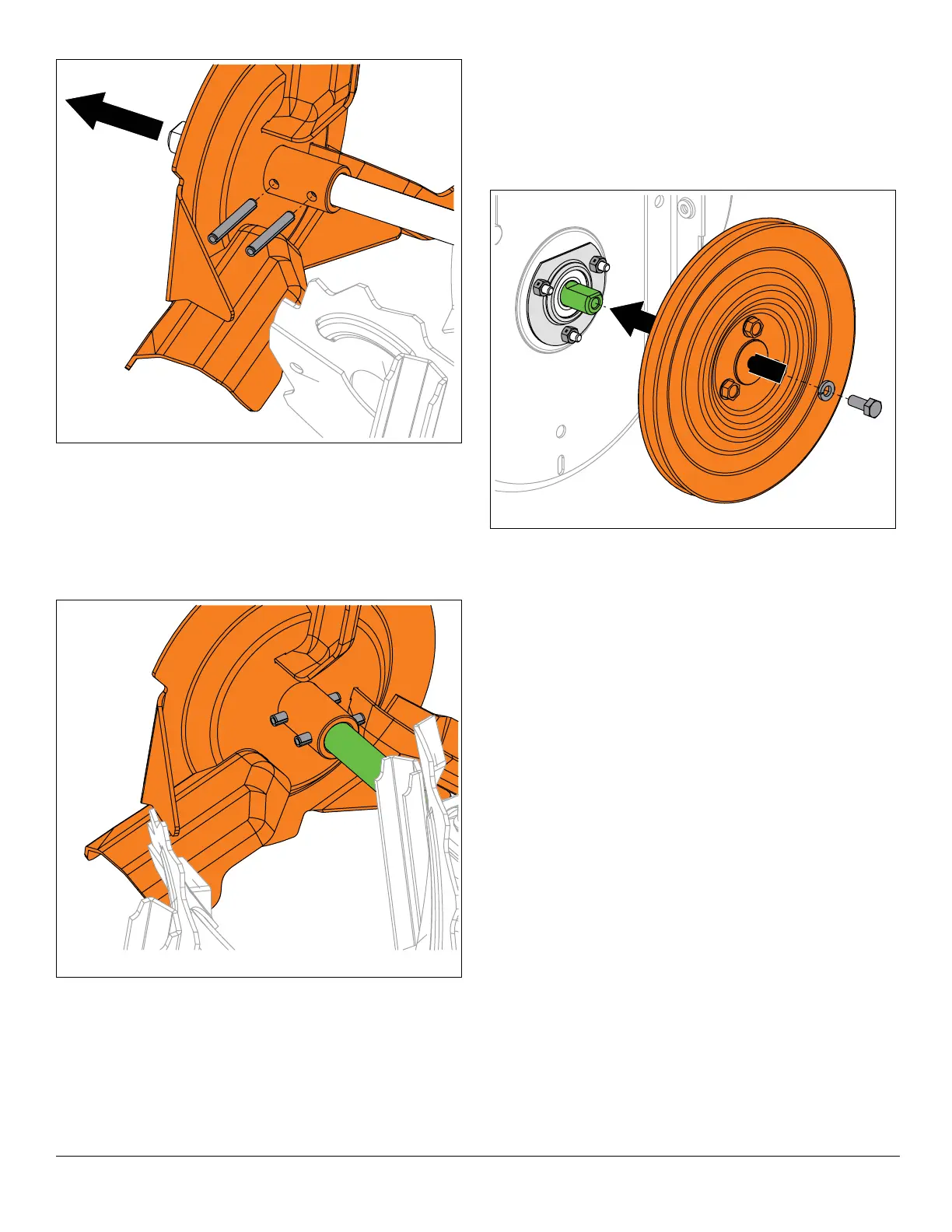

See Figure 48.
1. Apply a thin layer of anti-seize to impeller shaft.
2. Install impeller onto impeller shaft.
3. Align impeller with holes in impeller shaft and reinstall
roll pins.
4. Reinstall auger assembly into housing so impeller
shaft is seated in ball bearing at housing rear. See
Figure 43.
5. Secure support bushings to auger housing with six
tapping screws. See Figure 44.
See Figure 49.
6. Tighten bearing plate hardware.
7. Apply a thin layer of anti-seize to impeller shaft end.
IMPORTANT: Reinstall attachment drive pulley onto
impeller shaft and secure with locking washer and hex bolt.
Torque to 7.9 N•m – 16.5 N•m (5.8 lb-ft – 12.2 lb-ft).
8. Reinstall auger housing to frame. See Reinstall Auger
Housing on page 9.
9. Reconnect spark plug wire.
Figure 47
Figure 48
Figure 49
