EN – 9

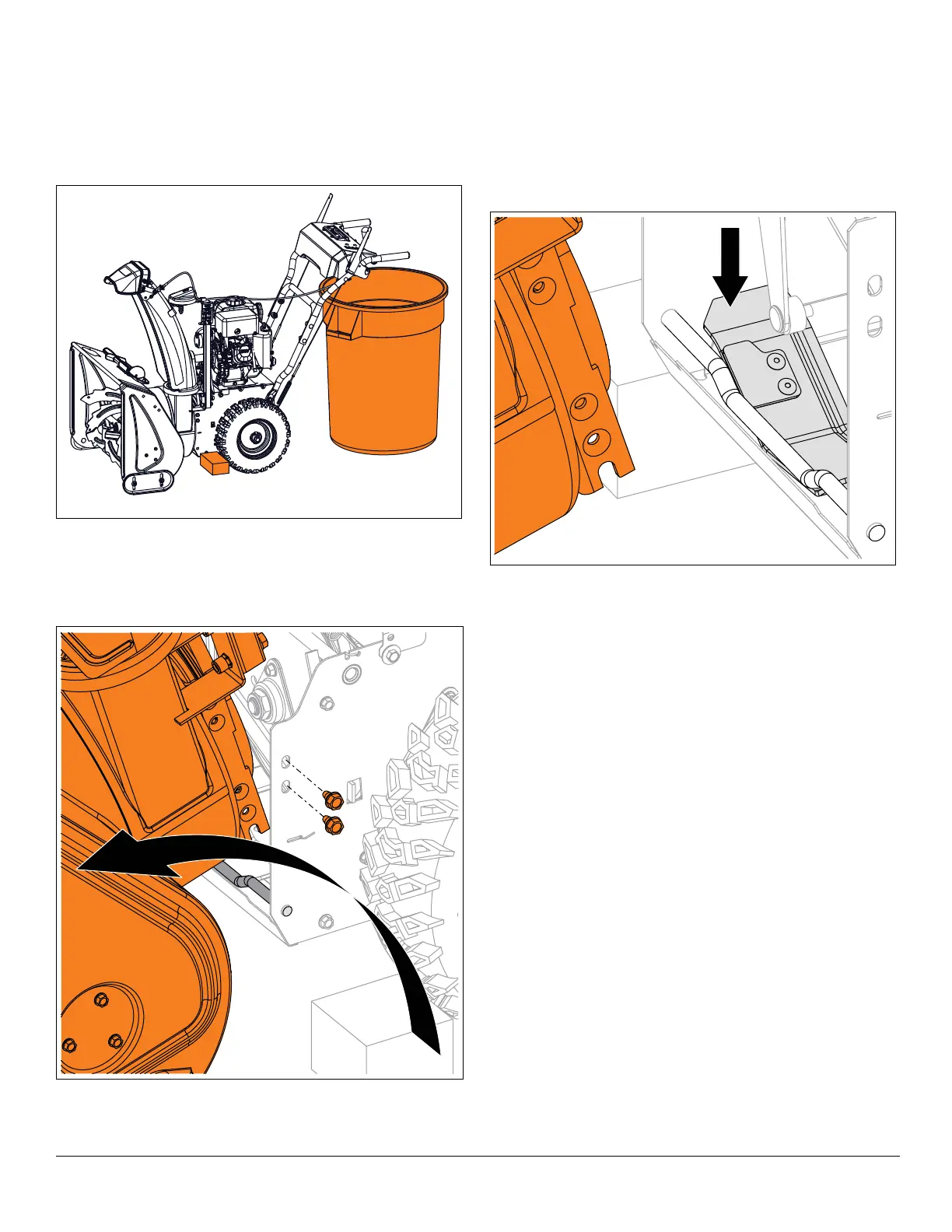

See Figure 8.
11. Position support, such as a trash can, under
handlebars so tractor / frame remains upright when
separated from auger housing.
12. Chock or block wheels to prevent tractor / frame
movement.
See Figure 9.
13. Remove hardware securing auger housing to frame.
14. Lift auger housing rear slightly to disengage mount
brackets from mount rod. Separate housing from unit.
Reinstall Auger Housing
See Figure 10.
1. With assistance from an adult helper, engage
attachment clutch lever so attachment brake will not
obstruct attachment drive pulley in step 2.
2. Tilt auger housing rear up and lower mount brackets
onto mount rod.
3. Release attachment clutch lever.
4. Align holes in mount brackets with holes in frame and
secure housing to frame with four tapping screws, but
DO NOT tighten.
IMPORTANT: Unit must be on a flat, level surface during
steps 5 – 7.
5. Check tire pressure and adjust if necessary. Refer to
Operator’s Manual for specification.
6. Torque hex bolts installed in step 4 to 22.8 N•m – 34.1
N•m (16.8 lb-ft – 25.2 lb-ft).
7. Loosen skid shoe hardware and adjust skid shoes.
Refer to Operator’s Manual for adjustment procedure.
