EN – 10
See Figure 11.
8. Reinstall attachment drive belt onto attachment
sheave.

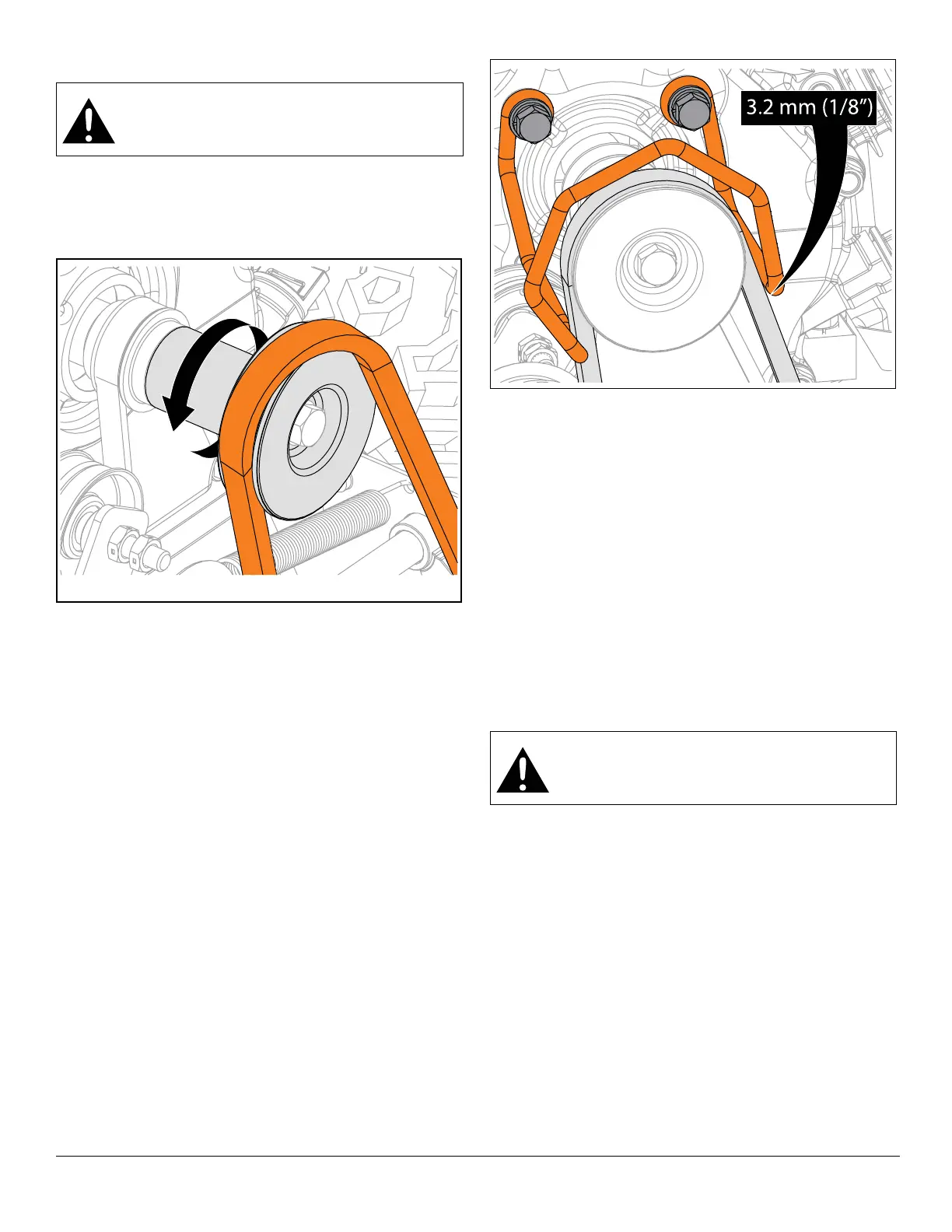

To assist belt installation, slowly pull recoil starter handle
while gently guiding belt onto attachment sheave.
See Figure 12.
9. Reinstall belt finger and secure with two flat steel
washers, two locking washers and two hex bolts.
10. Check belt finger clearance:
• Engage attachment clutch lever and make sure belt
finger located opposite belt idler is less than 3.2 mm
(1/8") from belt, but not touching the belt.
• If needed, adjust clearance by loosening belt finger
hardware, repositioning belt finger, and tightening
hardware.
11. Reinstall belt cover and tighten hardware.
12. Reinstall chute rotation rod into chute rotation gear
and secure with spring clip.
13. Models 920406, 920313, 920315: Advance to step 17.
Models 920402, 920314
14. Reinstall cable hanger onto chute rotation rod.
15. Insert chute deflector cable anchor into deflector
bracket. See Figure 4.
16. Remove sleeve bushing and hairpin from deflector
arm, reinstall cable eyelet onto deflector arm and
secure with sleeve bushing and hairpin. See Figure 4.
17. Adjust attachment clutch / brake. Refer to Operator’s
Manual for adjustment procedure.
18. Reconnect spark plug wire.
IMPORTANT: Check all adjustments after first use.
WARNING: AVOID INJURY. Attachment sheave
edges are sharp. Wear thick gloves to install belt
onto attachment sheave.
WARNING: AVOID INJURY. Auger / impeller
must stop within 5 seconds when attachment
clutch lever is released.
