13. Remove impeller shaft from gearcase and remove all
loose parts from inside gearcase.
14. Remove seals and flange bushings from gearcase.
See Figure 84.
Assemble Gearcase
See Figure 85.
1. Press rear seal into gearcase until flush with gearcase
exterior.
2. Reinstall right and rear flange bushings.
3. Install gear into gearcase. See Figure 86.
See Figure 87.
4. Reinstall impeller shaft through gearcase front and
reinstall thrust collar onto impeller shaft end.
5. Wrap a seal protector over impeller shaft end and
reinstall shaft through gearcase seal. Remove seal.
NOTICE: Unprotected seals can be damaged when
installed over rough edges in shaft, such as holes.

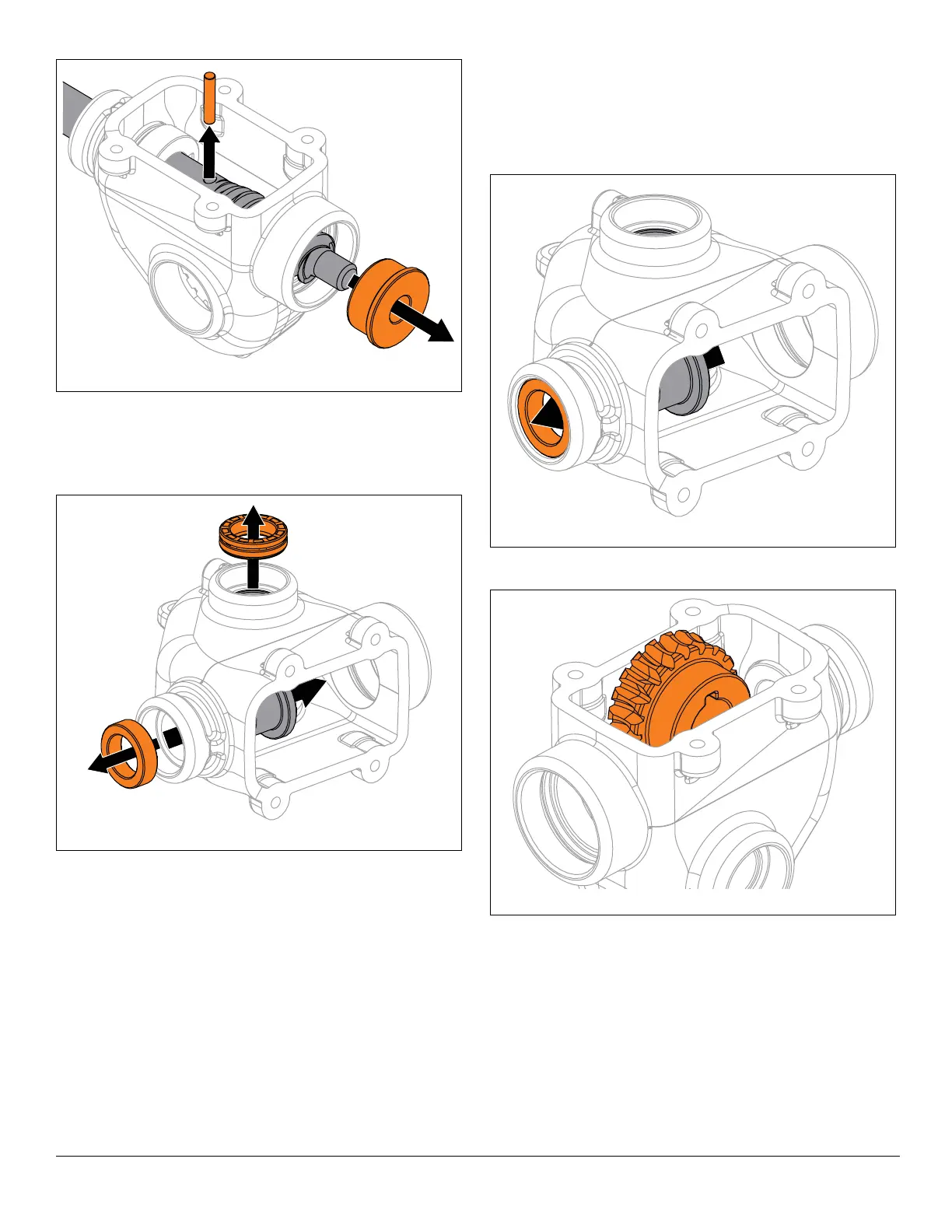

Figure 83
Figure 84
Figure 85
Figure 86
