Sno-Tek 24E User Manual

EN – 36

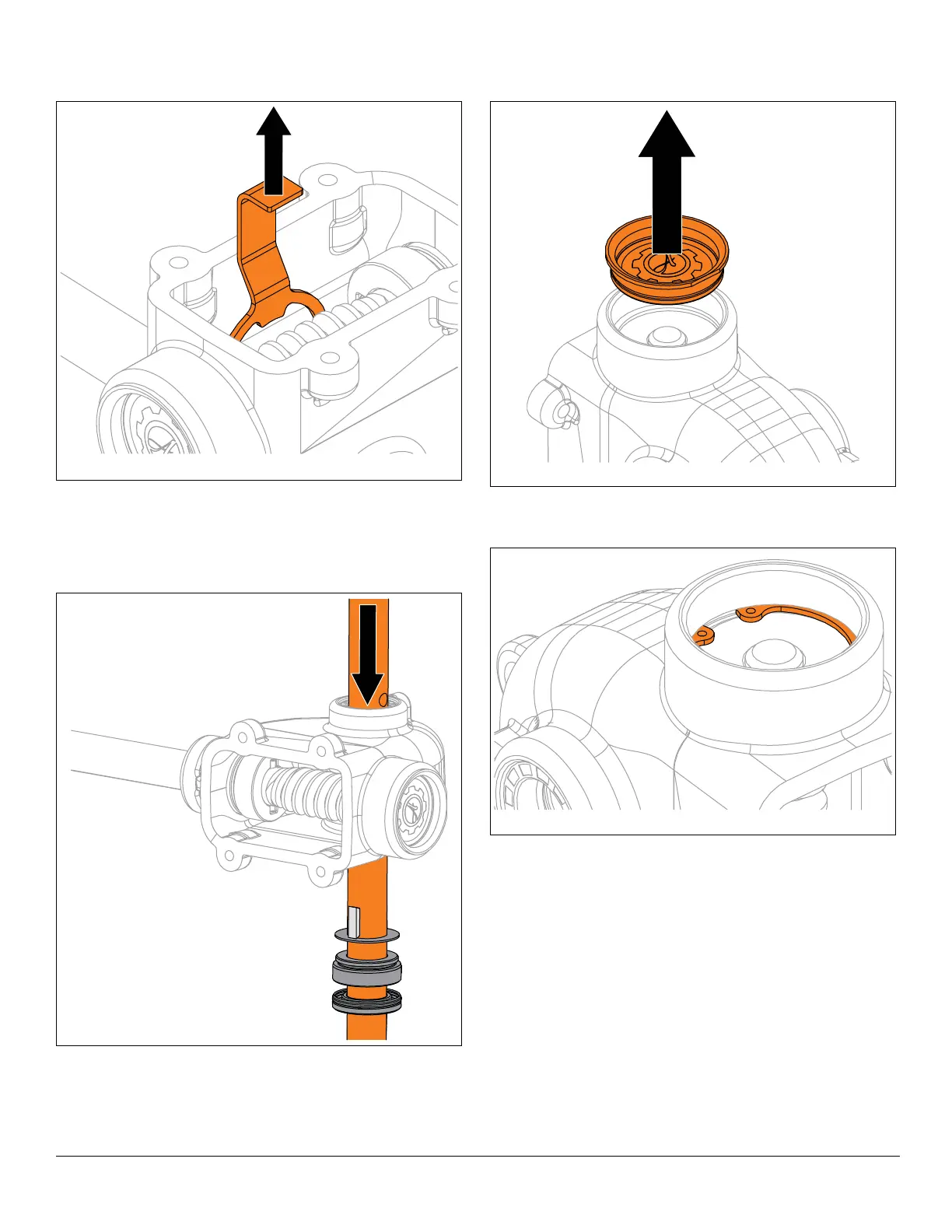

6. Remove bushing retainer from gearcase. See
Figure 79.
See Figure 80.
7. Press auger shaft through the right side of gearcase.
NOTICE: DO NOT strike auger shaft end; use a press.
8. Remove seal, bushing and washer from auger shaft.
9. With a flathead screwdriver or similar pry bar, remove
front seal cover and discard. See Figure 81.
10. With a snap ring pliers, remove retaining ring. See
Figure 82.
See Figure 83.
11. With a driver, strike impeller shaft end until shaft is
through front of gearcase.
NOTICE: DO NOT strike impeller shaft end without using a
driver.
12. Remove pin and bushing from impeller shaft.
Figure 79
Figure 80
Figure 81
Figure 82
