Sno-Tek 24E User Manual

EN – 21
AUGER REPLACEMENT
Remove Auger
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Remove auger housing. See Separate Housing from
Frame on page 7.

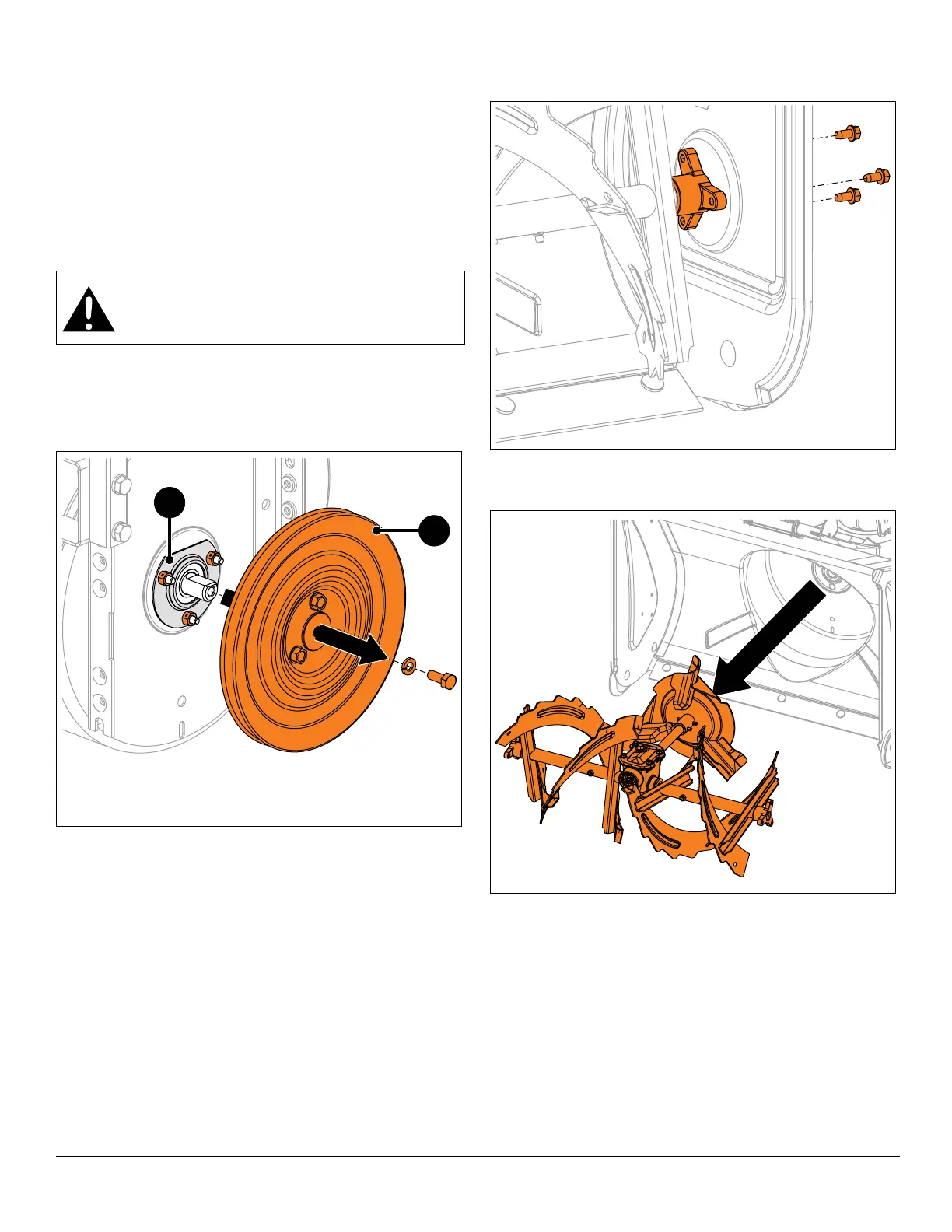

See Figure 38.
4. Hold attachment drive pulley in place and remove
hardware securing pulley to impeller shaft.
5. Remove pulley from impeller shaft.
6. Loosen, but DO NOT remove bearing plate hardware.
7. Remove hardware securing auger support bushings to
auger housing. See Figure 39.
8. Remove auger assembly from housing. See
Figure 40.
See Figure 41.
9. Remove nylon bushing and auger bushing from shaft
end.
10. Remove shear bolt from auger shaft.
11. Remove auger from auger shaft. Use of penetrating oil
or heat may be necessary to remove auger.
IMPORTANT: If rust is present on auger shaft, remove with
sand paper and wipe clean with oil.
CAUTION: AVOID INJURY. Attachment drive
pulley edges are sharp. Wear gloves when
handling pulley.
Figure 38
1. Attachment Pulley
2. Bearing Plate
1
2
Figure 39
Figure 40
