Sno-Tek 24E User Manual

EN – 17
8. Remove spring clips from hex shaft. See Figure 28.
See Figure 29.
9. Remove hex shaft from pinion gear and friction disc
assembly.
IMPORTANT: One flat steel washer is positioned between
pinion gear and frame.
10. Remove friction disc assembly.
Install Friction Disc
See Figure 30.
1. Install friction disc assembly around shift fork roller
bearing and align with hex shaft.
2. Position flat steel washer and pinion gear against
frame and align with friction disc center.
3. Reinstall hex shaft through friction disc, pinion gear,
flat steel washer and into bearing.
See Figure 31.
4. Reinstall spring clips into hex shaft.
5. Reinstall bearing onto hex shaft end.
6. Reinstall bearing flange over bearing and secure to
frame with three tapping screws.

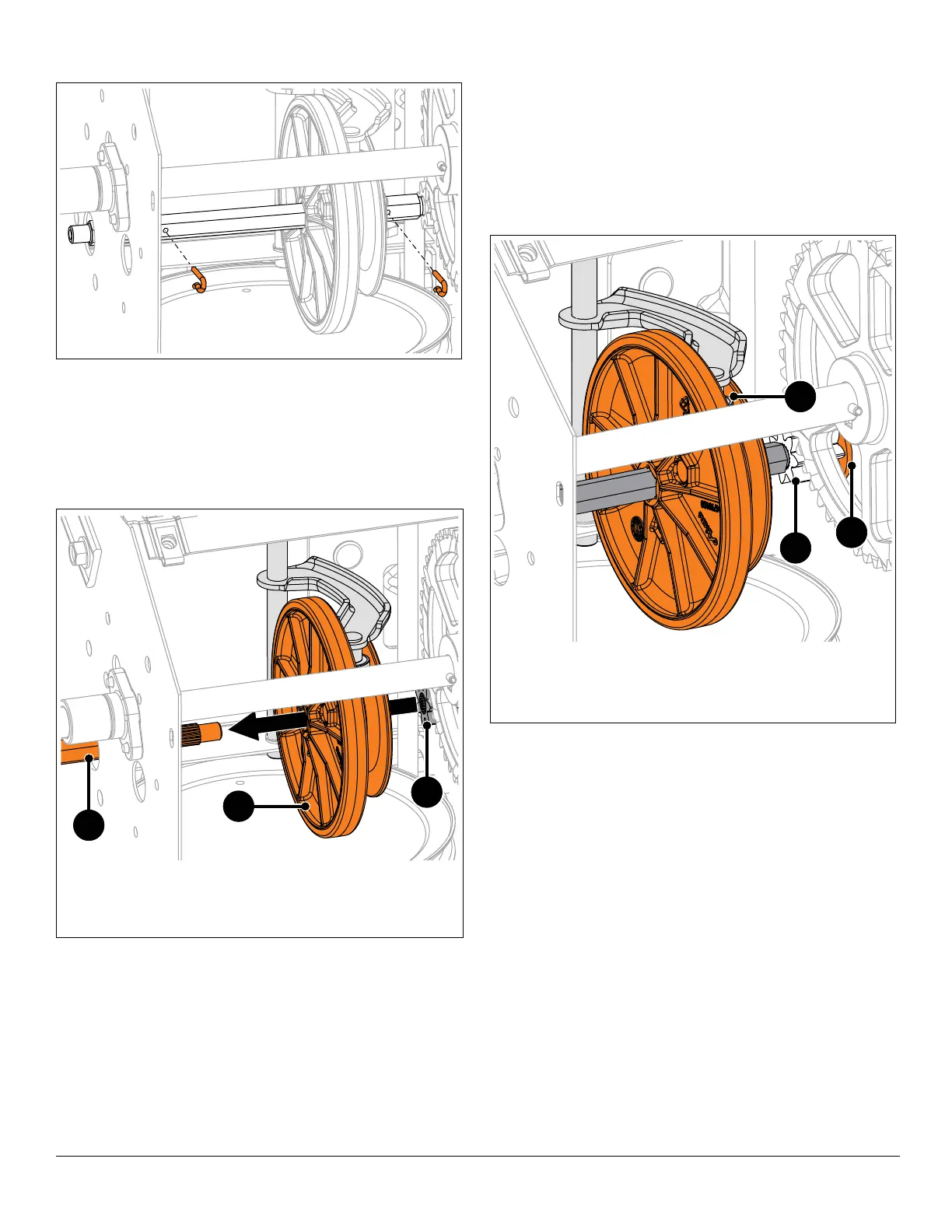

Figure 28
Figure 29
1. Friction Disc Assembly
2. Hex Shaft
3. Pinion Gear
1
2
3
Figure 30
1. Shift Fork Roller Bearing
2. Pinion Gear
3. Flat Steel Washer
1
3
2
