Sno-Tek 24E User Manual

EN – 16

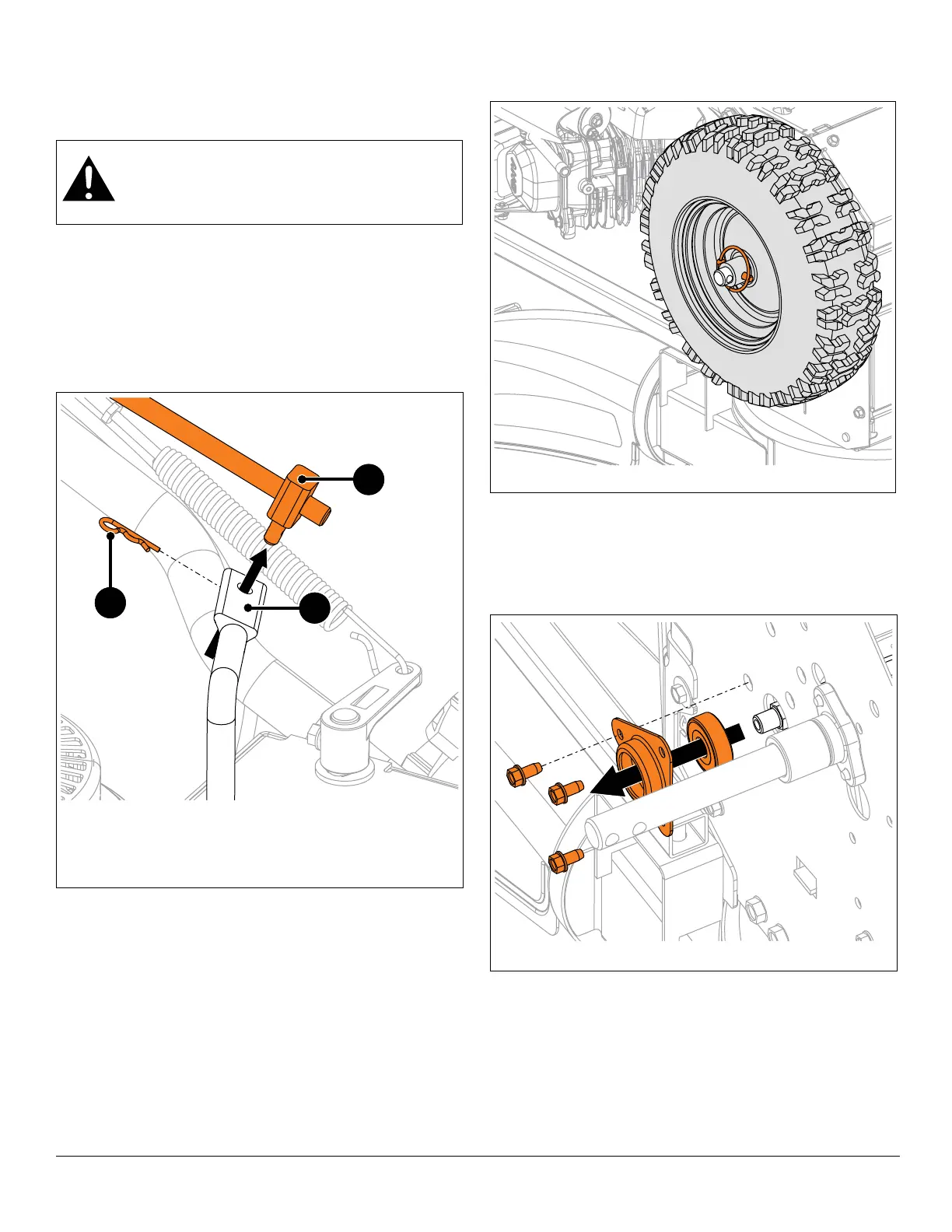

FRICTION DISC REPLACEMENT
Remove Friction Disc
IMPORTANT: Save all hardware for reinstallation.
1. Stop engine, remove key and wait for all moving parts
to stop and for hot parts to cool.
2. Disconnect spark plug wire from engine.
3. Place unit in service position. See Service Position on
page 7.
4. Remove hairpin from adjustment pivot pin and remove
pin from shift arm. See Figure 25.
5. Remove lock pin from left wheel and remove wheel
from axle. See Figure 26.
6. Remove bottom cover. See Bottom Cover Removal on
page 11.
7. Remove hardware retaining left bearing flange to
frame and remove bearing flange and bearing. See
Figure 27.
WARNING: AVOID INJURY. Before placing unit
in service position, drain fuel from tank and fuel
system. See Draining Fuel System on page 7.
Make sure unit is secure and will not tip.
Figure 25
1. Speed Selector Arm
2. Hairpin
3. Adjustment Pivot Pin
1
3
2
Figure 26
Figure 27
