See Figure 88.
6. Reinstall pin into impeller shaft. Turn shaft so pin is
horizontal.
7. Reinstall thrust collar over pin and position impeller
shaft as far to gearcase rear as possible.
8. Reinstall flange bushing onto impeller shaft end. With
a driver, strike bushing until positioned just below
retaining ring groove. See Figure 89.
9. Reinstall retaining ring. See Figure 90.
10. Turn impeller shaft by hand to make sure shaft rotates
easily.
See Figure 91.
11. Reinstall one flat steel washer into left side of
gearcase.
12. Align washer with gearcase hole and reinstall auger
shaft through gear.
IMPORTANT: Make sure auger shaft key aligns with gear
keyway.

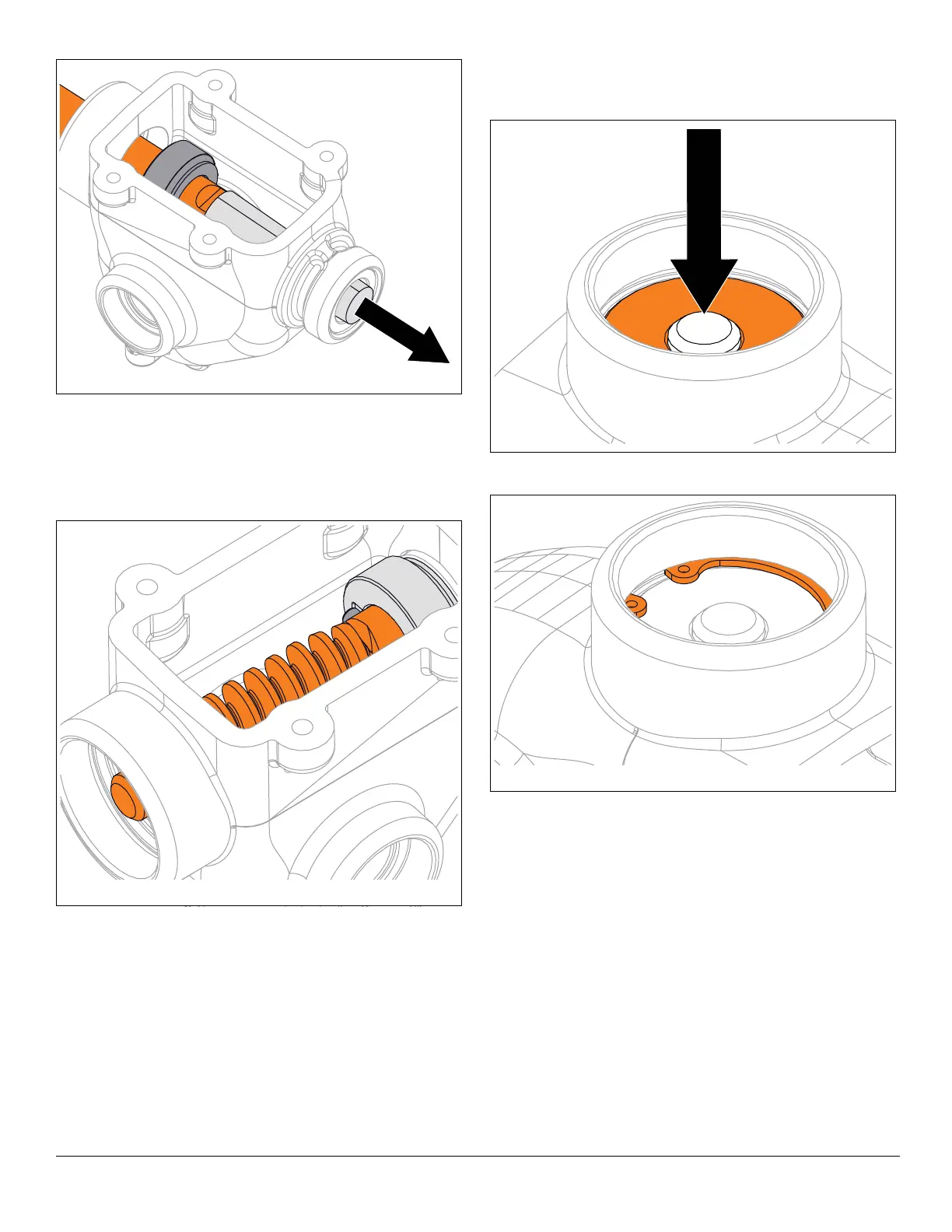

Figure 87
Figure 88
Figure 89
Figure 90
