MACHINE TRANSPORTATION
The machine can be transported using any of the procedures stated below.
CRANE
Before lifting with a crane, ensure the straps to chassis lifting/tie down points are securely fas-
tened. A view of the chassis lifting points is shown in gure 2-10.
FORKLIFT
A view of the forklift lifting procedure is shown in gure 2-10.
TIE DOWN/LIFT POINTS
(D-RINGS)
TIE DOWN/LIFT POINTS
(D-RINGS)
FORKLIFT FROM SIDE
Centre of gravity
Wheel load Decal
Centre of gravity

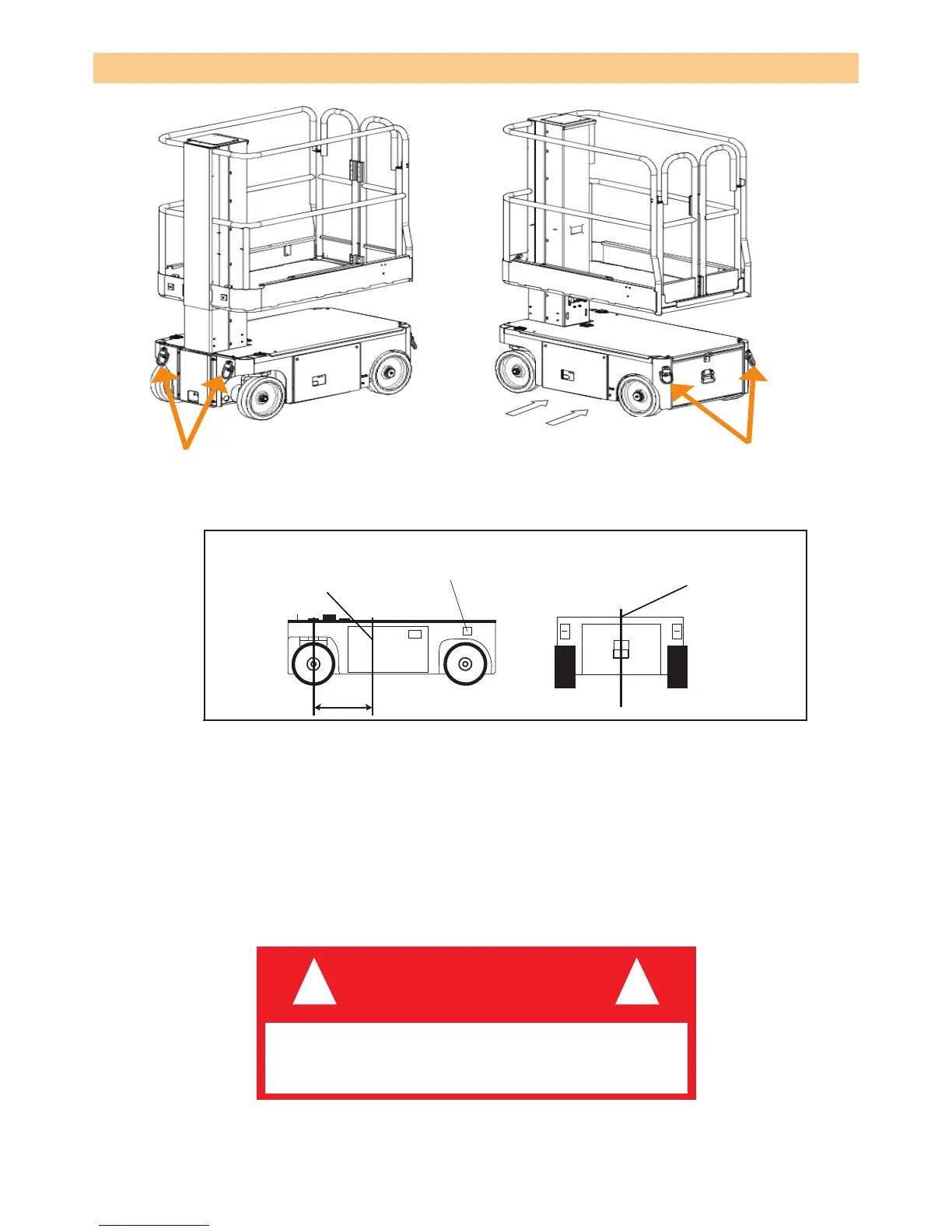

FIGURE 2-10: Safe transportation procedure
FIGURE 2-11: Centre of gravity when empty
!
D A N G E R
!
Forklift is for transport only. Refer to specications for weight of the machine on page 24 and be certain
that the forklift is of adequate capacity to lift the machine.
