Page 6-14

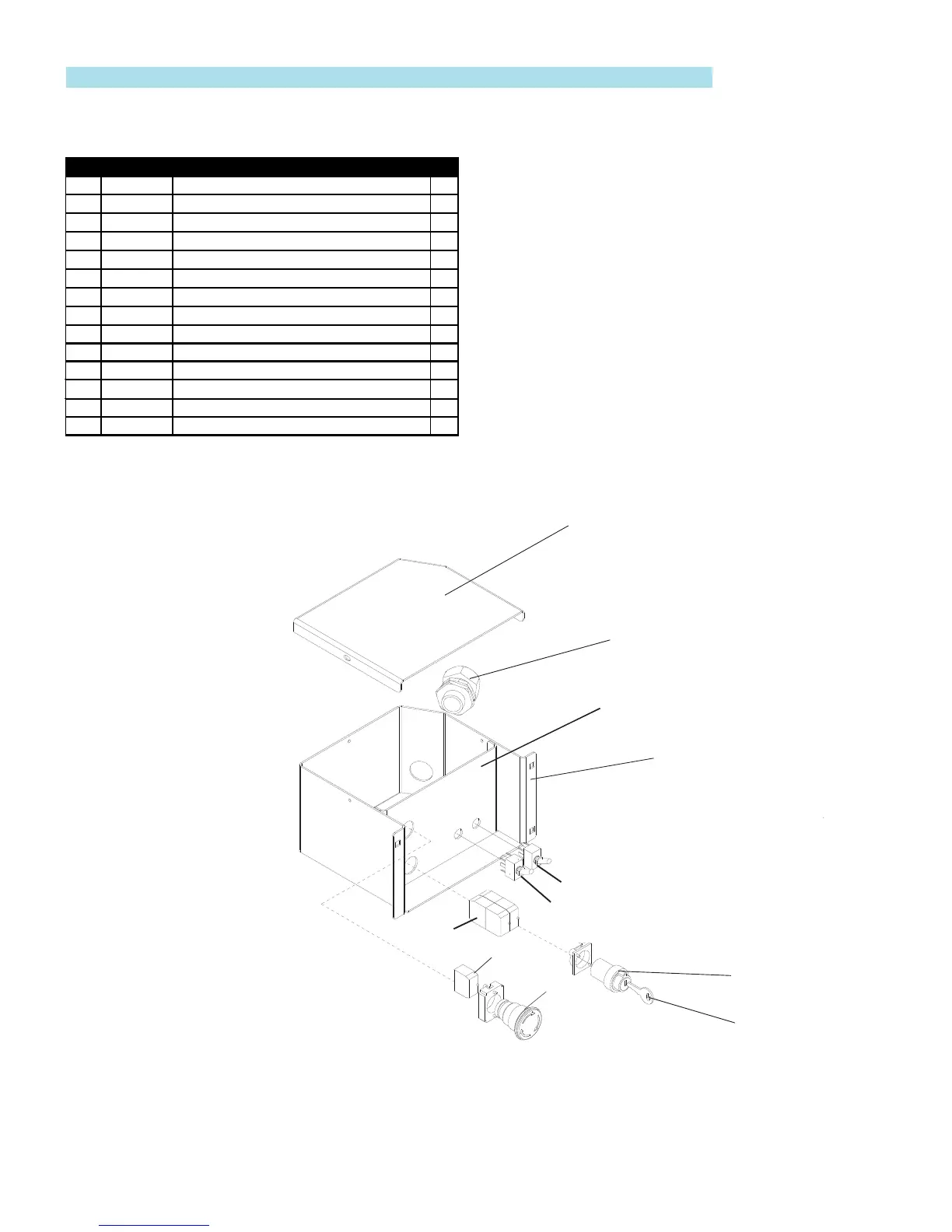

Illustrated Parts Breakdown - Lower Controls Assembly
505115-003
Lower Controls Assembly
1
2
3
5
6
12
7
4,10
Item Part Description QTY.
1 107148-000 LID, LCB BOX 1
2 505053-000 CABLE GLAND 1
3 107400-000 LCB BOX (WELDMENT) 1
4 510429-003 LCB OVERLAY 1
5 512543-000 KE Y S WITCH & MOUNT 1
6 455 KE Y 1
7 510524-000 E ME R GENCY STOP BUTTON & MOUNT 1
8 510527-000 S WITCH BLOCK (N/O) 4
9 510522-000 TOGGLE SWITCH (ON) -OFF-(ON) 1
10 510462-001 FR ONT PANE L, LCB BOX
1
11 510521-000 TOGGL E SWITCH ON-(ON)
1
12 510525-000 SWITCH BLOCK (NC)
1
1
8
9
11
To Next Page
