Page 6-16

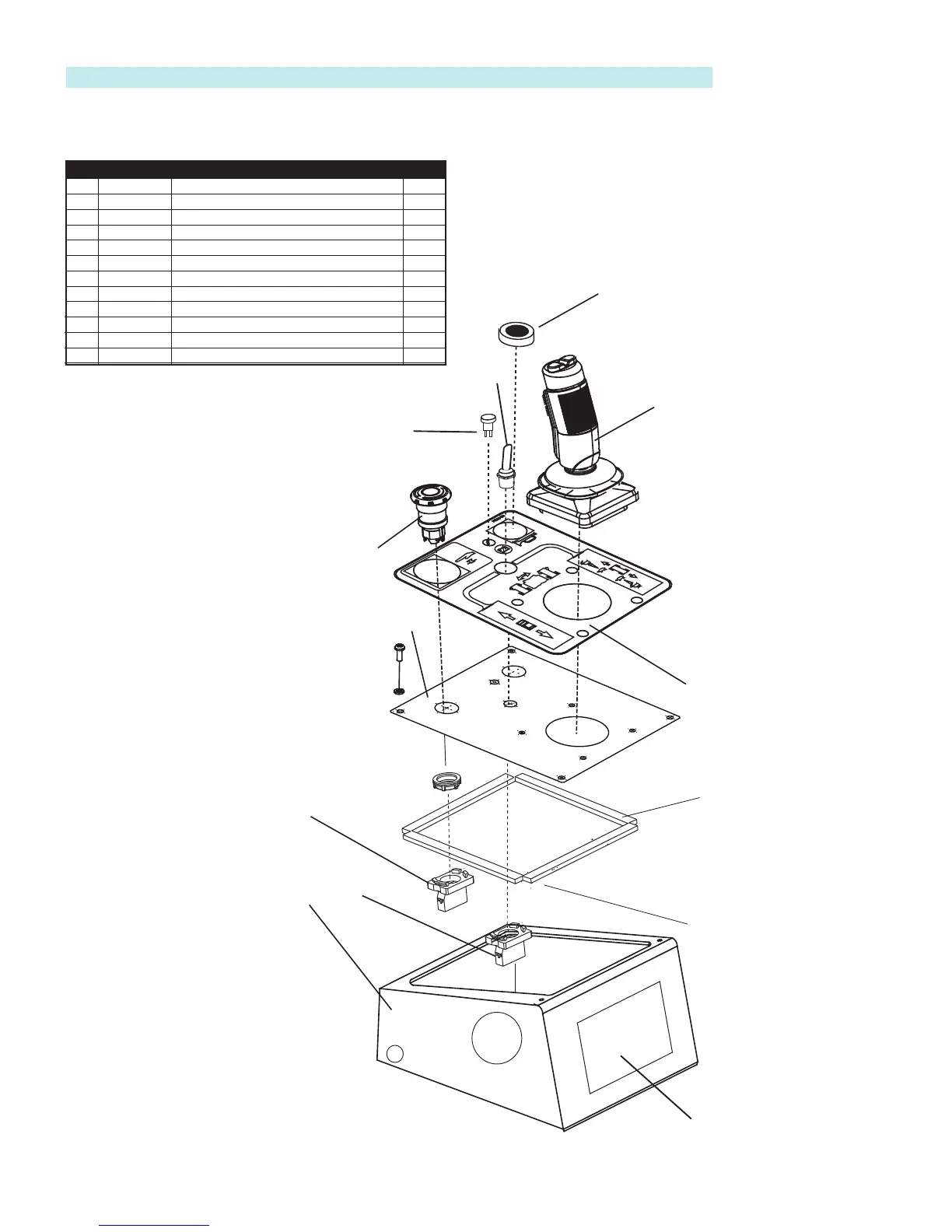

Illustrated Parts Breakdown - Upper Controls Assembly
505115-003
Upper Controls Assembly
502541-002
Item Part Description QTY.
1 510471-000 JOYSTICK 1
2 510428-001 OVERLAY 1
3 510461-000 MOUNTING PLATE 1
4 510645-000 SEAL 0.75
6 511156-000 UPPER CONTROL BOX (BOX ONLY) 1
7 510524-000 EMERGENCY STOP BUTTON 1
5
7
1
6
2
3
4
8
8 510541-000 TOGGLE SWITCH 1
9
9 510525-000 N/C CONTACT BLOCK 1
5 510542-000 HORN PUSH BUTTON
10 510528-000 RED L.E.D
1
1
5
11
11 510527-000 N/O CONTACT BLOCK 1
10
12
12 3087803 1EZCAL DISPLAY
