TM12
ENGLISH
When contacting Snorkel for service or parts information, be sure to include the model and
serial numbers from the equipment name plate. Should the name plate be missing, the serial
number is also stamped on top of the chassis above the front axle pivot.

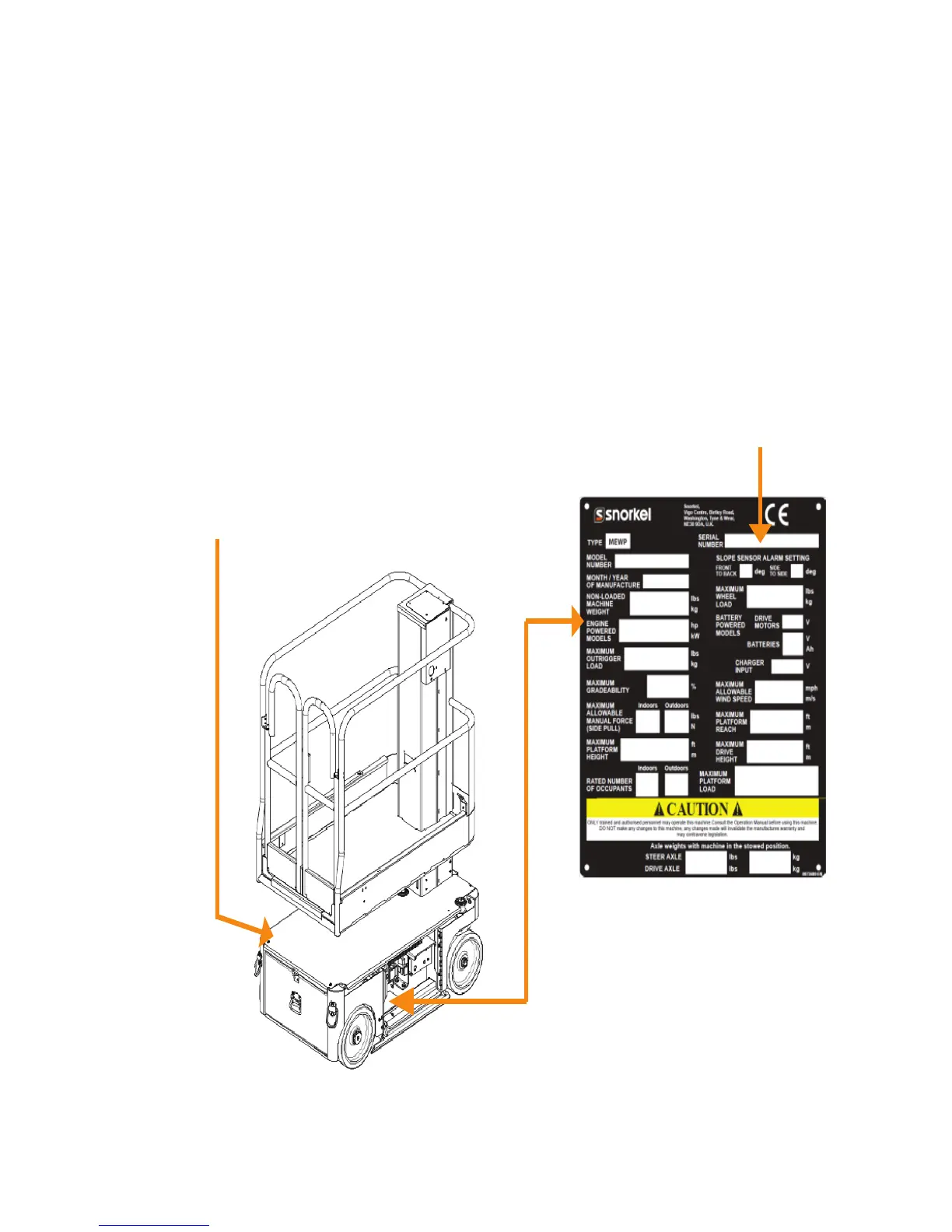

THE SERIAL NUMBER IS ON
THE NAME PLATE HERE
THE SERIAL NUMBER IS ALSO STAMPED
ON THE CHASSIS UNDER THE CHASSIS
COVER HERE
FIGURE 2-1: Serial number location on TM12
