Snorkel TM12 Service Manual

Hydraulics Section 3 - Service & Repair
Page 3-12
M AIN H YDRAULIC M ANIFOLD
Though it is not necessary to remove the manifold to perform all maintenance procedures, a determina-
tion should be made prior to beginning as to whether or not the manifold should be removed before main-
tenance procedures begin.

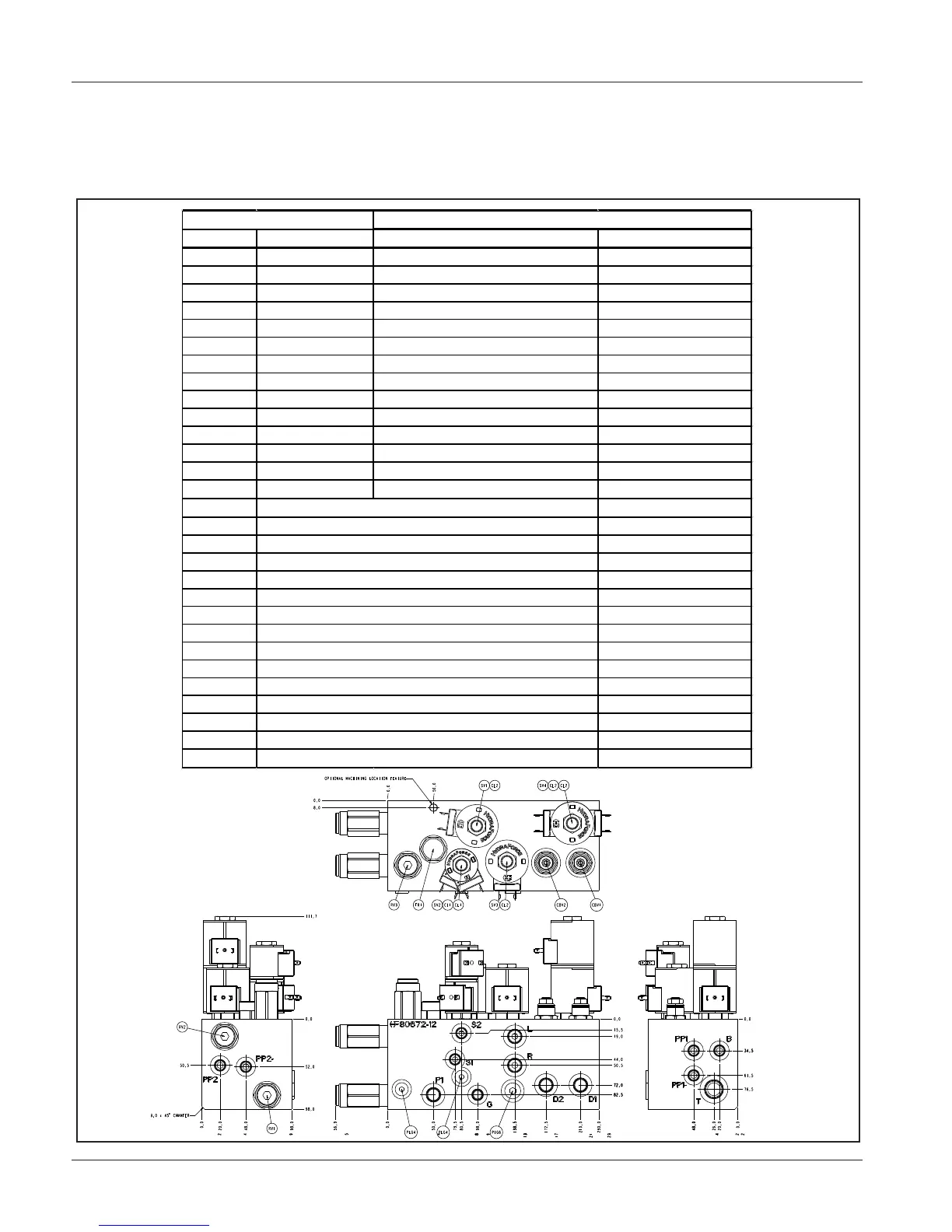

Figure 3-8: Hydraulic Manifold, Exploded View
SNORKEL PN PORT LOCATION END 'A' END 'B'
011941-005 D1 9/16" MALE UNF 9/16" MALE ORFS ST
011941-005 D2 9/16" MALE UNF 9/16" MALE ORFS ST
011941-005 R 9/16" MALE UNF 9/16" MALE ORFS ST
011941-005 L 9/16" MALE UNF 9/16" MALE ORFS ST
510695-000 G 7/16" MALE UNF TEST PORT
514362-000 S1 7/16" MALE UNF 9/16" MALE ORFS ST
514362-000 S2 7/16" MALE UNF 9/16" MALE ORFS ST
104779-000 P1 9/16" MALE UNF 11/16" MALE ORFS POS 90°
514362-000 PP1 7/16" MALE UNF 9/16" MALE ORFS ST
514362-000 PP1- 7/16" M
ALE UNF 9/16" MALE ORFS ST
514362-000 PP2 7/16" MALE UNF 9/16" MALE ORFS ST
514362-000 PP2- 7/16" MALE UNF 9/16" MALE ORFS ST
512951-000 T 3/4" MALE UNF 11/16" MALE ORFS ST
513054-000 B 7/16" MALE UNF(1mm inline restrictor) 9/16" MALE ORFS ST
SNORKEL PN VALVE LOCATION
513145-000 SV4
513146-000 SV1, SV3
513147-000 SV2
514384-000 RV3
513148-000 RV2
513149-000 RV1
513150-000 NOT SHOW
N
513151-000 PLG6
513152-000 PLG4
513153-000 CL2
513154-000 CL1
514385-000 FR1
513156-000 CBV1, CBV2
514386-000 BLKBLOCK
VALVE TYPE
ADAPTORS REQU
IRED
SAE PLUG,
SAE PLUG,
SOLENOID, 24V
SOLENOID, 24V
CARTRIDGE VALVE
COUNTERBALANCE VALVE
SOLENOID VALVE, SV10-47B, 24V
SOLENOID VALVE, SV10-40, 24V
SOLENOID VALVE, SV08-47A, 24V
RELIEF VALVE ASSY, RV08-20H, 24V
RELIEF VALVE ASSY, RV08-20H, 24V
EXPANDER PLUG,
RELIEF VALVE ASSY, RV08-22H, 24V
