Troubleshooting
4-4
4.3 T
ROUBLESHOOTING
T
ABLES
The next step is to refer to the Troubleshooting charts in Tables.
Refer to Hydraulics Section for detailed Troubleshooting information on the Pump/Motor
Controller.
Read and understand the Principles of Operation before commencing any trouble
shooting.
W A RNI N G
!
!
RISK of SERIOUS INJURY.
Ensure that the work platform is resting on a firm, level surface.
The elevating assembly must be supported by an overhead hoist when
troubleshooting and servicing the electrical/hydraulic system.
R
EPLACING THE EZ230 CONTROL MODULE
If for any reason you have to replace the EZ230 control module it is
important that you complete the following procedures:
W A RNING
!
!
If the EZ230 control module is replaced and/or
moved within the machine for any reason the tilt
sensor must be reset for zero ° using the
following procedure.
Failure to do so could result in serious injury or death.

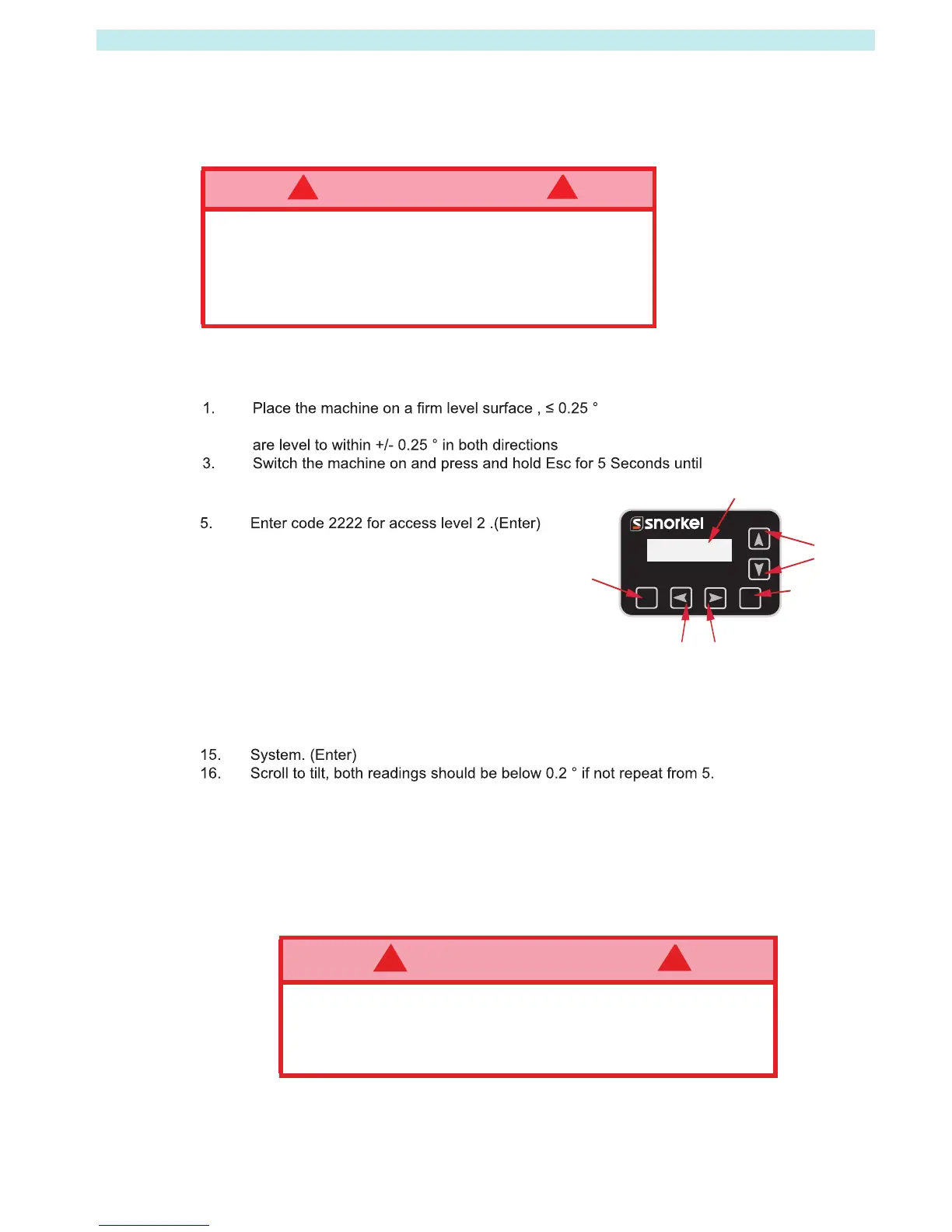

To follow this procedure you need to switch the Ezcal display in the upper Control box into
“calibration mode”.
2. Use a Gauge to confirm that the front and rear of the chassis
“Ezlift Menu” is displayed.
4. Scroll to access level.(Enter)
6. Scroll to setups.(Enter)
7. Change defaults. (Enter)
8. Select 1= Scissor. (Enter)
9. Scroll to model. (Enter)
10. Select 1 = TM12 (Enter followed by ESC)
11. Scroll to tilt setups . (Enter)
12. Calibrate level. (Enter)
13. Enter for yes.
To confirm calibration has worked switch the machine
of then back on again.
14. Scroll to Diagnostics. (Enter)
ESC
ENTER
Esc to leave
Sub-Menu
without saving.
Display
Enter to Save
Entry
Scroll
Left/Right
Change Entry
Up / Down
To Next Page
