Page 6-22

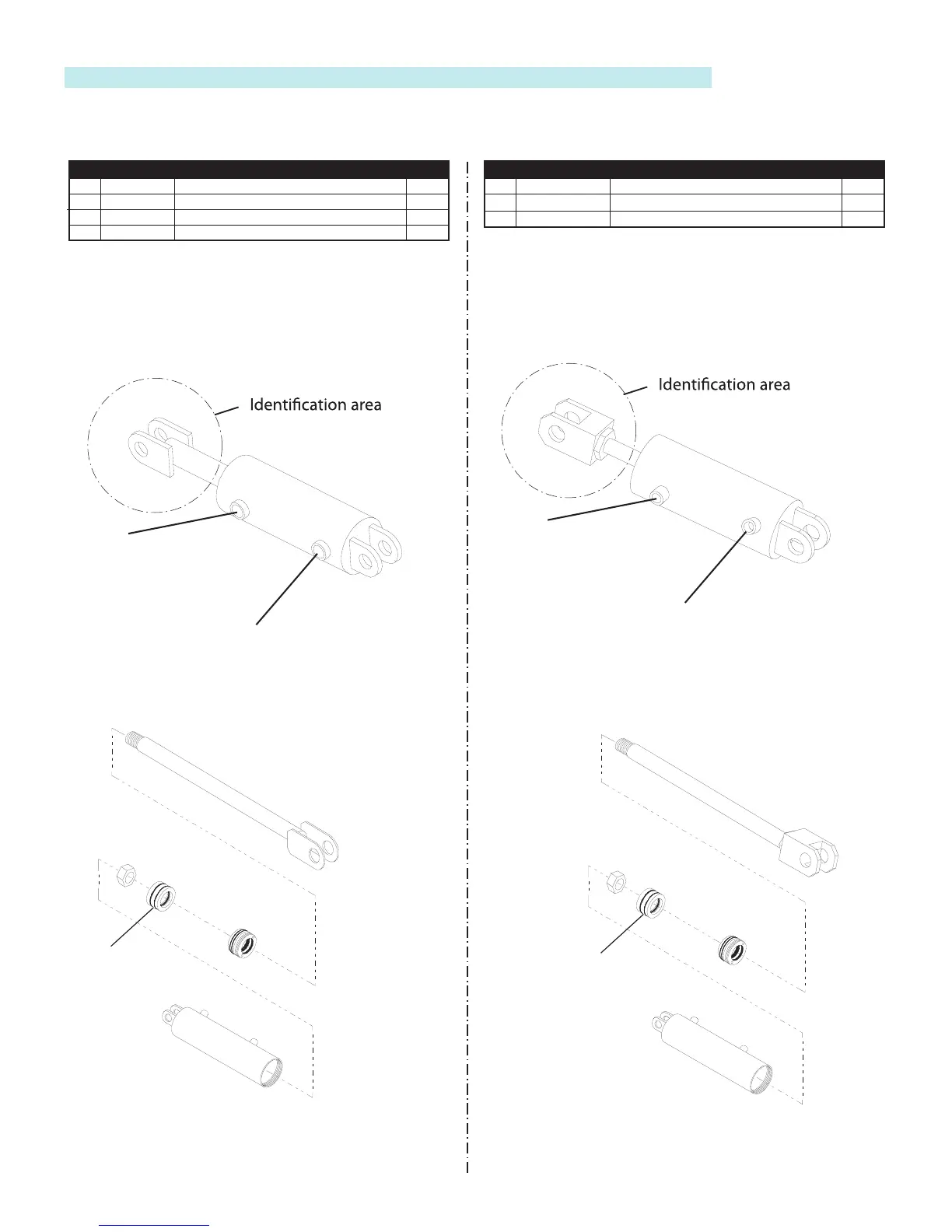

Illustrated Parts Breakdown - Hydraulic Cylinder Assembly (Steer / Brake)
Hydraulic Cylinder Assembly 510895-000 (Steer / Brake)
TYPE A
Item Part Description QTY.
1 510895-010 SEAL KIT, BRAKE/STEER CYLINDER 1
2510893-0002
1510893-0003
1
NOTE: FITTINGS SHOWN APPLY TO STEERING CYLINDER,
WHEN FITTING HOSES TO THE BRAKE CYLINDER FIT THE
1/8 M/M TO THE FULL BORE END AND THE 1/8 BLOCK 90
WITH 1/8 M/M TO THE ANNULAR END.
2
3
FITTING, -6 ORB, -4 JICM, 90 POS
FITTING, -6 ORB, -4 JICM, 90 POS
Item Part Description QTY.
1 505035-010 SEAL KIT, BRAKE/STEER CYLINDER (sn < 054179) 1
2510893-0002
1510893-0003
512795-0001
SEAL KIT, BRAKE/STEER CYLINDER (sn 054180 +)
FITTING, -6 ORB, -4 JICM, 90 POS
FITTING, -6 ORB, -4 JICM, 90 POS
1
TYPE B
2
3
1
