NETYS RT 5 - 7 - 9 - 11 kVA - 551570A - SOCOMEC
28
EN
Computers recognize the USB as a virtual COM port. From Windows® 10
operating system version, the native operating system driver is
recommended. For operating system version earlier than Windows® 10,
please download the driver from the following address:
https://www.socomec.com/netys-manuals
5.7. WEB/SNMP Card (option)
With this card installed (inside the smart slot), the UPS can be connected directly to
a LAN (RJ45 ethernet) and controlled remotely from a WEB browser using TCP/IP
protocol. Reference should be made to the dedicated literature for a full description
of the functionalities.
5.8. RS-485 Port
You can use a RS-485 cable (user supplied) to connect the UPS with a computer
and install the LocalView or Building Managment System (BMS) software to check
and monitor the UPS status.
This interface is required to run the Local View UPS monitoring and shutdown
point-to-point solution for Windows®, Linux® and Mac OS X® operating systems.
• The RS-485 port provides the following functions
- RS-485 communication (baud rate: 2400/ 9600)
- UPS conguration
- Firmware upgrade (baud rate: 9600)

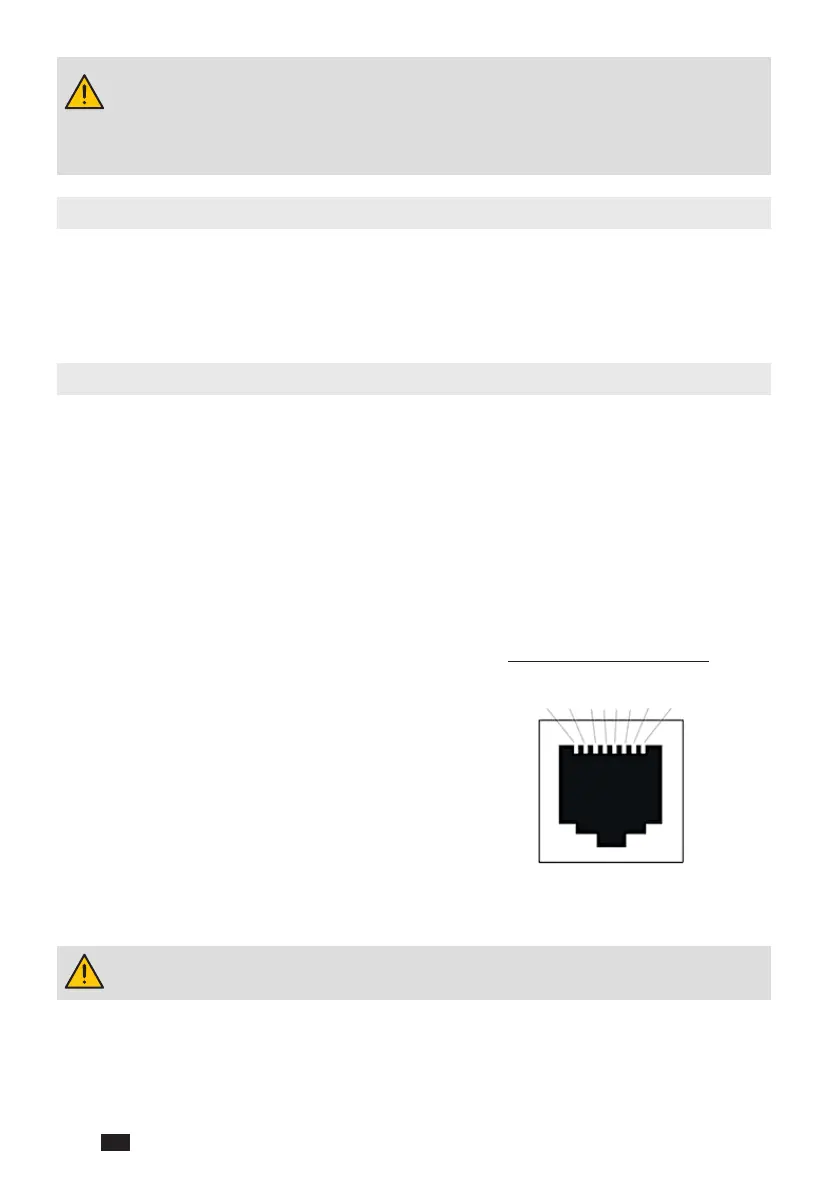

1 2 3 4 5 6 7 8
RS 485 connector pinout
• Pin Assignment
- PIN 7: D+
- PIN 8: D-
• Hardware
- Baud Rate: 9600bps
- Data Length: 8 bit
- Stop Bit: 1 bit
- Parity: None
The RS485 port is necesary for Lithium Ion Battery connection. If you congure
the UPS with LIB, the RS-485 port will immediately be reserved for the LIB.
