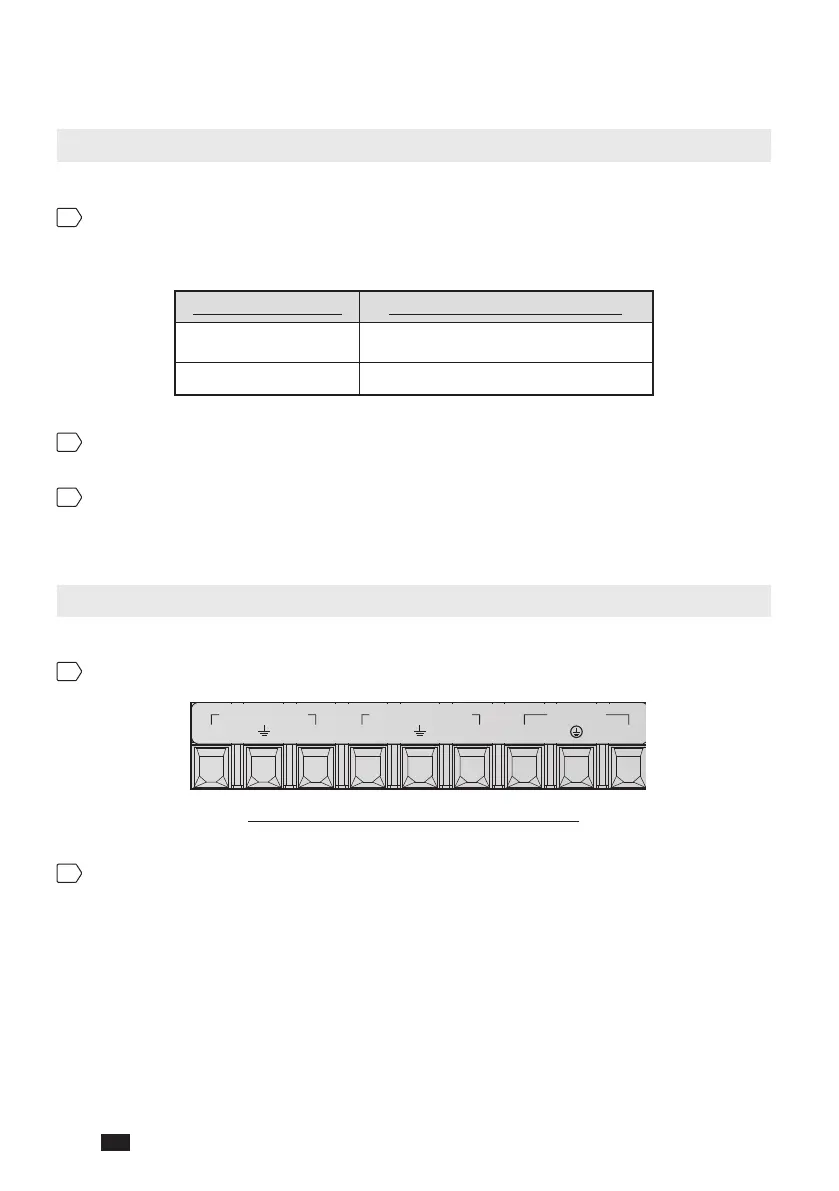

7. CONNECTION AND WIRING
7.1. UPS Connection Warnings
1
When connecting the UPS to the mains and the loads, it is highly recommended that
you install the protective devices. Please refer to the table below and see Figure 7-3.
UPS Power Rating Suggested Protective Device
5 / 7 kVA D curve-50A circuit breaker
9 / 11 kVA D curve-80A circuit breaker
2
The protective devices must use approved components that meet safety
certications.
3
The power supplying to the UPS must be single-phase in accordance with the
unit's rating label, and the UPS must be properly grounded.
7.2. Input/ Output Connection
1
Please see the gures below for input/ output connection.
UPS OUTPUT AC INPUT
NLNL NL
POWER SHARE
PARALLEL OUTPUT
(Figure 7-1: Input/ Output Wiring Terminal Block)
2
Cable Selection:
For the specications of input/ output cables, please refer to Table 7-1.
