socomec NETYS RT 5000 User Manual

NETYS RT 5 - 7 - 9 - 11 kVA - 551570A - SOCOMEC
35
EN

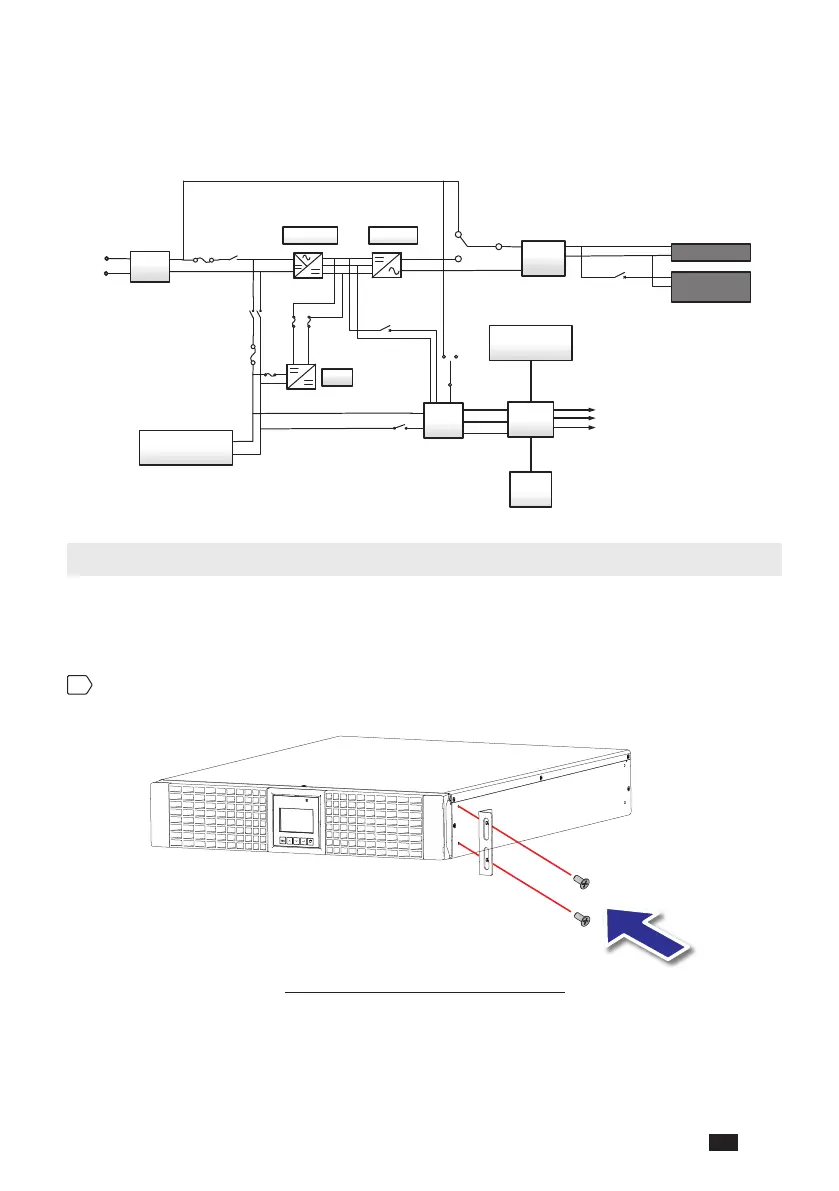

6. INSTALLATION
Please refer to the system block diagram and related information below for correct
installation.
A2D&D2D Inverter
Output
CHG
Inverter relay
Bypass
Output relay
Input relay
Power share /
Parallel output
Input
EMI
Output
EMI
Aux
Power
ExternalInternal /
Battery Pack
Control
Board
Communication
Board
LCD
Board
To A2D/D2D
To inverter
To charger
I/P
6.1. Rack Mounting
Use the included bracket ears and screws to mount the UPS in a rack by following
the procedures below.
1
Attach the included bracket ears to the lateral mounting holes of the UPS. See
Figure 6-1.
S
ESC
(Figure 6-1: UPS Bracket Ear Installation)
