10.3. Lithium-ion battery module
10.3.1. Product Introduction
The lithium-ion battery pack provides DC power and maintains inverter operation to
supply stable power to the critical loads connected to the UPS when the main AC
source is abnormal. It must operate in conjunction with a corresponding Socomec
Netys RT series UPS model. Please see Figure 10-22 and Figure 10-23 to check
its appearance and block diagram.

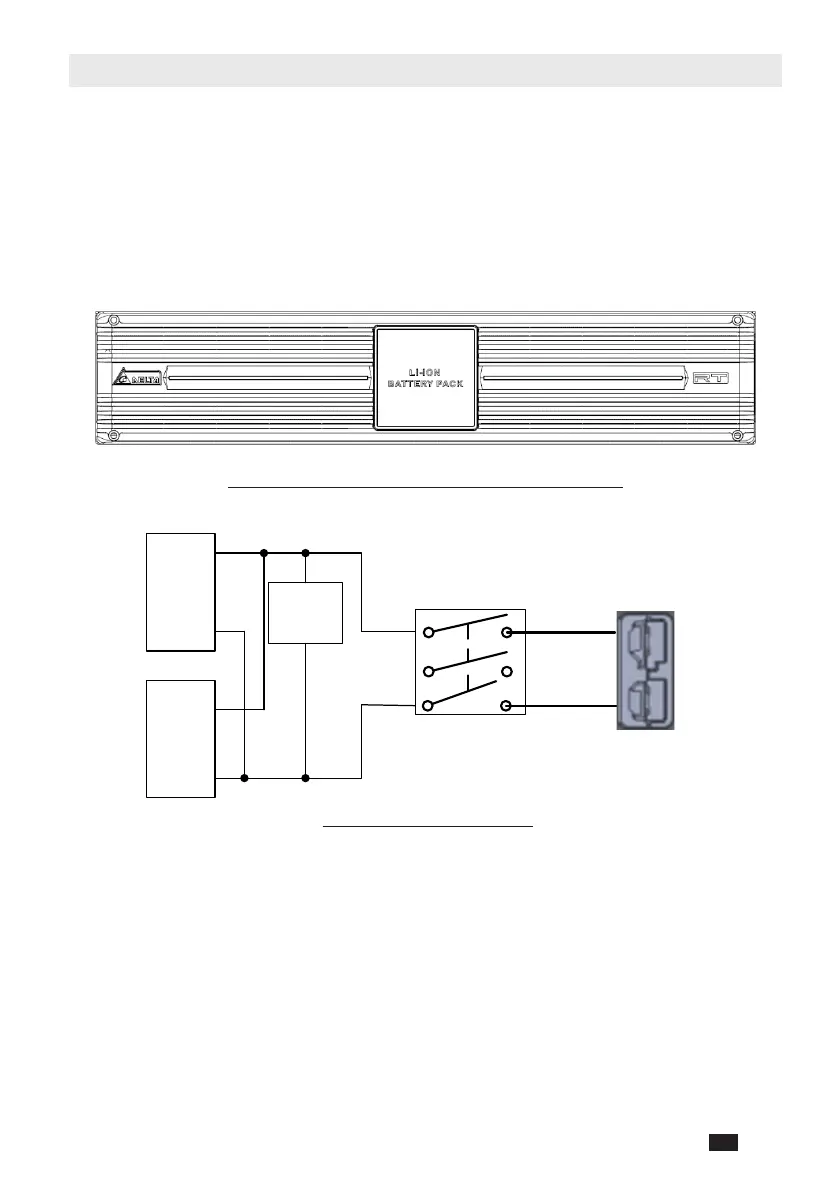

(Figure 10-22: Front View of the Lithium-ion Battery Pack)
BM1
BM2
+
+
-
-
Breaker
Connector
BMS
(Figure 10-23: Block Diagram)
