The No.
1
~
11
shown in Figure 10-4 ~ Figure 10-13 represent the standard
accessories mentioned in §10.1.7 Package List.
1

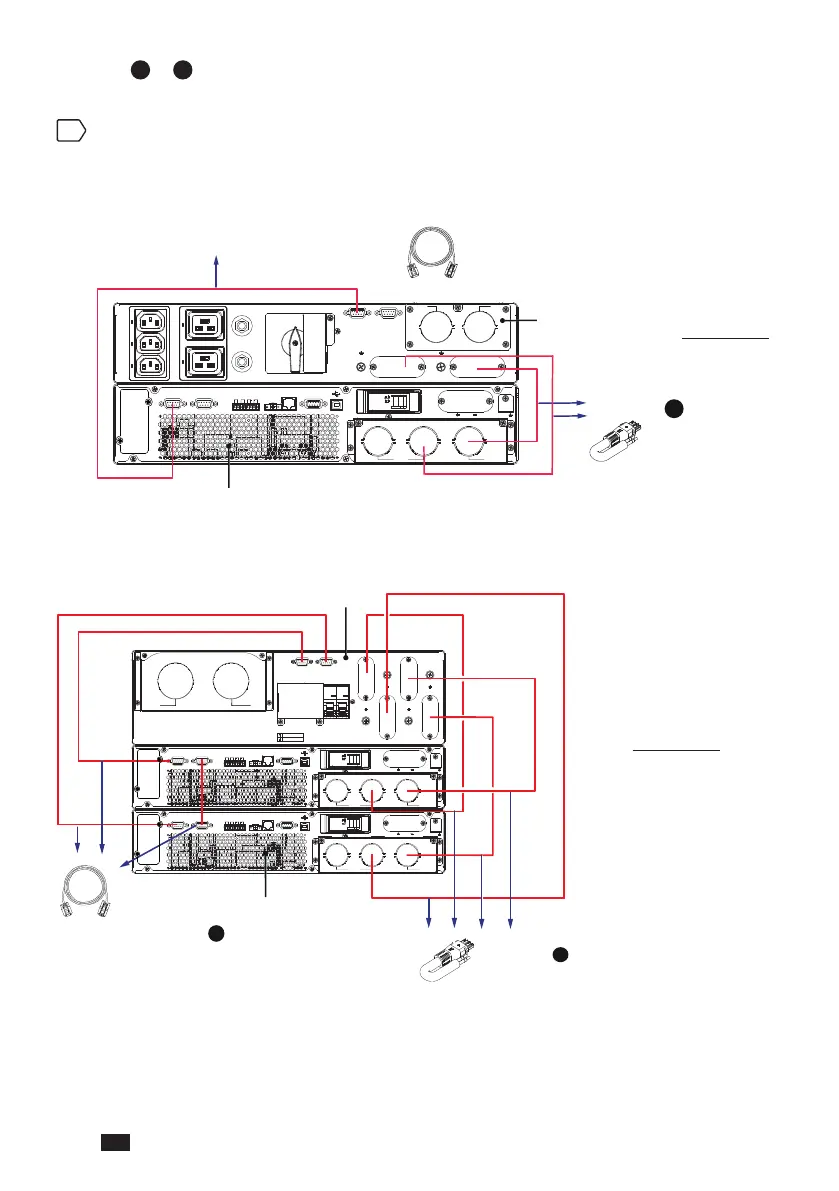

Please see Figure 10-8 and Figure 10-9 for a general concept of wiring.
NRT3-OP-MBP
WARNING:
OPENING THIS COVER PLATE WILL CAUSE
INVERTER SHUTDOWN.
ONLY AUTHORIZED SERVICE PERSONNEL
CAN OPEN AND OPERATE IT.
MANUAL BYPASS SWITCH
TO UPS OUTPUT
L N
TO UPS INPUT
L N
TO UPS PARALLEL TO UPS PAR ALLEL
INPUTOUTPUT
OUTPUT SOCKET-2
20A MAX. PER OUTLET
OUTPUT SOCKET-1
10A MAX. PER OUTLET
OUTPUT BREAKER-2
250V AC 25A
OUTPUT BREAKER-1
250V AC 20A
SMART SLOT
DRY CONTACT
P2
P3
P4
RS-485
RS-232
P1
REPO
EXTERNAL BATT.
CONNECTOR
240V DC 46A
PARALLEL PARALLEL
INPUT
BREAKER
TMOV
TUPNITUPTUO
MBP
UPS
Wire × 2
( )
9
Parallel Cable
× 1 ( provided in UPS package )6
(Figure 10-8)
NRT3-OP-PMB
SMART SLOT
DRY CONTACT
P2
P3 P4
RS-485
RS-232
P1
REPO
EXTERNAL BATT.
CONNECTOR
240V DC 46A
PARALLEL PARALLEL
INPUT
BREAKER
TMOV
OUTPUT
INPUT
SMART SLOT
DRY CONTACT
P2 P3 P4
RS-485
RS-232
P1
REPO
EXTERNAL BATT.
CONNECTOR
240V DC 46A
PARALLEL PARALLEL
INPUT
BREAKER
TMOV
OUTPUT
INPUT
TO UPS PARALLELTO UPS PARALLEL
TO UPS-1 OUTPUT
BYPASS MODE
UPS MODE
UPS-2UPS-1
OUTPUT BREAKERBYPASS BREAKER
WARNING:
ONLY AUTHORIZED SERVICE PERSONNEL
CAN REMOVE THIS COVER PLATE.
REMOVING THIS COVER PLATE WILL CAUSE
THE INVERTER TO SHUTDOWN. SEE THE
USERS MANUAL FOR INSTRUCTIONS.
TO UPS-1 INPUT
TO UPS-2 OUTPUT
TO UPS-2 INPUT
N L N L
N L N L
MBP
Wire
× 4 ( )
9
UPS
Parallel Cable × 1 ( )
11
Parallel Cable × 2 (provided in UPS package)
INPUTOUTPUT
(Figure 10-9)
