- 4 -
SR4 MANUAL
1- GETTING SR4 OUT OF THE PACKING
NOTE
!
:
Prior to assembling your kart, check the above described elements and familiarize
yourself with them.
The part numbers of the various items can be found in the “spare parts catalogue “.

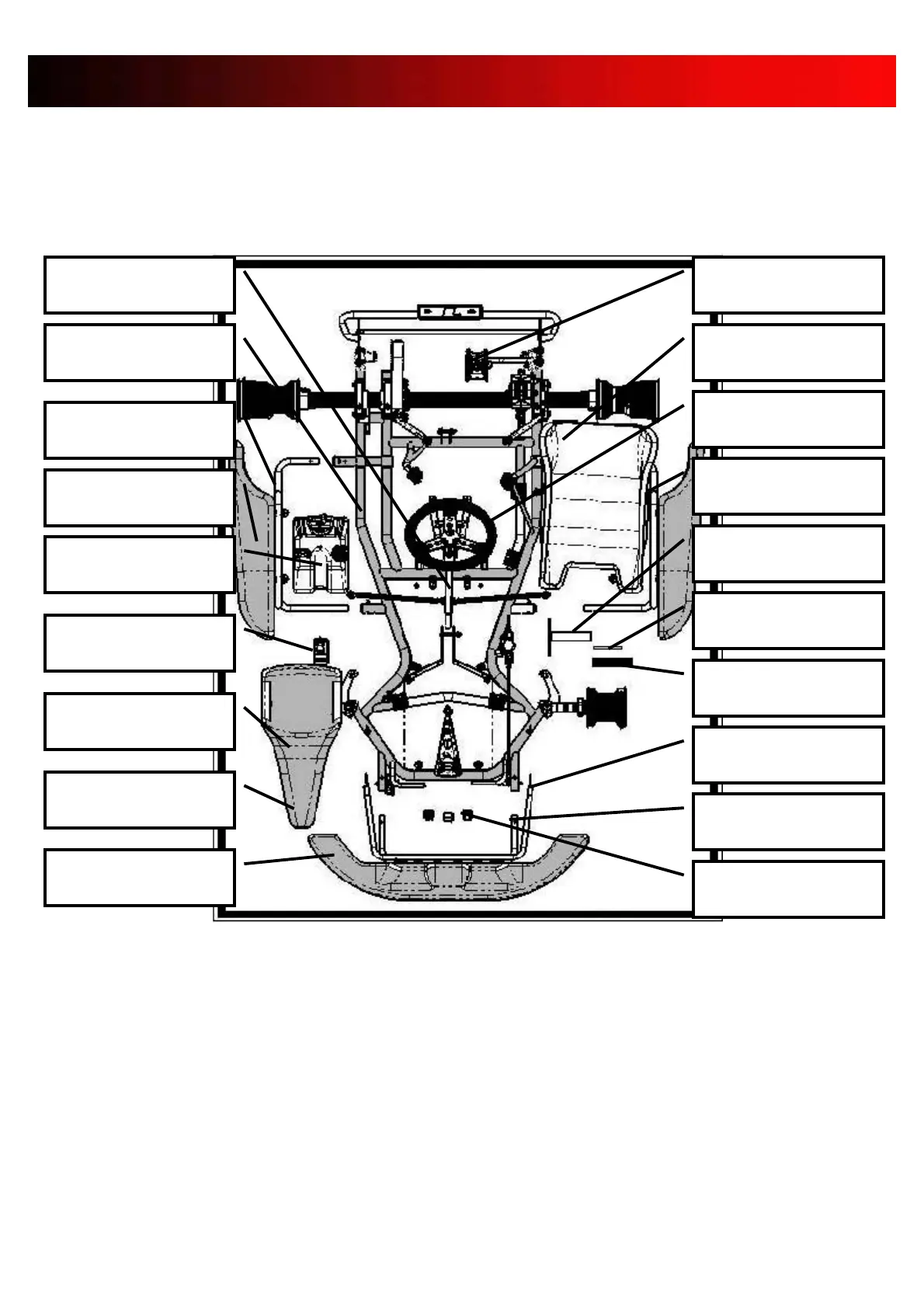

FRAME SR4
KG UNICO
SIDE POD
LEFT SIDE POD
SUPPORT
RIGHT SIDE POD
SUPPORT
UPPER NASSAU
PANNEL
LOWER NASSAU
PANNEL
SPOILER
FIXING KIT
FUEL TANK
OVERFLOW
BOTTLE
STEERING
WHEEL
SEAT
UPPER SPOILER
SUPPORT
LOWER SPOILER
SUPPORT
STUB AXLE SPACER
AJUSTER
STUB AXLE SCREW
ADJUSTER
SLOTTED NUT KEY
STEERING COLUMN
ASSY
EXHAUST PIPE
SUPPORT
MAX / FA
4
6
Table of Contents
Default Chapter
2
Table of Contents
2
Safety Instructions
4
Preparing the Assembly
5
1- Getting Sr4 out of the Packing
5
2- Tools for Assembly
6
3- Maintenance Products
6
Sequence of Assembly
7
4- Assembly of the Steering Column and of the Steering Wheel
8
5- Assembly of the Fuel Tank and of the Overflow Bottle
10
6- Assembly of the Seat and of the Seat Stiffeners
11
7-Assembly of the Kg Unico Body Work
14
8- Assembly of the Sodi Body Work
17
9- Starting Your Sr4
21
10- Table of the Standard Adjustments
22
11- Adjustment of the Front End
23
Standard Adjustments
26
12- Adjustment of the Rear End
29
13- Adjustment of the Seat
32
Maintenance
33
14- Tyres
33
15- Brake Pads Replacement
35
16- Bleeding of the Brake System
36
17- Cleaning the Chassis
37
18- Maintenance Plan
38
19- Trouble Shooting
39
