Sodi SR4 User Manual

- 7 -
SR4 MANUAL

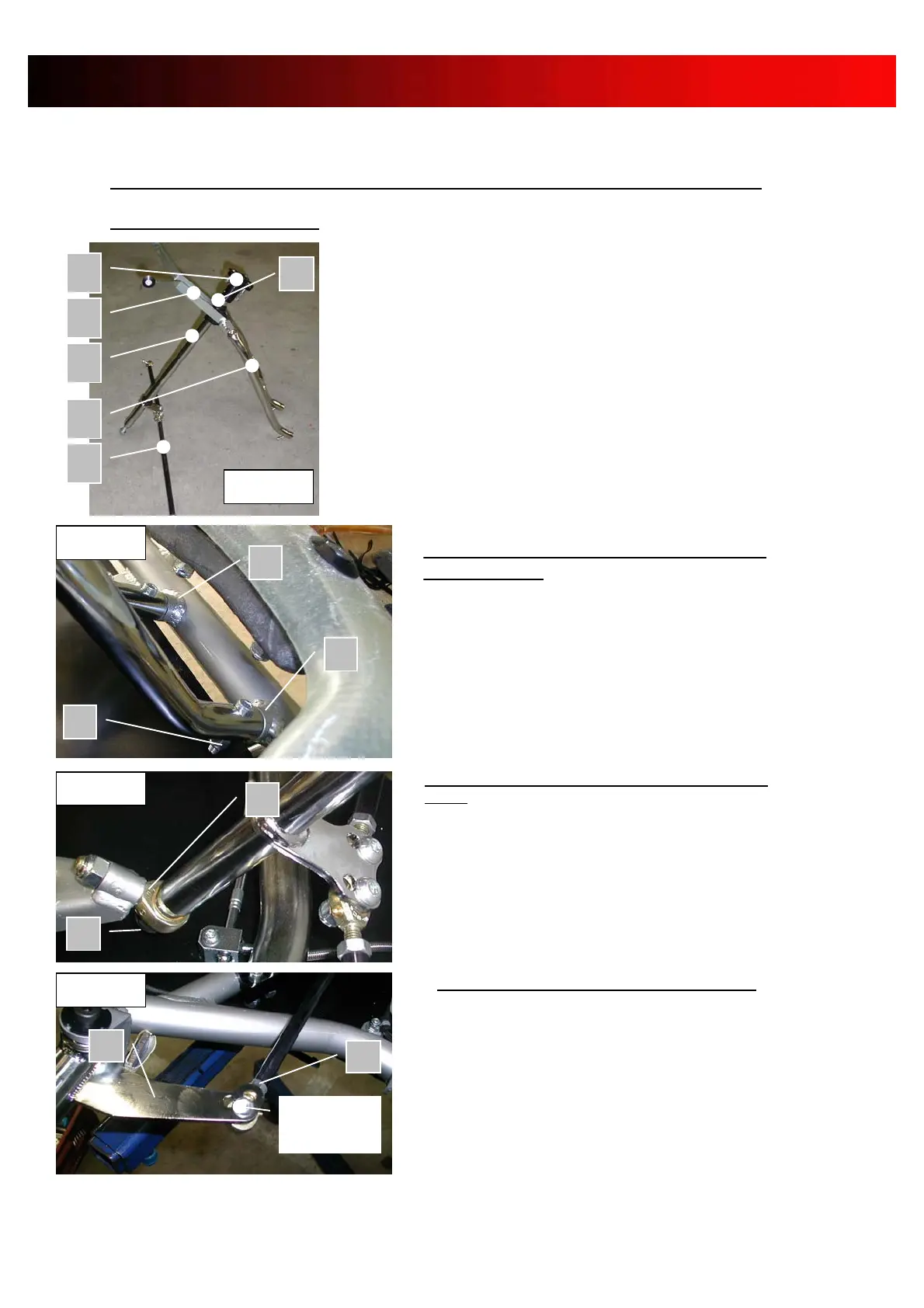

4.1 ASSEMBLY OF THE STEERING COLUMN
SUPPORT (PIC 2)
 Place the steering column support on the two pins
canons (1) and (2).
 Put the Chc M6x30 (3) screws + nylstop M6
bolts as indicated in picture 2 .
 Tighten .
4- ASSEMBLY OF THE STEERING COLUMN AND STEERING WHEEL.
THE SET CONSISTS IN!:!
 one plastic steering column support (1).
 One steering wheel support (2).
 Two nassau panel supports (3).
 One steering column (4).
 One steering column support (5).
 Two steering tie rods + ball joints (6).
 Raise the set as in picture 1 .
4-
6
4
2
5
3
Photo 1
2
1
3
4
5
7
6
Outer
hole
4
4.2 ASSEMBLY OF THE STEERING COLUMN
(PIC 3)
 Insert the threaded end of the steering
column in the ball joint (4).
 Place the bolt (5).
 Tighten.
4.3 ASSEMBLY OF THE TIE-RODS (PIC 4)
after cutting the tie-wrap maintaining the stub axles :
 Place the ball joints (6) under the stub axle arm
(7).
 Insert the Bhc M8x30 screw in the outer hole of
the stub axle arm .
 Place the washer on top of the ball joint and
insert the screw.
 Place the M8 bolt and tighten.
PIC 2
PIC 4
7
PIC 3
1
PIC 1
