Sodi SR4 User Manual

- 16 -
SR4 MANUAL
8- ASSEMBLY OF THE SODI BODY WORK
8.1 ASSEMBLY OF THE SODI SIDE PODS

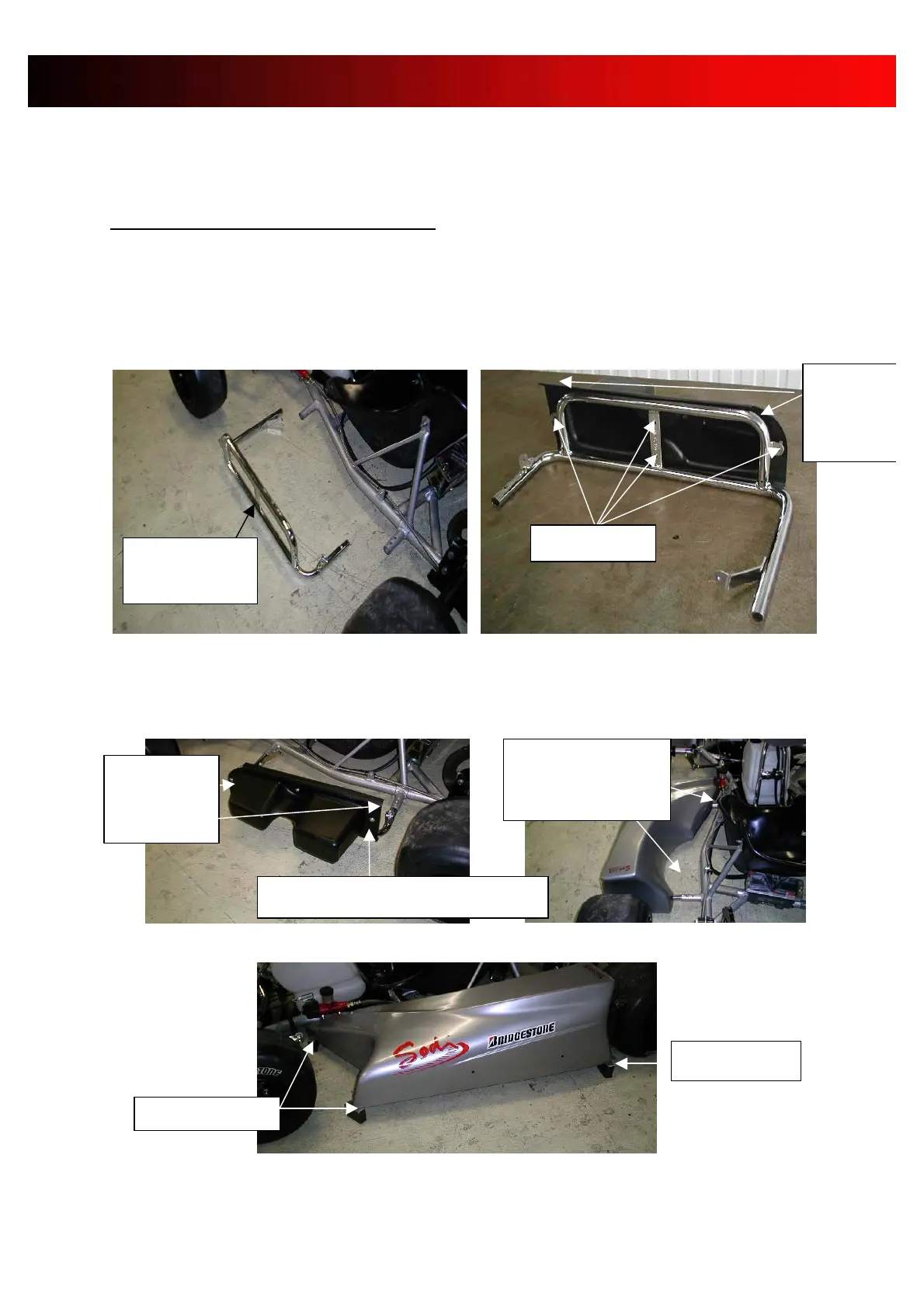

 Take the left side pod and the left lateral shock absorber.
 Place the shock absorber on the side pod support. ATTENTION!: the rounded edges must
face the upper part of the support . Assemble the absorber with 4 BHC M6x16 panhead
screws and d6 D18 th 1.2 zinc flat washers under the screw heads . ( detail in SR4 spare
parts catalogue ).
 Assemble the set “ side pod support + absorber”on the frame. Mount the tyres , pressure 1.2
bars. Lay the side pod on its support. Adjust with 2 X 40mm wedges in the front, and 1
43mm wedge at the rear.
Side pod
support , left
Position
of the
rounded
edge
M6 Bolts
Boltsnylstop
40mm Wedge
43mm Wedge
Position of
the rounded
edge
2 connection points
inside the side pod
support.
Bhc M6x16 screw + washer d6 D18
