- 17 -
SR4 MANUAL

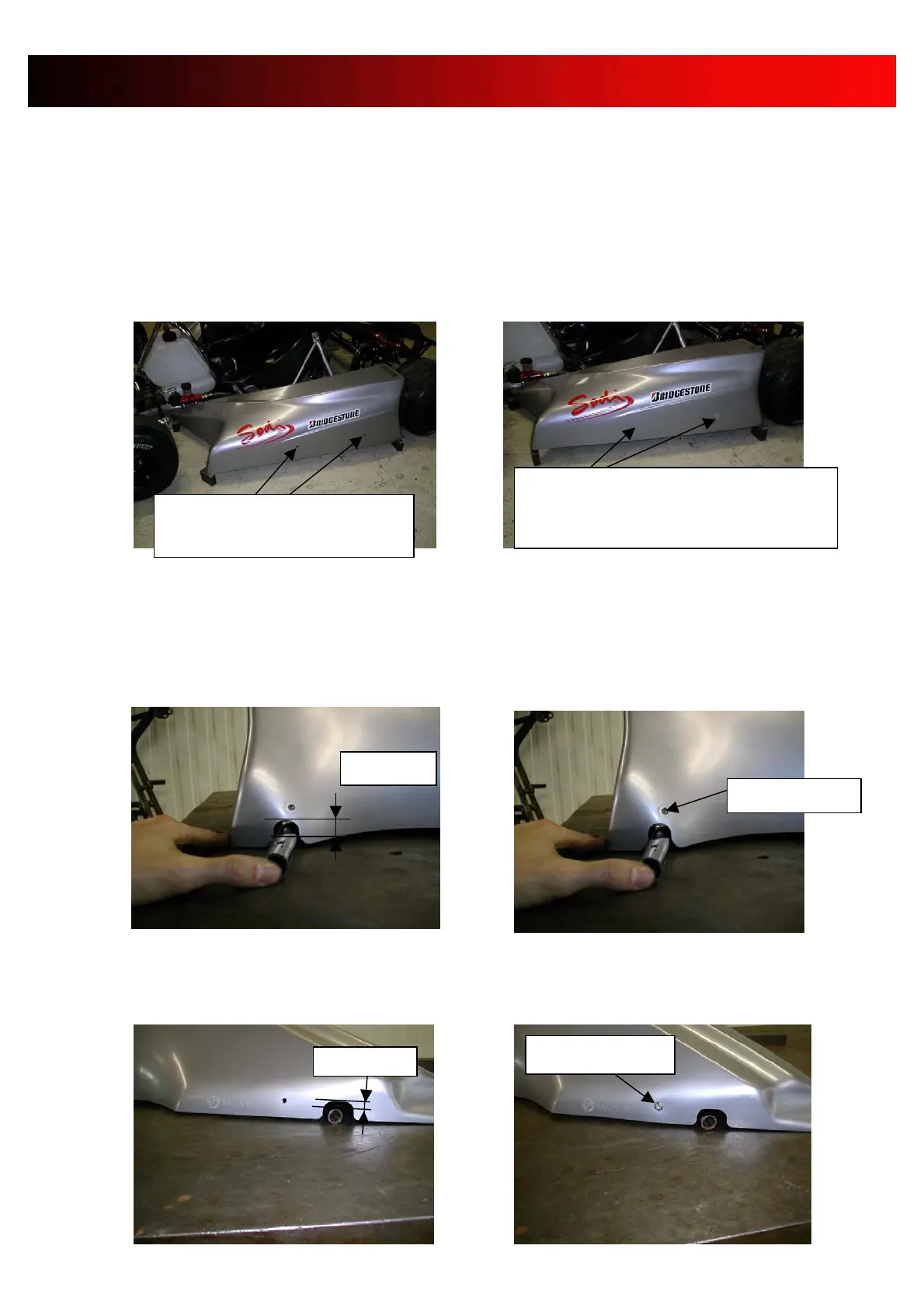

Drill two 6.5 mm diameter holes in the absorber , through the holes in the side pod. Remove
the set “ side pod + side pod support!“ from the frame. Assemble the side pod on the
absorber ; screws and conical washers facing outside , bolts and d6 D18 th 1.2 washers
facing inside.
Adjust the rear side of the side pod on the support!; check the distance of 5 to 6 mm as
shown. Assemble with a BHC M6x16 screw and bolt.
Adjust the front end of the side pod on the support. Check the distance of 5 to 6 mm as
shown. Assemble with a BHC screw and bolt .
2 holes in the absorber through
the holes of the side pod
2 conical washers + FHC 6x25 screws
and bolts + washers d6 D18 inside the
absorber
5 – 6 mm
mmmm
BHC M6x16
screw
5 – 6 mm
BHC M6x16
