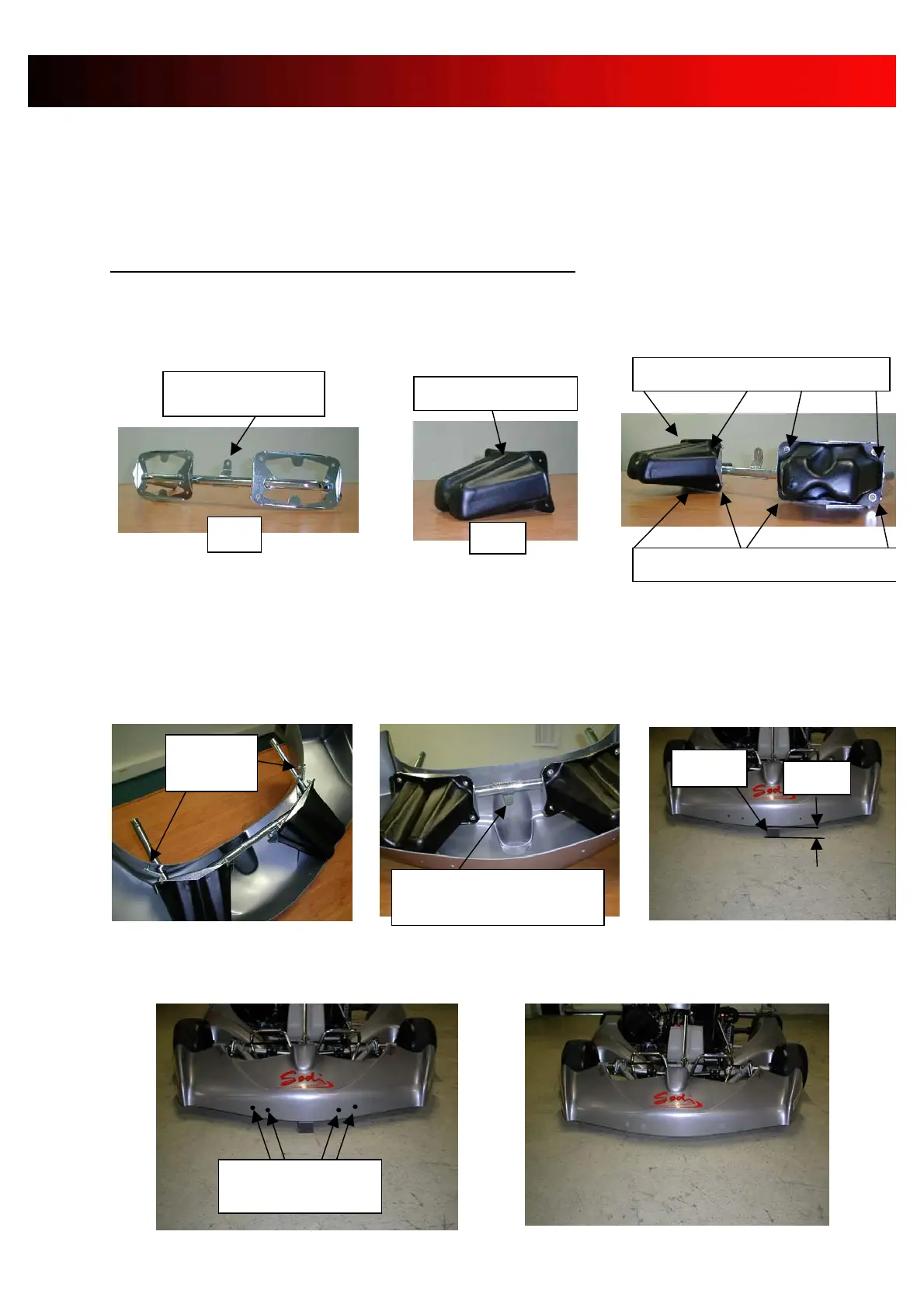

8.2 ASSEMBLY OF THE SPOILER AND THE NASSAU PANEL
Place the two shock absorbers on the lower spoiler support. Assemble the two absorbers
with BHC M6x16 panhead screw + d6 D18 th 1.2 washer under the screw head.
Place the spoiler on the set!«!lower spoiler support + absorber!»!and assemble with 2 BHC
M6x16 screws.
Insert the support in the frame. Put the wheels on . Set the pressure at 1.2 bars . Adjust
the 43 mm ground clearance with a wedge in the middle.
Drill 5 mm diameter holes in the absorbers , through the holes in the spoiler. Assemble the
spoiler with 4 d5 blind rivets.
