- 15 -
SR4 MANUAL
ASSEMBLY OF THE KG UNICO BODYWORK

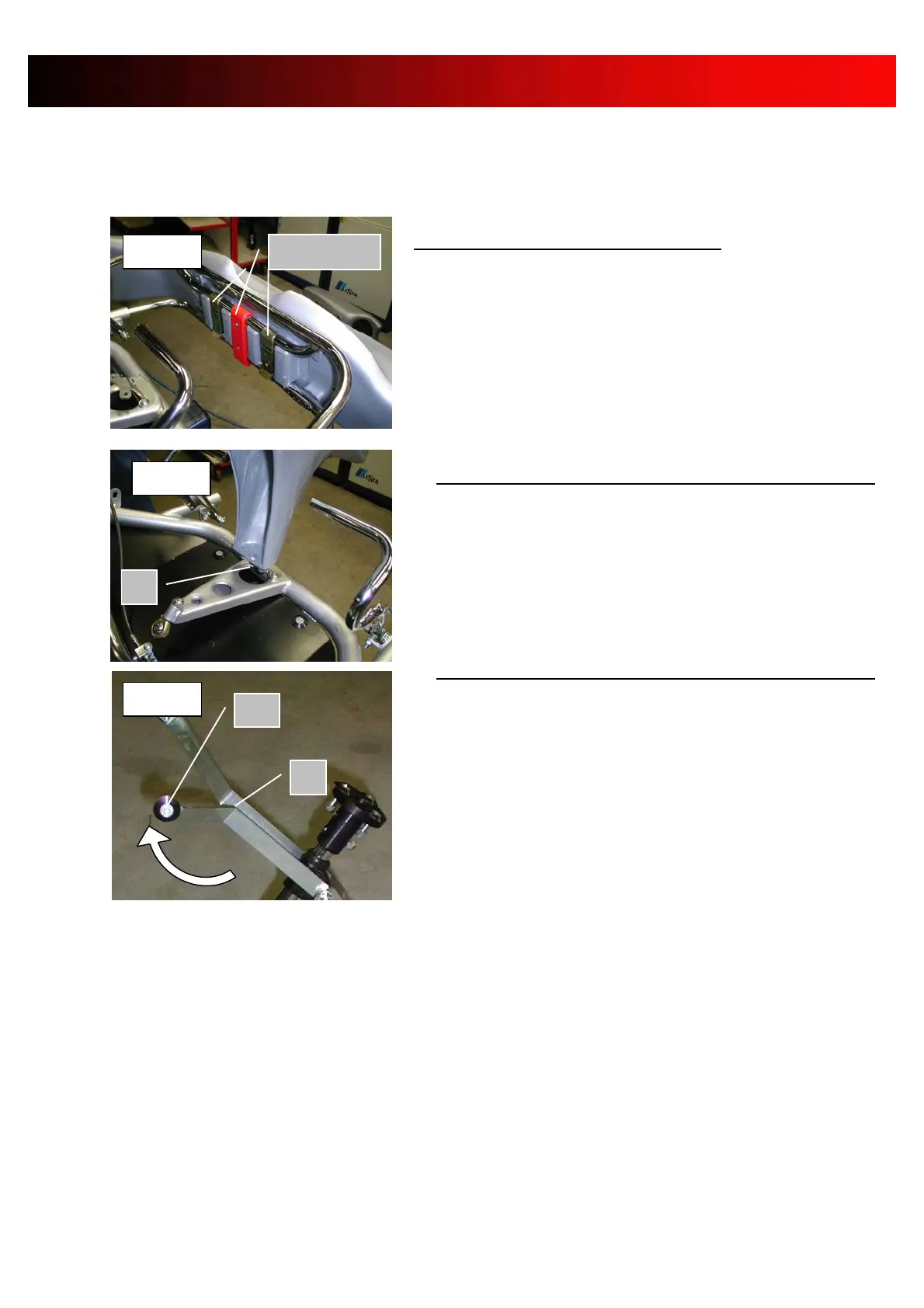

7-6 ASSEMBLY OF THE SPOILER (PIC 5)
Place the fixing kit between the upper and lower
spoiler support.
Insert the spoiler between the two supports, and
tighten.
7-7 ASSEMBLY OF THE LOWER NASSAU PANNEL (PIC 6)
Assemble the upper and lower nassau panel with the
supplied bolts and screws.
Position the nassau panel on the connection part (8)
Insert the screws
Place the bolts and tighten.
7-8 ASSEMBLY OF THE UPPER NASSAU PANEL (PIC 7)
Tilt the upper nassau panel supports (9) to the adequate
position.
Mark the points to be drilled (10).
Drill to diameter 6.5.
Insert the screws.
Place the bolts and tighten.
For details and references of screws , bolts and washers, please refer to
the SR4 spare parts catalogue .
NOTE!:
PIC 5
PIC 6
PIC 7
Fixation Kit
KI
8
9
10
