- 14 -
SR4 MANUAL
Photo 1
10 mm

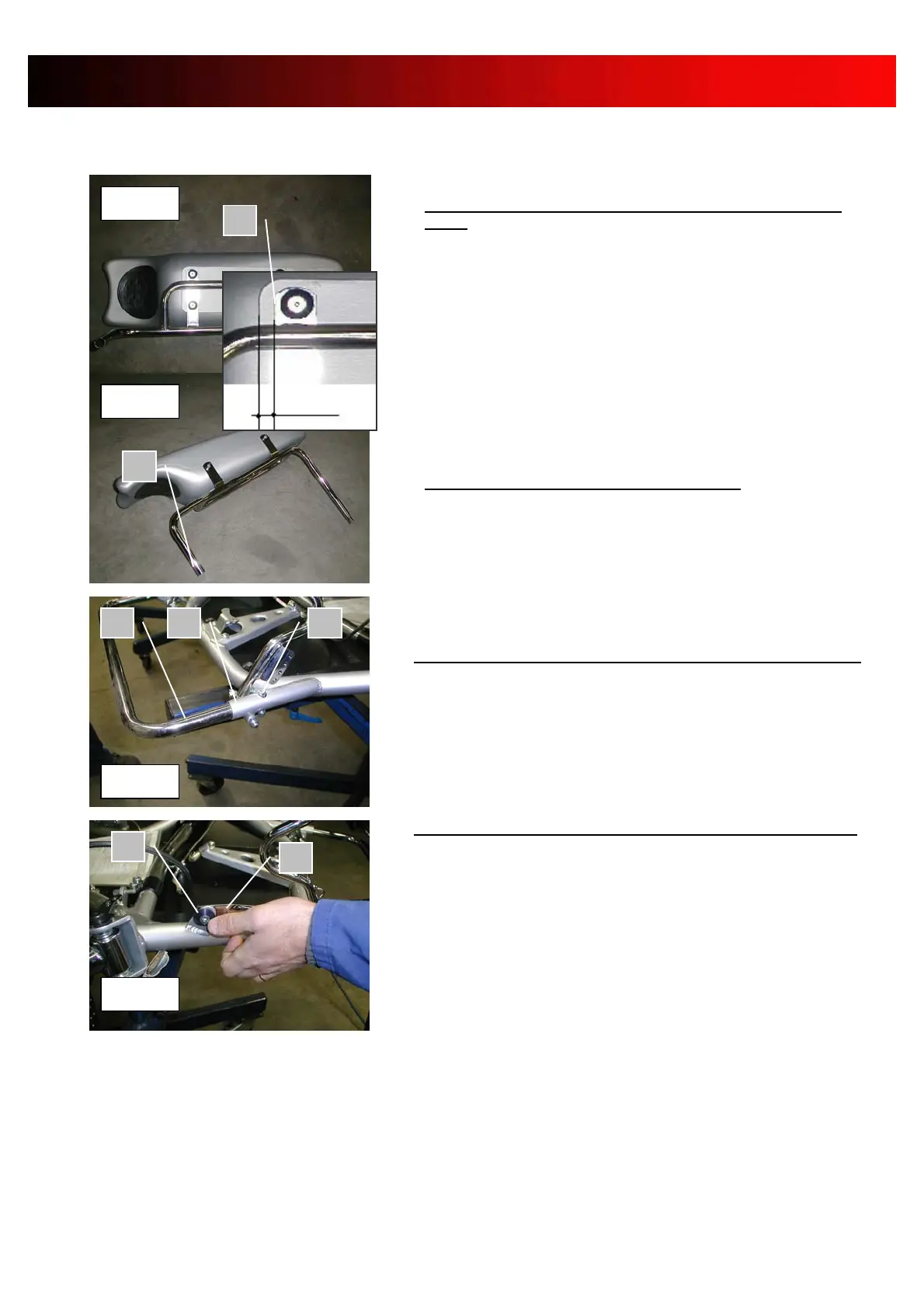

7-2 ASSEMBLY OF THE SIDE POD ON IT’S SUPPORT
(PIC 1)
Place the side pod on its support.
Adjust the distance of 10 mm (1) as shown in the
picture.
Mark the first point to be drilled.
Drill a hole , diameter 6.5 mm.
Place screw , washers and bolt!; tighten.
Drill 6.5 mm holes at the 5 other fixing points.
Place screw , washers and bolt!; tighten.
Repeat the operations for the other support.
7-3 ASSEMBLY ON THE CHASSIS (PIC 2)
Insert the flexible plastic sleeves in the frame.
Insert the ends of the support in the sleeves.
Tighten with screws and bolts through holes (2).
1
7-4 ASSEMBLY OF THE LOWER SPOILER SUPPORT (PIC 3)
Insert the support (3) in the frame (4).
Insert the two Chc screws in the holes (5).
Place the bolts and tighten.
PIC 3
PIC 2
PIC 1
3
4
2
5
7-5 ASSEMBLY OF THE UPPER SPOILER SUPPORT (PIC 4).
Place the ends of the support (6) as on the picture ( inside
the frame (7).
Insert the Fhc screws and washers (7).
Place the bolts and tighten.
PIC 4
7
6
