Components/Connections
24

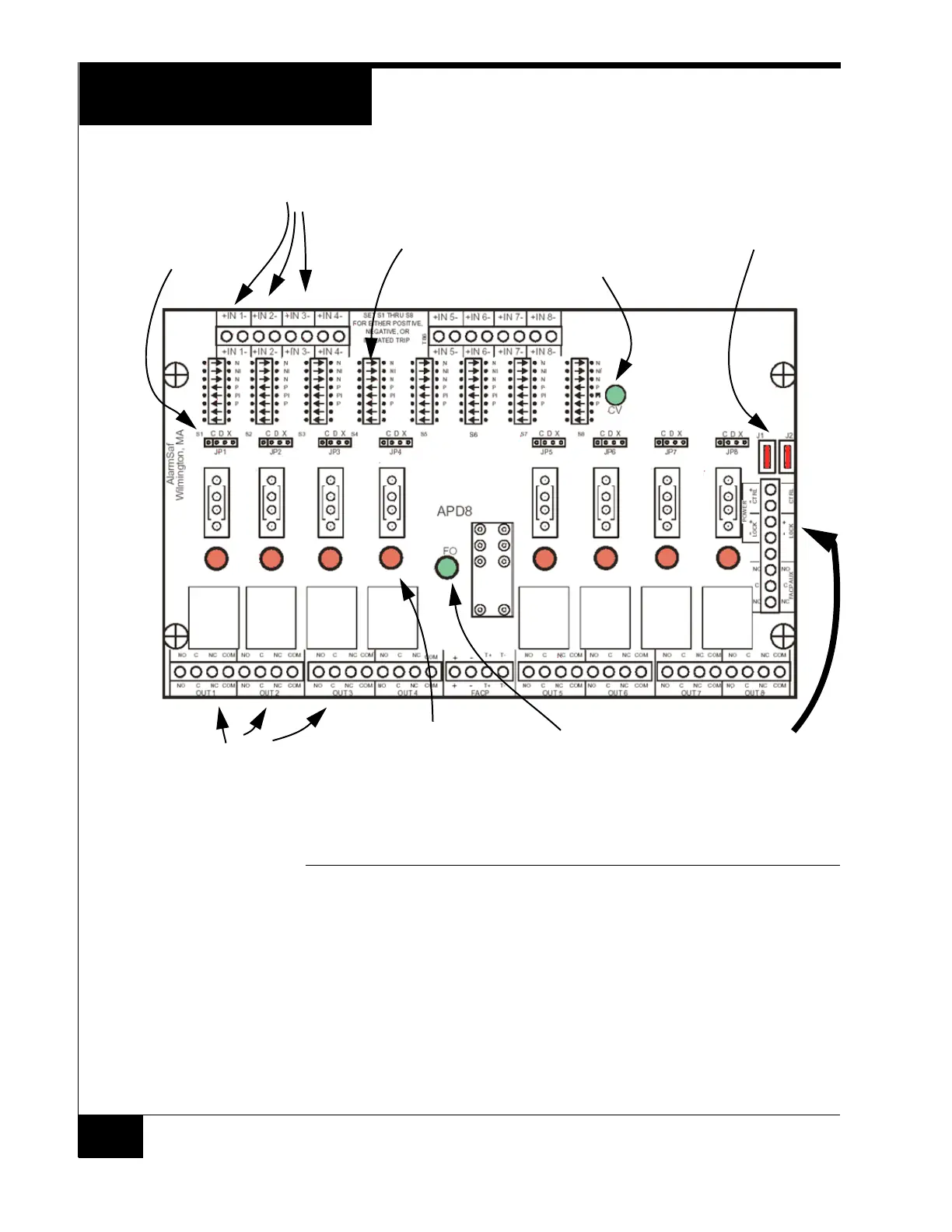

FIGURE 16. APD8 Layout
Input from ACM Relay
DIP Switch set for Negative Trip
Do not change
Power Jumpers
Do not change
Power Source
is present
CDX Jumpers for
Output Mode
Door Outputs
NO = Relay NO
C = Relay Common
NC = Relay NC
COM = Voltage Common
LED indicating
Output is active
LED indicating no
F/A when lit
Power IN
