Lock Power Variations
Normal Default Case (RM readers with wet sourced power)
1.
Verify the JPn jumper to be in the C position.
2.
Connect Lock+ to pin 9
3.
Connect Lock- to pin 10

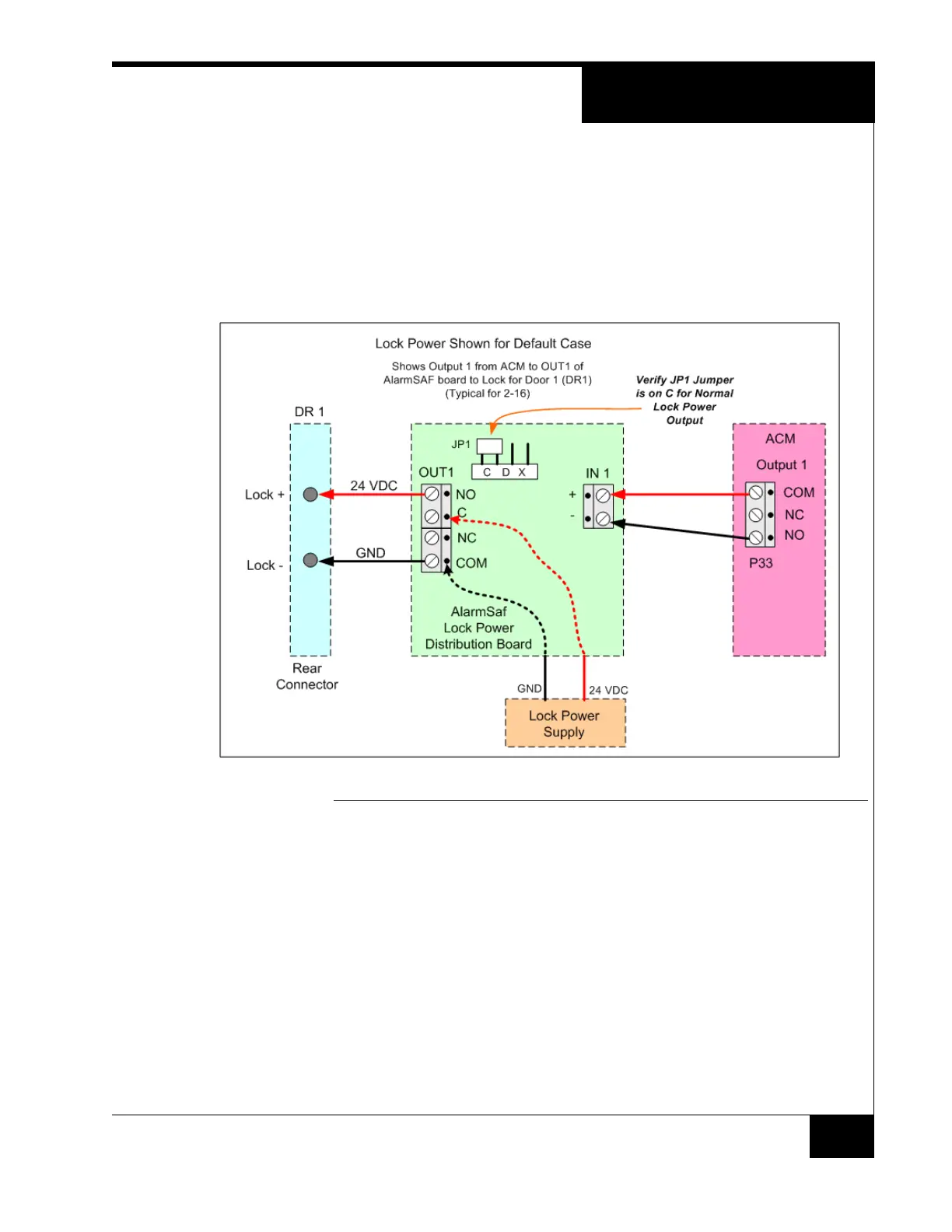

FIGURE 19. Sourced Lock Power
