Components/Connections
28
Default Sourced Wet with F/A
RM readers with sourced wet power gated by F/A
1. Wire the NO Fire Alarm (F/A) to the rear connector panel.
2. Verify the JPn jumper to be in the D position.
3. Connect Lock+ to pin 9
4. Connect Lock- to pin 10
When the F/A NO signal is true (shorted), all lock outputs that are in the D
position will have the lock power inhibited.

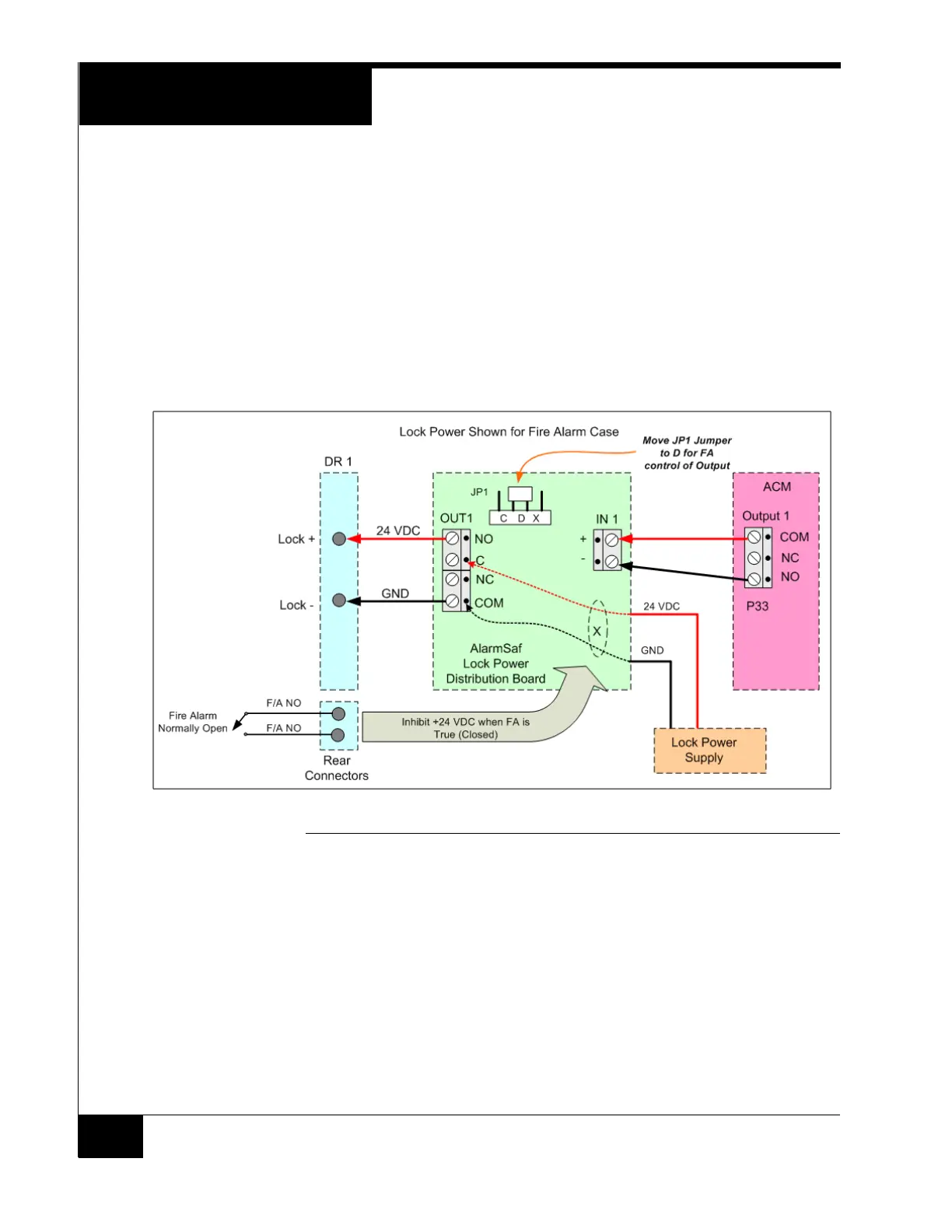

FIGURE 20. Lock Power - Fire Alarm Option
