E.M.P Systems only:

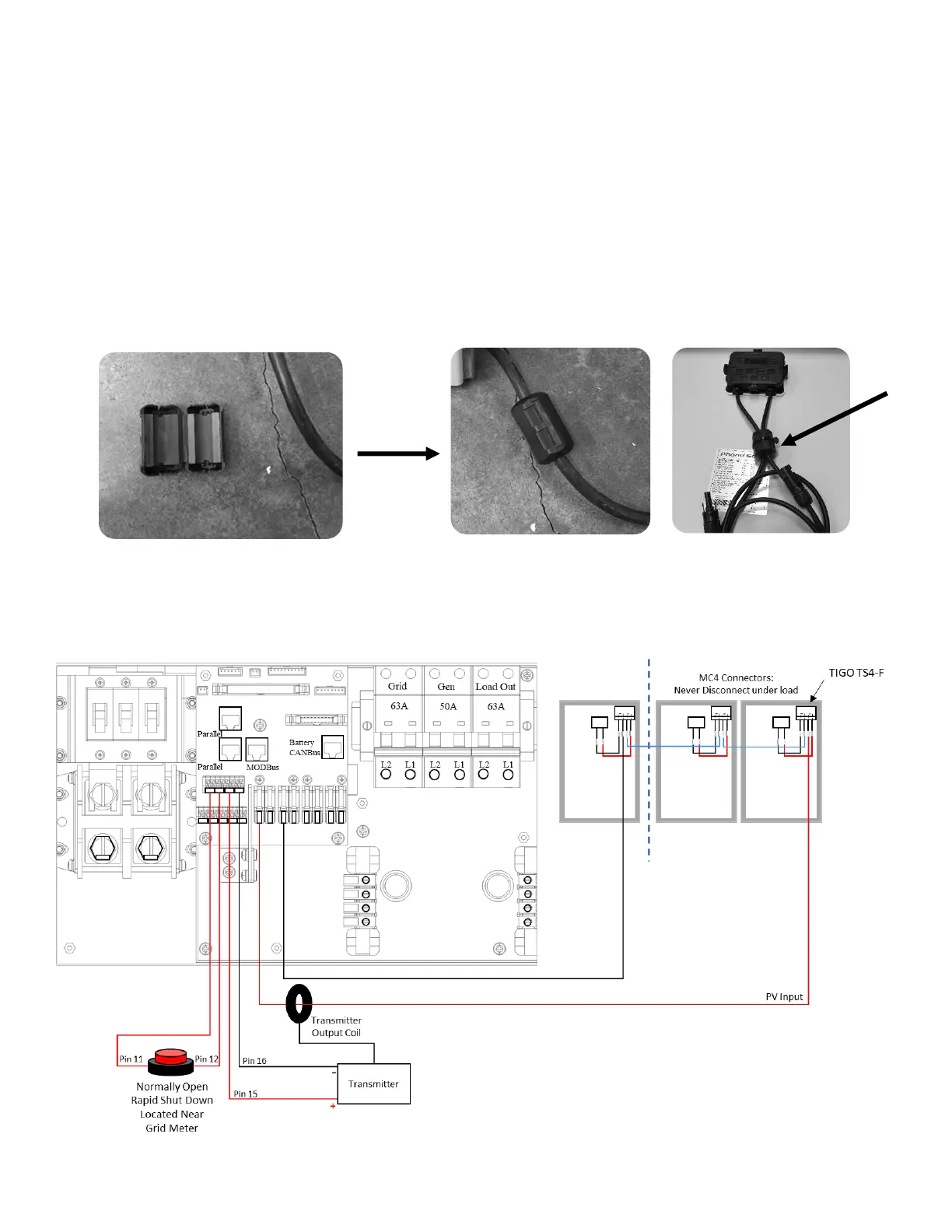

Suppressor installation
• If your system was purchased with Lightning / EMP Hardening, the vast majority of protection is in the
Sol-Ark. However, you also have EMP suppressors that get installed on the power cords of appliances
that are connected to the transfer switch. Although not critical, it is recommended they be installed as
close as possible to the appliance.
• You also have EMP suppressors that get installed on both solar panel wires with a zip tie. Closer to the
panel is better. If you purchased the panels from us, we already installed >150kV/m protection inside
the solar panels.
Emergency Stop Diagram (Only available on select hardware versions & Shown with TIGO TS4)
