SolarEdge StorEdge SE10K-RWS Installation Guide

5.

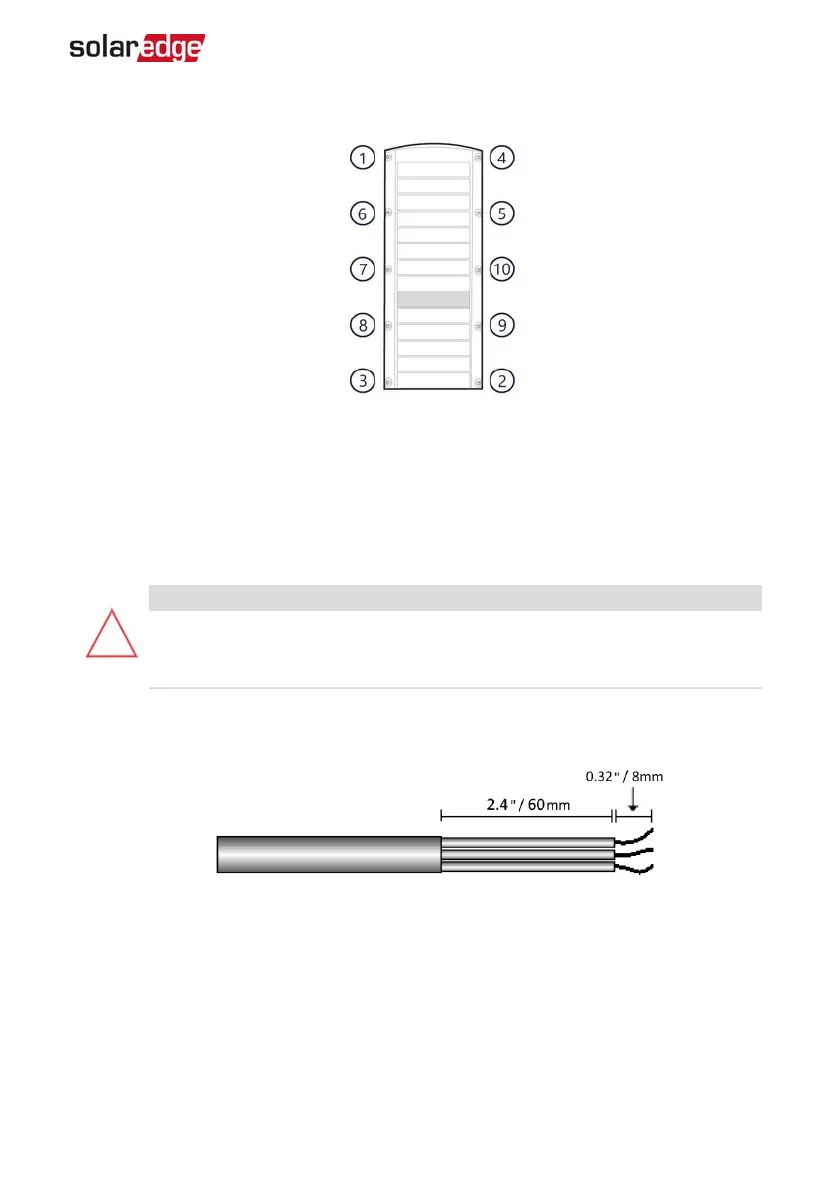

Release all bolts fully in the order, shown below.
6. Carefully remove the inverter cover.
Connecting the ACGrid
Use a five-wire cable. The maximum wire size for the input terminal blocks is 4 mm².
1. Turn OFF the AC circuit breaker.
2. Unscrew the ten Allen screws holding the inverter cover and remove the cover.
CAUTION!
When removing the cover, make sure not to damage internal components.
SolarEdge will not be held responsible for any components damaged as a
result of incautious cover removal.
3.
Strip 60 mm / 2.4'' of the external cable insulation and strip 8 mm / 0.32'' of the
internal wire insulation.
Figure 10: Insulation Stripping – AC Cable
Chapter 5: Connecting the Inverter 32
StorEdge Three Phase Inverter MAN-01-00648-1.3

SolarEdge StorEdge SE10K-RWS Specifications

General

Topology	Transformerless
Max Efficiency	98.3%
Dimensions	540 x 315 x 260 mm
Noise Level	< 50 dBA
Protection Rating	IP65
Rated AC Power	10000 W
AC Frequency	50/60 Hz
Maximum Efficiency	98.3%
Number of MPP Trackers	1
Warranty	12 years
AC Output Power	10000 W
Operating Temperature Range	-25°C to +60°C
AC Voltage	230 / 400 Vac
Max Input DC Voltage	480 V
Communication Interfaces	Ethernet, RS485, ZigBee (optional)
Max Charge/Discharge Current	25 A
Max Charge/Discharge Power	10000 W
Communication	Ethernet, RS485, ZigBee (optional)
