4.

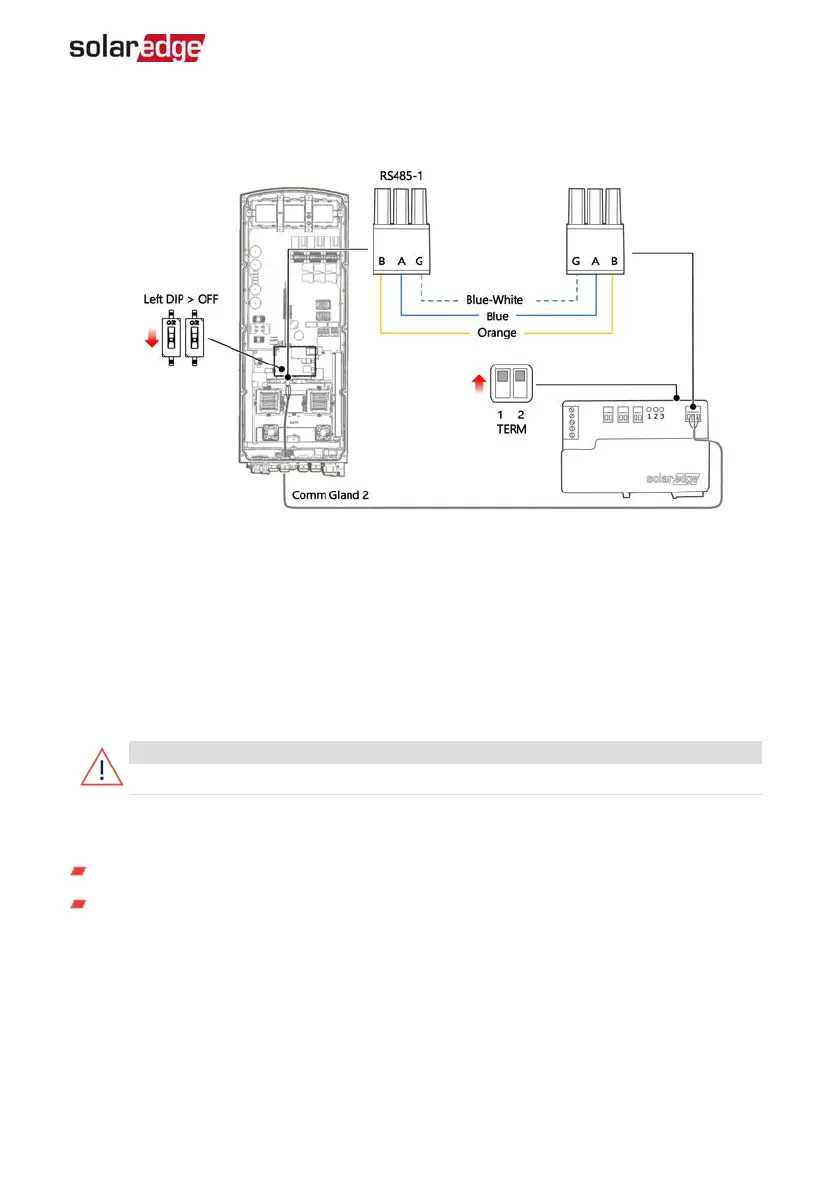

Insert the meter wires into the connector as shown below and tighten them with the
screws.
Figure 14: Meter Connection 2
5. Connect the connector back to the RS485-1 port.
6. Make sure the RS485-1 DIPswitch (the left switch) on the inverter's communication
board is OFF.
7. Terminate the Energy Meter by moving up the DIPswitches, as shown above.
Connecting the Battery
WARNING!
The battery must be powered off before and during wiring.
For connecting the battery to the inverter, use copper cables with the following
parameters:
Maximum length: 5m
Cross-section area: 35 or 50 mm
2
Connecting DCCables
1. Make sure the battery circuit breaker is OFF.
2. Make sure DCto the inverter is OFF.
3. Strip the required length of the battery's DC cables.
4. Crimp the supplied lugs on the power cables and tighten them with the heat shrinks.
Chapter 5: Connecting the Inverter 36
StorEdge Three Phase Inverter MAN-01-00648-1.3

SolarEdge StorEdge SE10K-RWS Specifications

General

Topology	Transformerless
Max Efficiency	98.3%
Dimensions	540 x 315 x 260 mm
Noise Level	< 50 dBA
Protection Rating	IP65
Rated AC Power	10000 W
AC Frequency	50/60 Hz
Maximum Efficiency	98.3%
Number of MPP Trackers	1
Warranty	12 years
AC Output Power	10000 W
Operating Temperature Range	-25°C to +60°C
AC Voltage	230 / 400 Vac
Max Input DC Voltage	480 V
Communication Interfaces	Ethernet, RS485, ZigBee (optional)
Max Charge/Discharge Current	25 A
Max Charge/Discharge Power	10000 W
Communication	Ethernet, RS485, ZigBee (optional)
